Original Design of PCBA scheme development circuit board for bus fan
Manufacturer
Manufacturer Product Number
XT56-24
Description
Design of PCBA scheme development circuit board for bus fan
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
Design of PCBA scheme development circuit board for bus fan
PRODUCI PARAMETERS
Applicable products: cooling fan
Suitable motor: 54 silicon steel sheet outer rotor motor
Power supply voltage: 24 V
Output power: max48w
Output current:Motor speed < 4000rpm
Motor control mode: single phase square wave
The number of pole pairs of the adaptive motor is 4 slots and 4 poles
Product performance: EMC test, over-current protection, over-voltage protection
model:XT56-24
Mechanical rigidity:rigidity
Number of layers:two-sided
base material:copper
Insulating material:Organic resin
Insulation thickness:Conventional board
Flame retardant properties:VO board
Processing technology:Electrolytic foil
Reinforcing material:Glass fiber cloth base
Insulating resin:Epoxy resin (EP)
Product nature:New products
Is cross border export exclusive for supply:no:Specifications:Cooling fan plate of bus fan

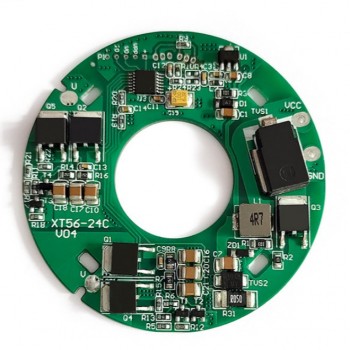

Actual image of the product
Advantages:
