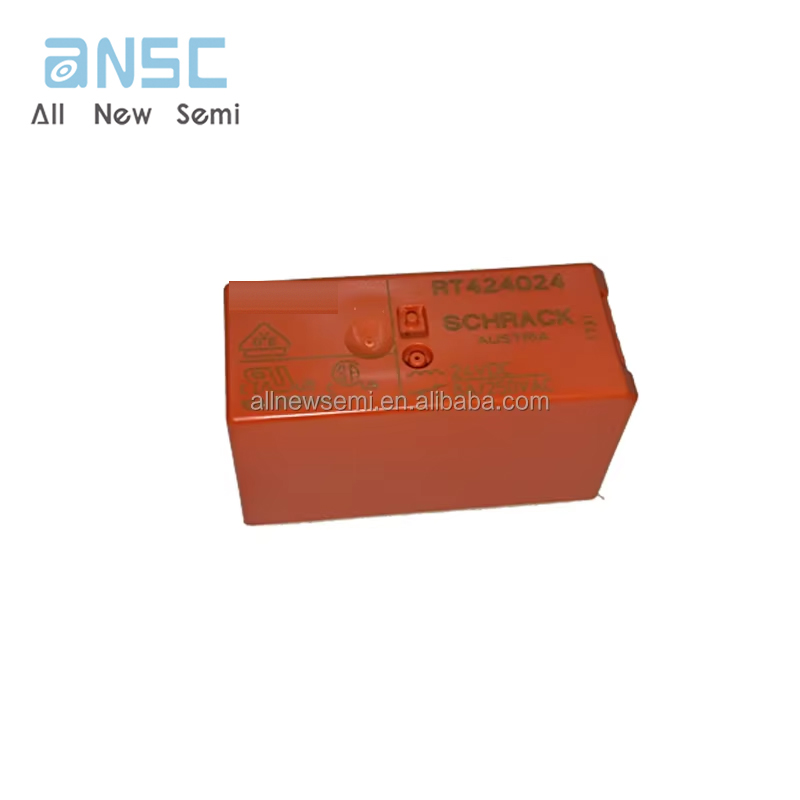

Image shown is a representation only.

Exact specifications should be obtained from the product data sheet.

Hot sale Original RT424024 Power RELAY GEN PURPOSE DPDT 8A 24V 400VAC - Max PC pins 16.8 VDC Silver-Nickel (AgNi) Through-holes

Manufacturer Product Number
RT424024
Description

Original RT424024 Power RELAY GEN PURPOSE DPDT 8A 24V 400VAC - Max PC pins 16.8 VDC Silver-Nickel (AgNi) Through-holes

Package Condition
box
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Power PCB Relay RT2 DC and AC (for global markets)

contacts
■ DC or AC coil
■ 5kV/10mm coil-contact, reinforced insulation
■ Ambient temperature up to 85°C
■ WG version: product in accordance to IEC60335-1
■ Reflow version: for THR (Through-Hole Reflow) soldering process
Typical applications
Boiler control, timers, garage door control, POS automation, interface
modules.

Product Description

Type Description
ANSC PART# ANSC -RT424024
Category Relays
Power Relays, Over 2 Amps
Mfr Original
Series RT2, SCHRACK
Packaging Box
Part Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Load - Max Switching 3200VA
Coil Current 14.2 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 8 ms
Release Time 6 ms
Operating Temperature -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Approval Agency CQC, CSA, cURus, VDE
Relay Type General Purpose
Grade -
Qualification -
Coil Resistance 1.44 kOhms
Base Product Number RT4240

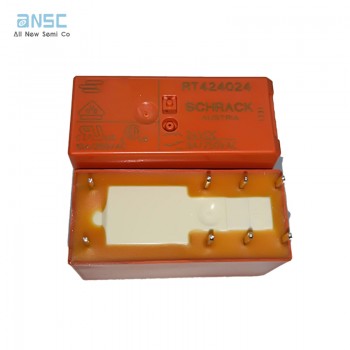

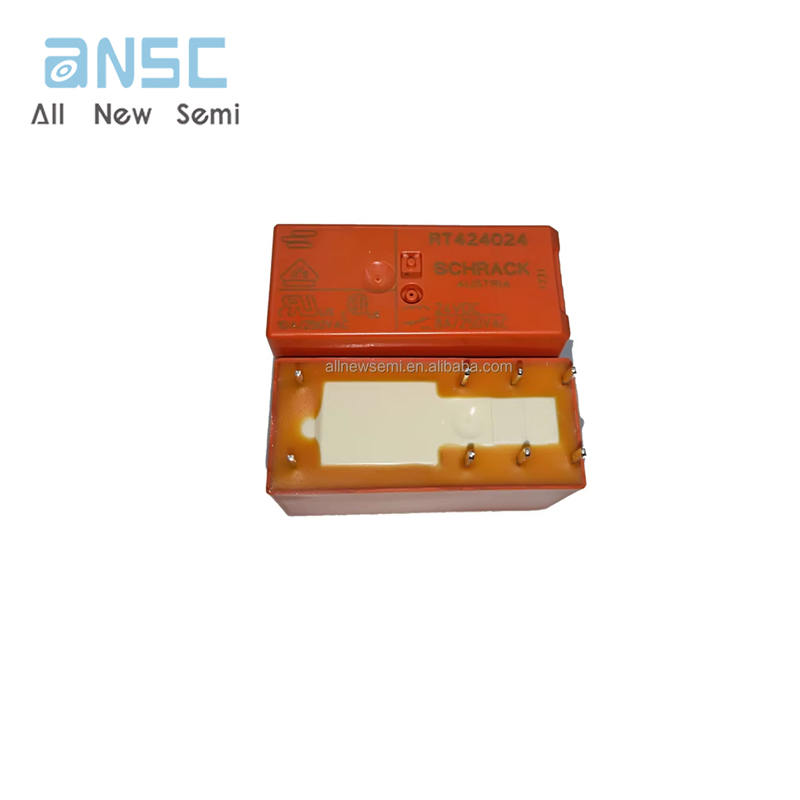

Actual image of the product

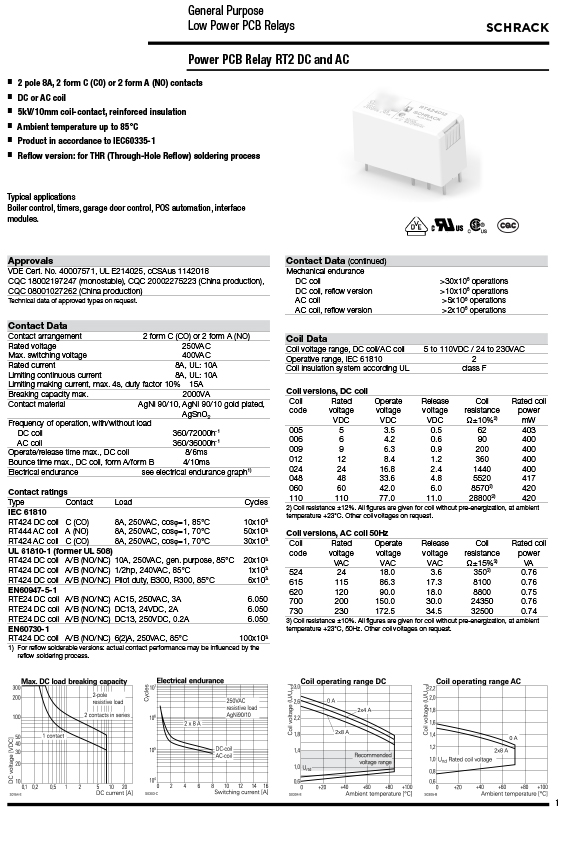

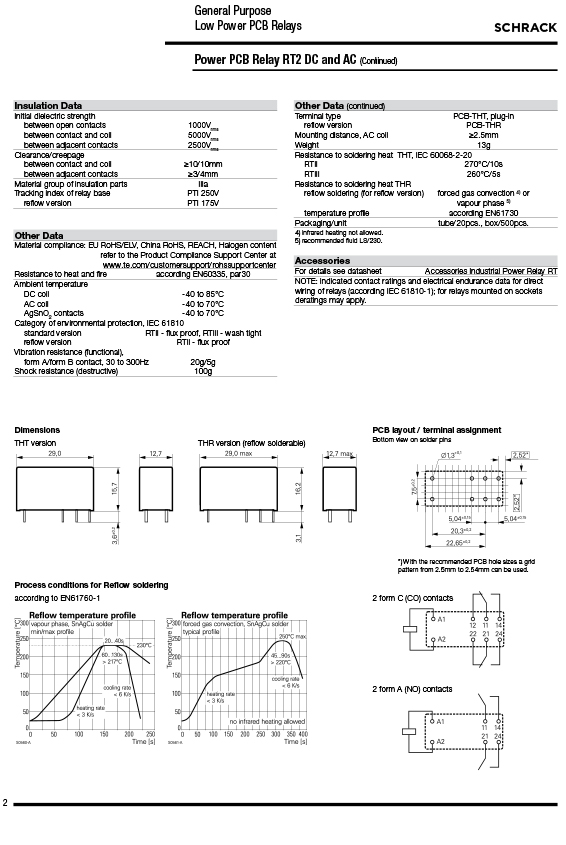

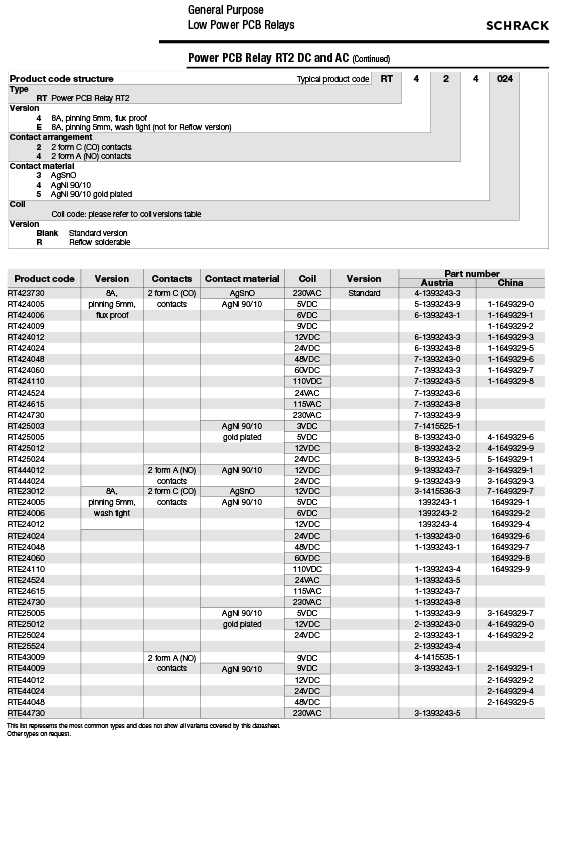

Product datasheet

For more information, please download
