Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original AQV252GAZ Relays SSR RELAY SPST-NO 2.5A 0-60V Solid State SPST-NO (1 Form A) 6-SMD
Manufacturer
Manufacturer Product Number
AQV252GAZ
Description
Original AQV252GAZ Relays SSR RELAY SPST-NO 2.5A 0-60V Solid State SPST-NO (1 Form A) 6-SMD
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Description
The Panasonic AQV252GAZ is a solid state relay (SSR) with a 50mA 1.5V DC-IN and 2.5A 60V AC/DC-OUT. It is a 6-pin PDIP SMD T/R package.
Product Features
• 50mA 1.5V DC-IN
• 2.5A 60V AC/DC-OUT
• 6-pin PDIP SMD T/R package
• Low power consumption
• High switching speed
• High reliability
• Low noise
• Low EMI
Product Applications
The Panasonic AQV252GAZ is suitable for a wide range of applications, including industrial automation, home appliances, lighting control, and motor control. It is also suitable for use in medical equipment, automotive electronics, and other applications where high reliability and low noise are required.
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - AQV252GAZ |
|
Category |
Relays Solid State Relays (SSR) |
|
Mfr |
Panasonic Electric Works |
|
Series |
PhotoMOS™ AQV |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Mounting Type |
Surface Mount |
|
Circuit |
SPST-NO (1 Form A) |
|
Output Type |
AC, DC |
|
Voltage - Input |
1.14VDC |
|
Voltage - Load |
0 V ~ 60 V |
|
Load Current |
2.5 A |
|
On-State Resistance (Max) |
120 mOhms |
|
Termination Style |
Gull Wing |
|
Operating Temperature |
-40°C ~ 85°C |
|
Package / Case |
6-SMD (0.300", 7.62mm) |
|
Supplier Device Package |
6-SMD |
|
Approval Agency |
UR |
|
Grade |
- |
|
Qualification |
- |
|
Base Product Number |
AQV252 |

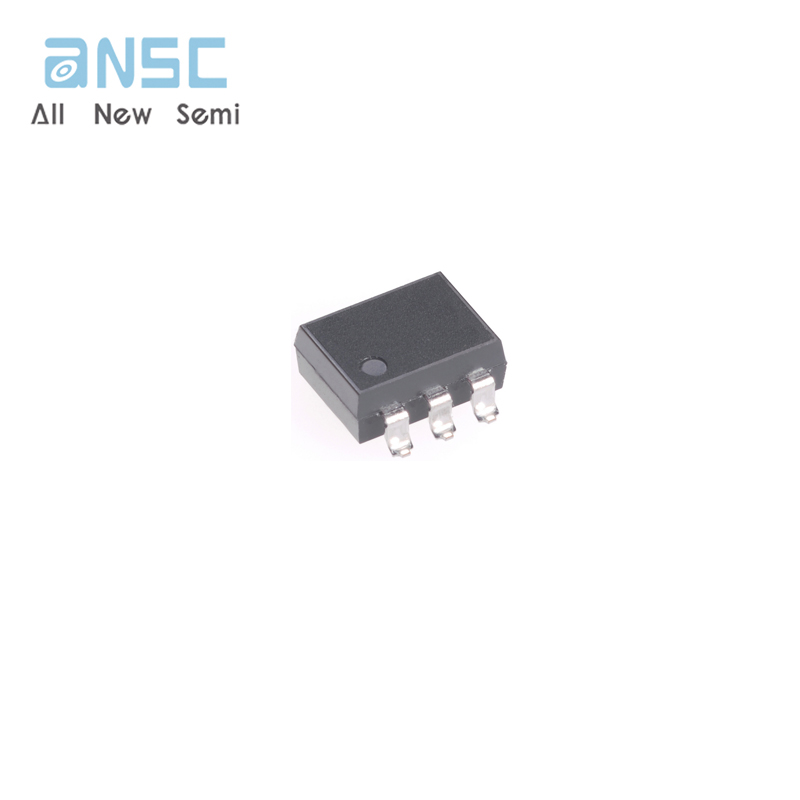

Actual image of the product

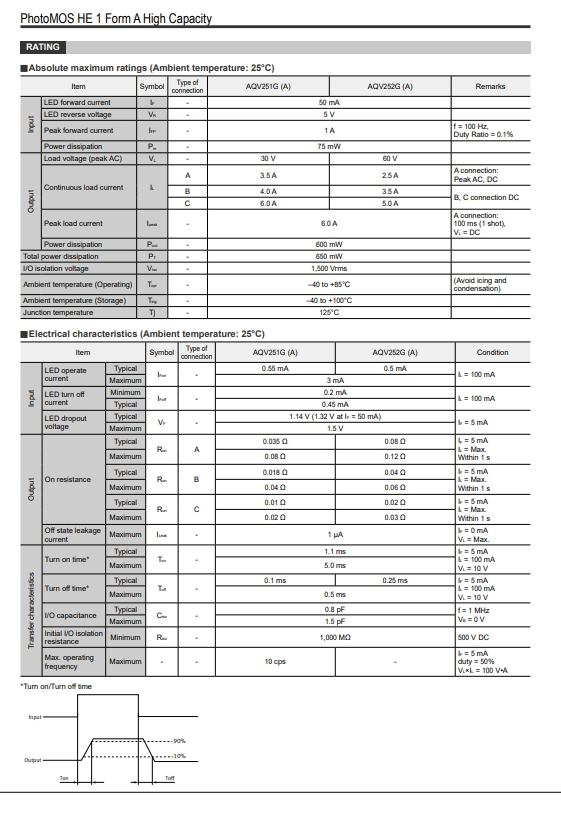

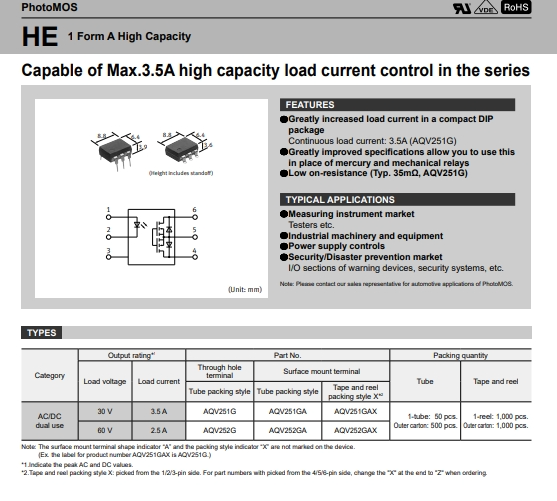

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
