Hot-selling and scarce ST2-DC12V-F polarized power relays DIP spot stock
Manufacturer Product Number
ST2-DC12V-F
Description
ST2-DC12V-F polarized power relays DIP spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ST2-DC12V-F |
| Category | Relays |
| Power Relays, Over 2 Amps | |
| Mfr | - |
| Series | ST |
| Packaging | Tray |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 380VAC, 250VDC - Max |
| Load - Max Switching | 3040VA, 2000W |
| Coil Current | 20 mA |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 60°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CSA, UR, VDE |
| Relay Type | General Purpose |
| Coil Resistance | 600 Ohms |
| Base Product Number | ST2-DC |

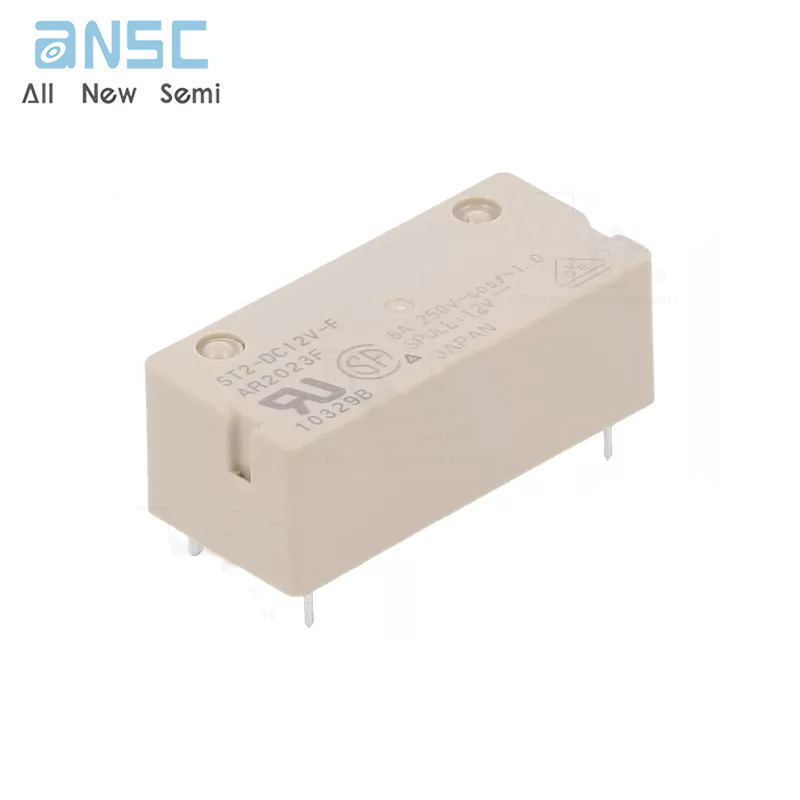

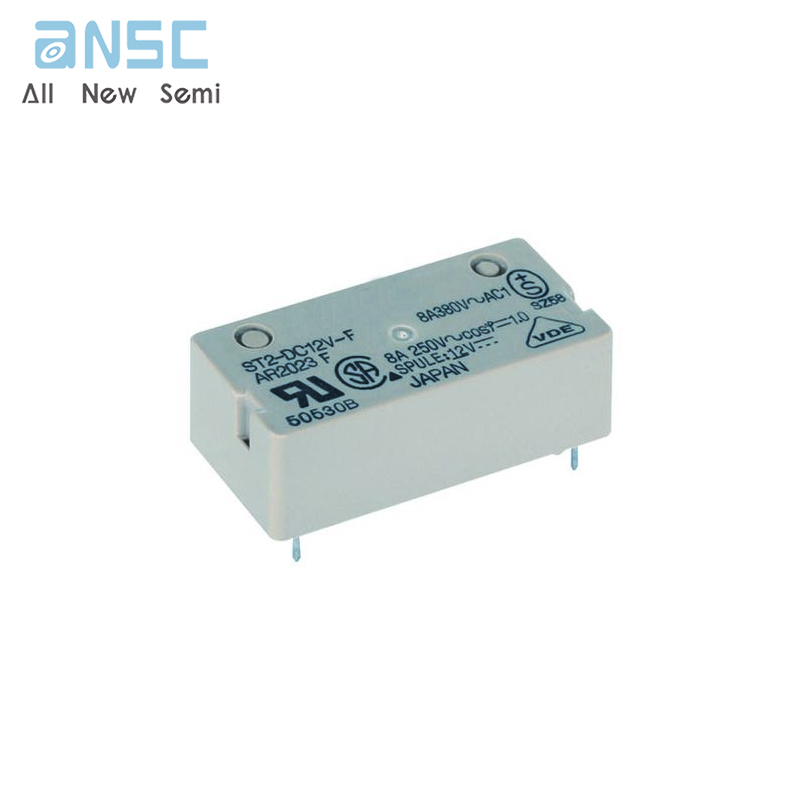

Product Photos
For more product information, please download the PDF
