New JW1FSN-DC12V In stock Best price ic chips Hot sale JW1FSN-DC12V original IC Electronic component
Manufacturer Product Number
JW1FSN-DC12V
Description
JW1FSN-DC12V Power/Signal Relay
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| FEATURES • Miniature package with universal terminal footprint • High dielectric withstanding for transient protection: 10,000 V surge in µs between coil and contact • Sealed construction • Class B coil insulation types available • TV rated (TV-5) types available (only for 1 Form A type) • VDE, TÜV, SEMKO, SEV, FIMKO, TV-5 also approved • Sockets are available. TYPICAL APPLICATIONS 1. Home appliances TV sets, VCR, Microwave ovens 2. Office machines Photocopiers, Vending machines 3. Industrial equipment NC machines, Robots, Temperature controllers |
Product Description
| Type# | Description |
| PART# | JW1FSN-DC12V |
| Category | Relays |
| Power Relays, Over 2 Amps | |
| Mfr | Original |
| Series | JW |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Load - Max Switching | 2500VA, 300W |
| Coil Current | 44 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class E |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 60°C |
| Contact Material | Silver Alloy |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 270 Ohms |
| Base Product Number | JW1FS |

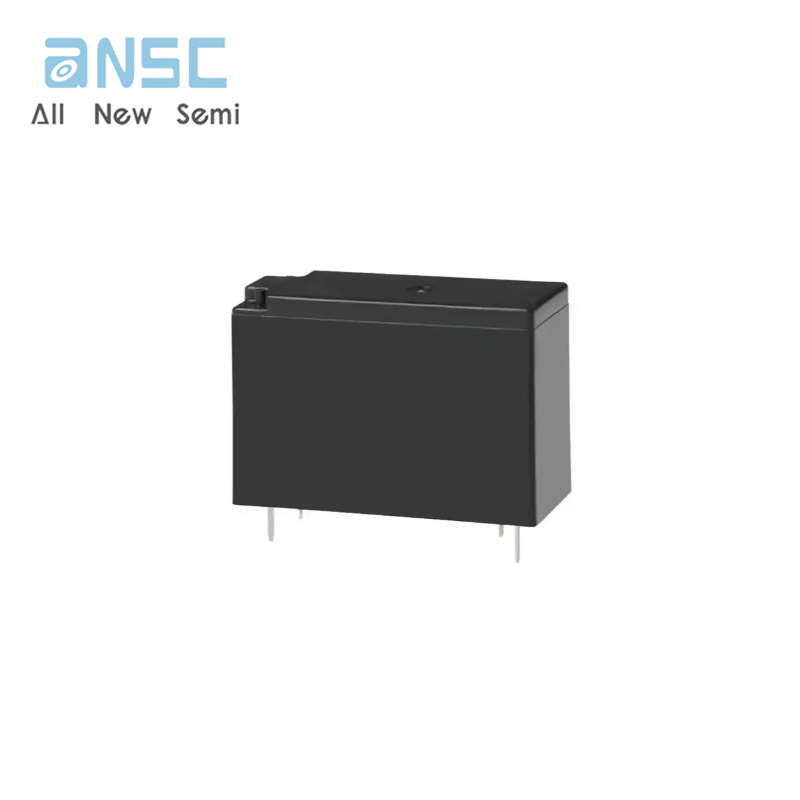

Actual image of the product
