Hot sale Original RJR24FW253M Resistors Trimmer Cermet 0.5W 25000ohm 10% +/-Tol 100ppm/Cel 25 Turn(s)
Manufacturer Product Number
RJR24FW253M
Description
RJR24FW253M Resistors Trimmer Cermet 0.5W 25000ohm 10% +/-Tol 100ppm/Cel 25 Turn(s) 3819 3/8 INCH SQUARE 3 PINS
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description: The RJR24FW253M is a high-reliability, through-hole mounted trimmer potentiometer designed . This component is part of the Trimpot series, known for its precision and durability. The trimmer potentiometer is constructed with a cermet resistive material, ensuring stable and consistent performance over a wide range of temperatures. Features: - Actuator Orientation: Vertical actuator orientation for easy adjustment. - Actuator Type: Screw-type actuator for precise control. - Adjustment Type: Top adjustment for convenient access. - Base Part Number: RJR24, indicating it is part of a larger family of trimmer potentiometers. - Construction: Trimmer pot construction provides a compact and reliable design. - ECCN Code & HTS Code: Classified under EAR99 and 8533.40.80.50, respectively, for export control purposes. - JESD-609 Code: e0, indicating compliance with specific industry standards. - Lead Diameter & Length: 0.51 mm and 6.4 mm, respectively, ensuring secure connections. - Max & Min Operating Temperature: 150°C and -55°C, respectively, covering a broad operating range. - Military Standard: MIL-PRF-39035, ensuring compliance with military specifications. - Moisture Sensitivity Level (MSL): 1 (Unlimited), indicating no moisture sensitivity concerns. - Mount & Mounting Type: Through-hole mount with chassis mounting type for secure installation. - Number of Terminations & Turns: 3 terminals and 25 turns, respectively, providing ample adjustment options. - Packaging: Tube packaging for easy storage and handling. - Part Status: Active, indicating that this product is currently available for purchase. - Pbfree Code: No Pbfree code indicates that this product contains lead. - Power & Rated Power Dissipation: 0.5W (1/2W), ensuring safe operation within specified power limits. - Rated Temperature: 85°C, defining the maximum temperature at which it can operate safely. - Reach Compliance Code: Not compliant with Reach regulations. - Resistance & Resistive Material: 25kOhm with cermet resistive material for stable resistance values. - Resistor Type: Trimmer resistor type allowing for adjustable resistance levels. - RoHS Status: Non-RoHS compliant due to the presence of lead in its construction. - Rotation Angle: 9000 degrees of rotation providing extensive adjustment capabilities. - Series & Size / Dimension: Part of the Trimpot series with dimensions 0.375 x 0.190 Face x 0.395 H (9.53mm x 4.83mm x 10.03mm). - Size Code: 3819, identifying its specific size within the product family. - Temperature Coefficient: ±100ppm/°C ensuring minimal drift over temperature changes. - Terminal Finish & Shape: Tin/lead (Sn/Pb) finish with wire terminal shape for secure connections. - Termination Style & Tolerance: PC pins termination style with ±10% tolerance for precise adjustments. Applications: 1. Primary Applications: - Audio equipment (amplifiers, mixers) - Medical devices (surgical instruments) - Industrial control systems (temperature control circuits) Secondary Applications: Automotive electronics (sensors, gauges) Aerospace electronics (instrumentation systems) Consumer electronics (volume controls) |
Product Description
| Type | Description |
| ANSC PART# | ANSC -RJR24FW253M |
| Ihs Manufacturer | Original |
| Factory Lead Time | 10 Weeks |
| Samacsys Manufacturer | / |
| Actuator Orientation | VERTICAL |
| Actuator Type | SCREW |
| Construction | Sealed |
| Ganging Number | 1 |
| JESD-609 Code | e0 |
| Lead Diameter | 0.51 mm |
| Lead Length | 6.4 mm |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Terminals | 3 |
| Number of Turns | 25 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -55 °C |
| Package Height | 10.03 mm |
| Package Length | 9.53 mm |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | Radial |
| Package Width | 4.83 mm |
| Packing Method | TUBE |
| Rated Power Dissipation (P) | 0.5 W |
| Rated Temperature | 85 °C |
| Reference Standard | MIL-PRF-39035 |
| Resistance | 25000 Ω |
| Resistance Law | LINEAR |
| Resistor Type | TRIMMER |
| Rotational Angle | 9000 deg |
| Surface Mount | NO |
| Technology | CERMET |
| Temperature Coefficient | 100 ppm/°C |
| Terminal Finish | TIN LEAD |
| Terminal Shape | WIRE |
| Tolerance | 10% |
| Working Voltage | 300 V |

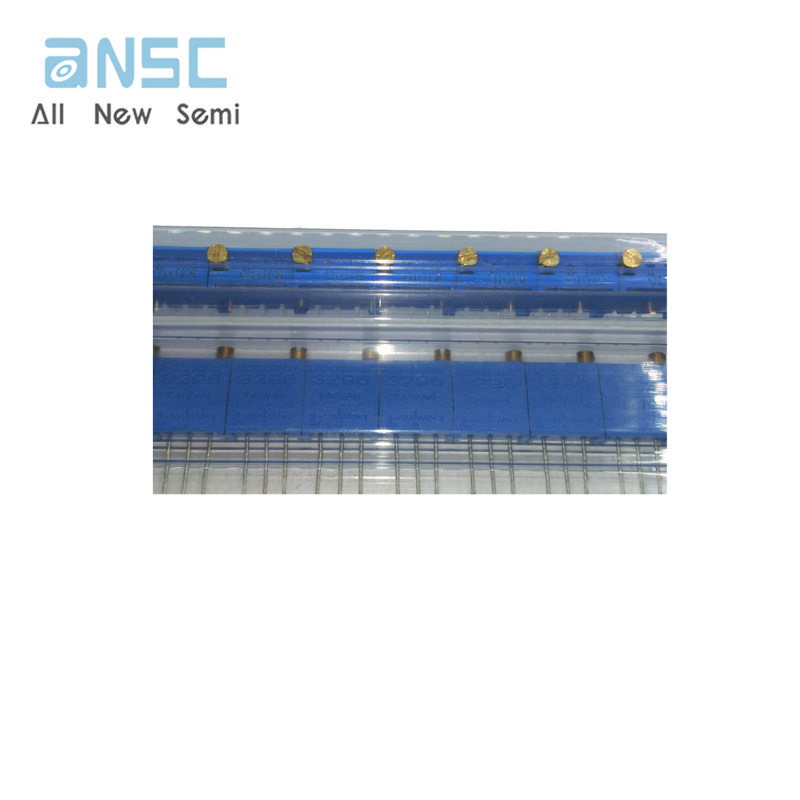

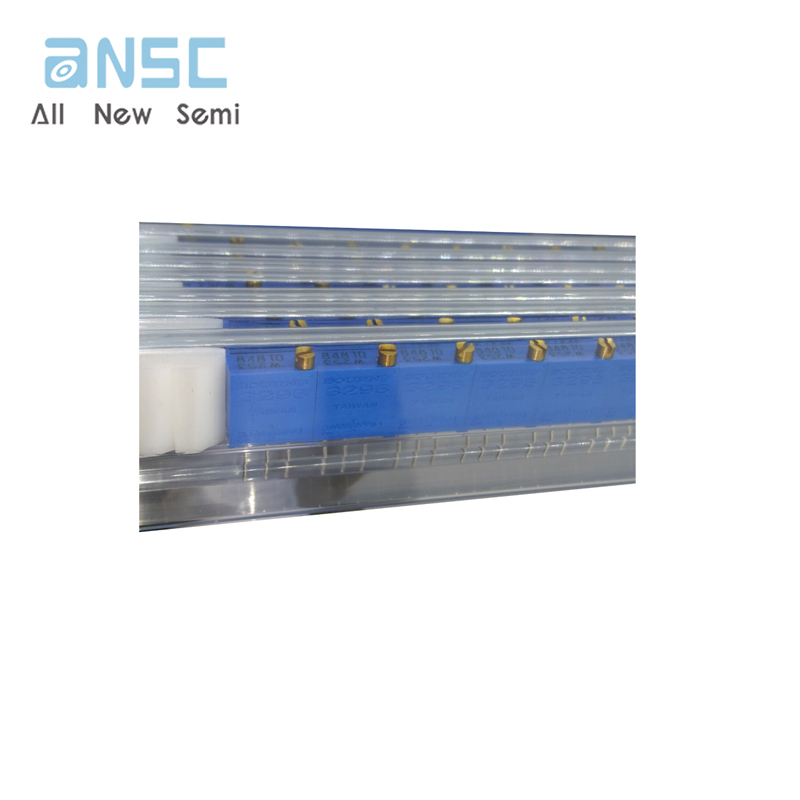

Actual image of the product

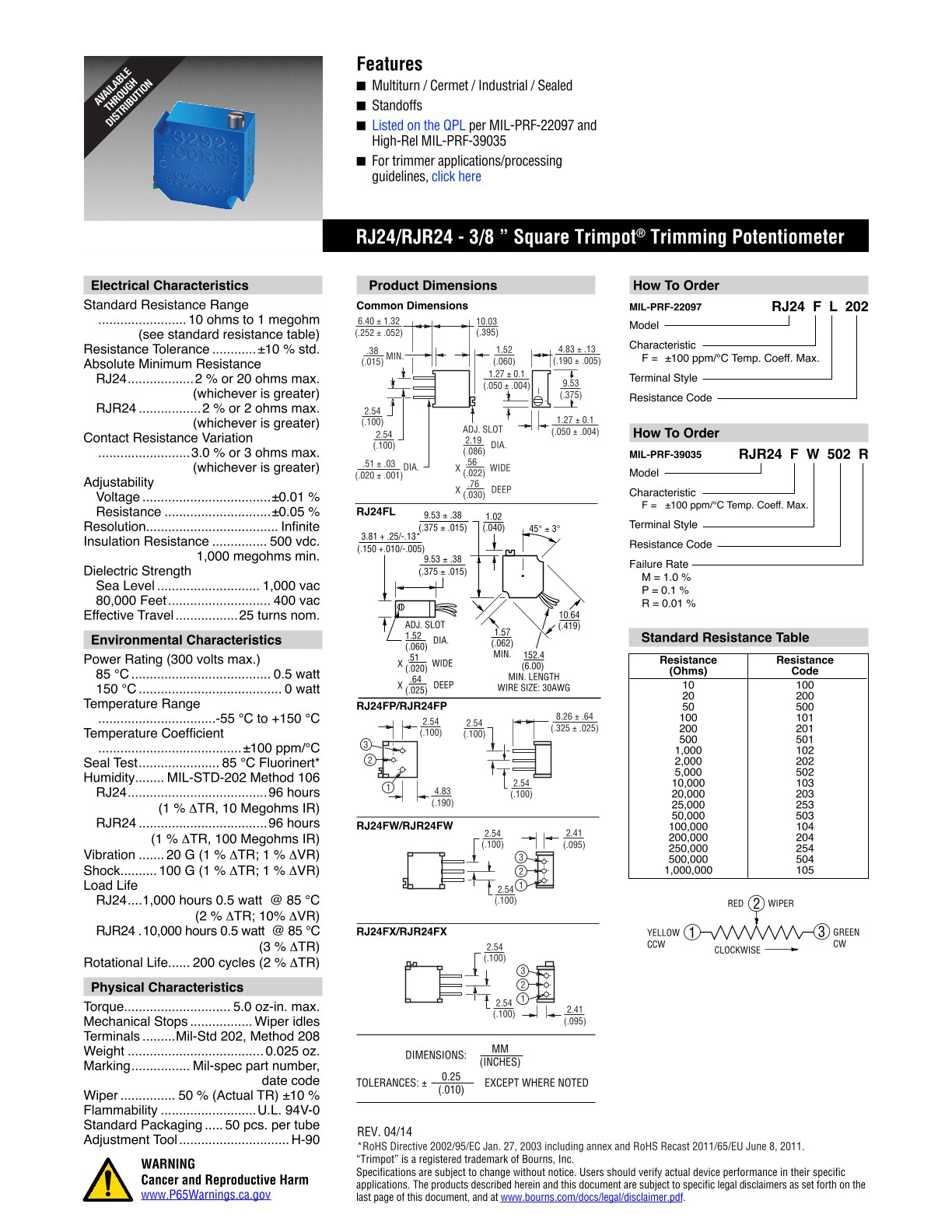

Product datasheet
