Hot sale Original RJR24FW254M Trimmer, Cermet, 0.5W, 250000ohm, 10% +/-Tol, -100,100ppm/Cel, 25 Turn(s), 3819, 3/8 INCH, SQUARE
Manufacturer Product Number
RJR24FW254M
Description
RJR24FW254M Trimmer, Cermet, 0.5W, 250000ohm, 10% +/-Tol, -100,100ppm/Cel, 25 Turn(s), 3819, 3/8 INCH, SQUARE, 3 PINS
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description: The RJR24FW254M is a high-precision, sealed trimpot (trimmer potentiometer) designed . This component is part of the Trimpot? RJ24/RJR24 series, known for its reliability and performance in various electronic applications. The RJR24FW254M features a rectangular shape with dimensions of 9.53mm x 4.83mm x 10.03mm, making it suitable for compact designs. Features: - High Precision: The trimpot offers a tolerance of ±10%, ensuring accurate resistance values. - Sealed Construction: The RJR24FW254M is sealed to protect against environmental factors, making it ideal for harsh conditions. - Wide Rotation Angle: With a rotation angle of 9000 degrees, this trimpot provides fine-tuning capabilities. - High Power Dissipation: Rated at 0.5W, it can handle moderate power levels without overheating. - Cermet Resistive Material: The use of cermet resistive material ensures stable performance over time. - Compliance with Military Standards: Meets MIL-R-22097 and MIL-R-39035 standards for reliability and performance in military applications. Applications: 1. Primary Applications: - Audio Equipment: Used in audio circuits for volume control and tone adjustment. - Medical Devices: Employed in medical equipment for precise control over various functions. - Industrial Controls: Integrated into industrial control systems for precise tuning of parameters. Secondary Applications: Automotive Systems: Used in automotive electronics for adjusting sensitivity levels. Aerospace Systems: Suitable for aerospace applications where reliability and precision are crucial. Consumer Electronics: Found in consumer electronics such as gaming consoles and home appliances. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -RJR24FW254M |
| Ihs Manufacturer | Original |
| Factory Lead Time | 10 Weeks |
| Actuator Orientation | VERTICAL |
| Actuator Type | SCREW |
| Construction | Sealed |
| Ganging Number | 1 |
| JESD-609 Code | e0 |
| Lead Diameter | 0.51 mm |
| Lead Length | 6.4 mm |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Terminals | 3 |
| Number of Turns | 25 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -55 °C |
| Package Height | 10.03 mm |
| Package Length | 9.53 mm |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | Radial |
| Package Width | 4.83 mm |
| Packing Method | TUBE |
| Rated Power Dissipation (P) | 0.5 W |
| Rated Temperature | 85 °C |
| Reference Standard | MIL-PRF-39035 |
| Resistance | 250000 Ω |
| Resistance Law | LINEAR |
| Resistor Type | TRIMMER |
| Rotational Angle | 9000 deg |
| Surface Mount | NO |
| Technology | CERMET |
| Temperature Coefficient | 100 ppm/°C |
| Terminal Finish | TIN LEAD |
| Terminal Shape | WIRE |
| Tolerance | 10% |
| Working Voltage | 300 V |

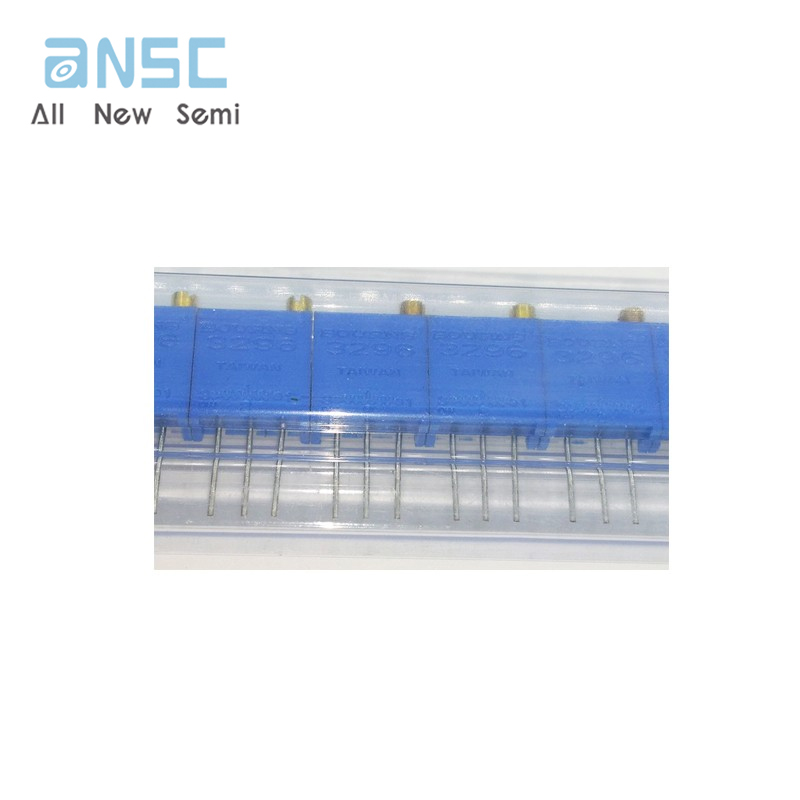

Actual image of the product

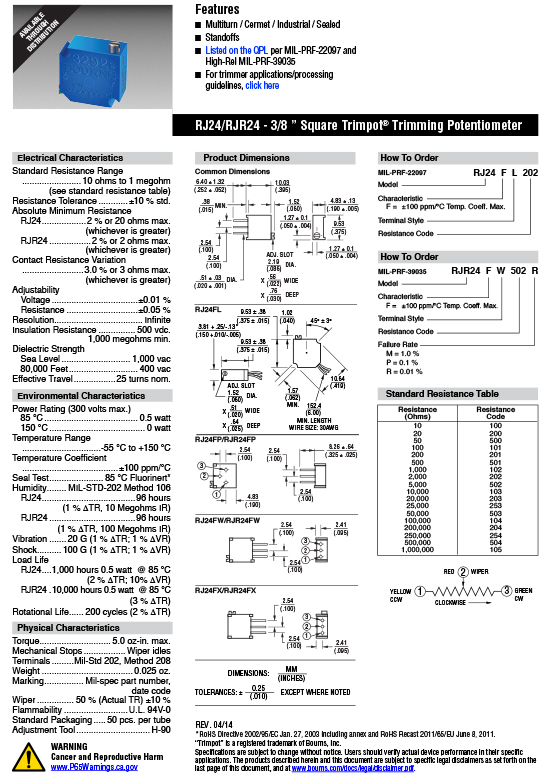

Product datasheet
For more information, please download
