Hot sale Original MCT06030C1782FP500 Resistor 17.8 kOhms ±1% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) Anti-Sulfur Thin Film

Product Description

The MCT06030C1782FP500 is a high-reliability, laser-trimmable chip resistor designed for surface mount applications. Manufactured by Vishay Beyschlag, this resistor is part of the MCT series, known for its professional-grade performance and reliability. With a rated AC voltage of 75V and a maximum power dissipation of 125mW, it is suitable for a wide range of electronic circuits requiring precise resistance values.

Product Features

· Laser Trimmable: Allows for precise resistance value adjustments post-assembly.

· Anti-Sulfur: Provides protection against sulfur contamination, ensuring long-term reliability.

· Lead-Free: Compliant with lead-free standards, making it suitable for RoHS3 compliant applications.

· Surface Mount: Designed for easy integration into modern PCBs using surface mount technology.

· High Operating Temperature Range: Operates between -55°C and 155°C, offering flexibility in various environmental conditions.

· Thin Film Composition: Ensures high precision and stability in resistance values.

· Tin Contact Plating: Provides reliable electrical connections.

Product Applications

Primary Applications:

· Automotive Electronics: Due to its high operating temperature range and resistance to environmental factors, it is ideal for automotive systems.

· Industrial Control Systems: Used in industrial control systems where reliability and precision are crucial.

· Medical Devices: Suitable for medical devices requiring precise resistance values and high reliability.

Secondary Applications:

· Consumer Electronics: Can be used in consumer electronics where high reliability is necessary but not the primary focus.

· Aerospace Applications: Although not radiation hardened, it can still be used in aerospace applications where its other features outweigh the need for radiation hardening.

Embedded Modules

The MCT06030C1782FP500 is commonly used in various embedded modules due to its compact size and high reliability:

· Microcontroller Boards: Often used on microcontroller boards like Arduino or Raspberry Pi for precise voltage regulation.

· Sensor Modules: Integrated into sensor modules for accurate signal conditioning.

· Power Supply Modules: Used in power supply modules to ensure stable voltage output.

In summary, the MCT06030C1782FP500 is a versatile chip resistor designed for high-reliability applications across various industries. Its laser-trimmable feature, anti-sulfur protection, and lead-free composition make it an excellent choice for modern electronic designs requiring precise resistance values and robust performance.

Product Description

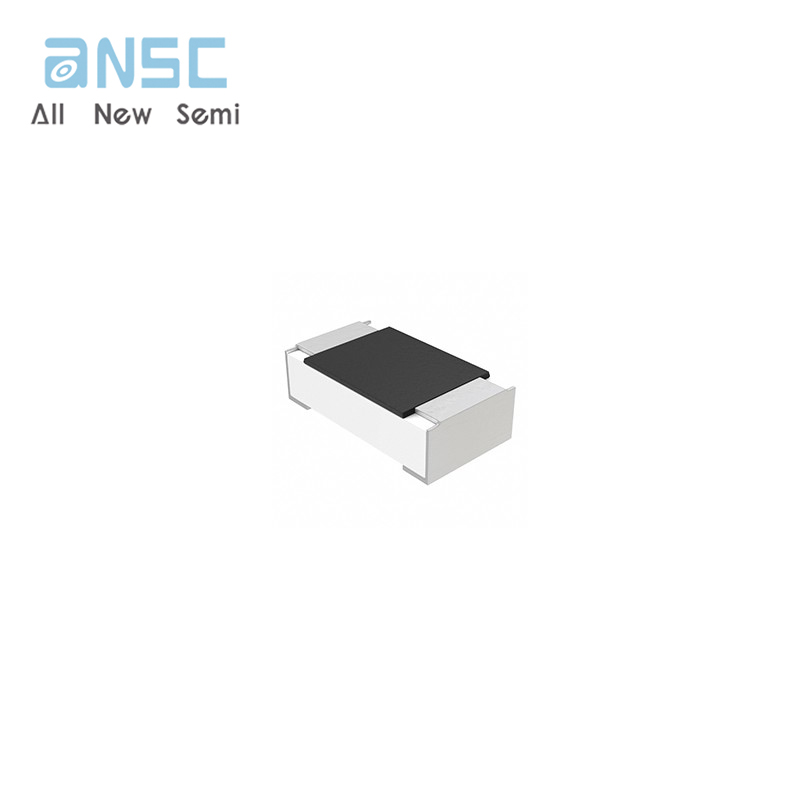

Actual image of the product

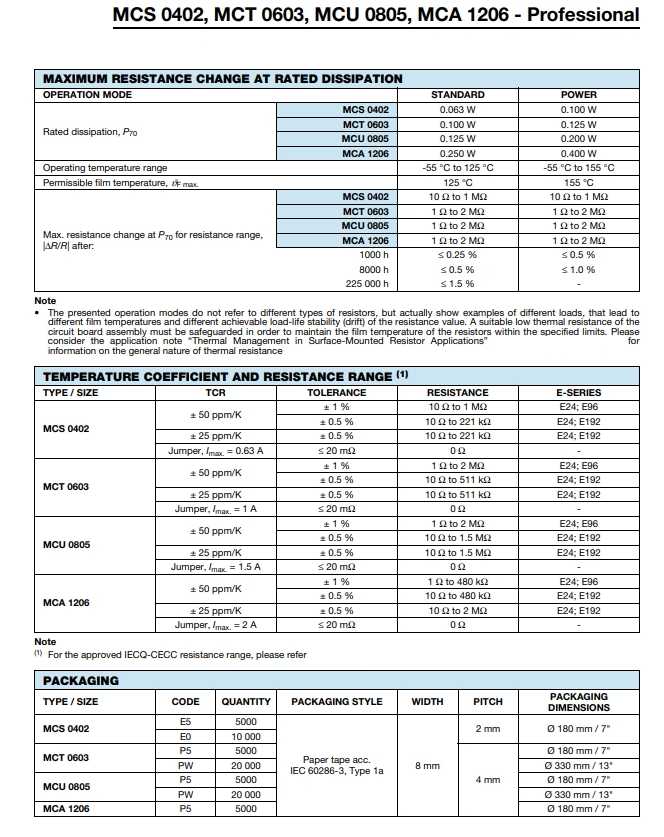

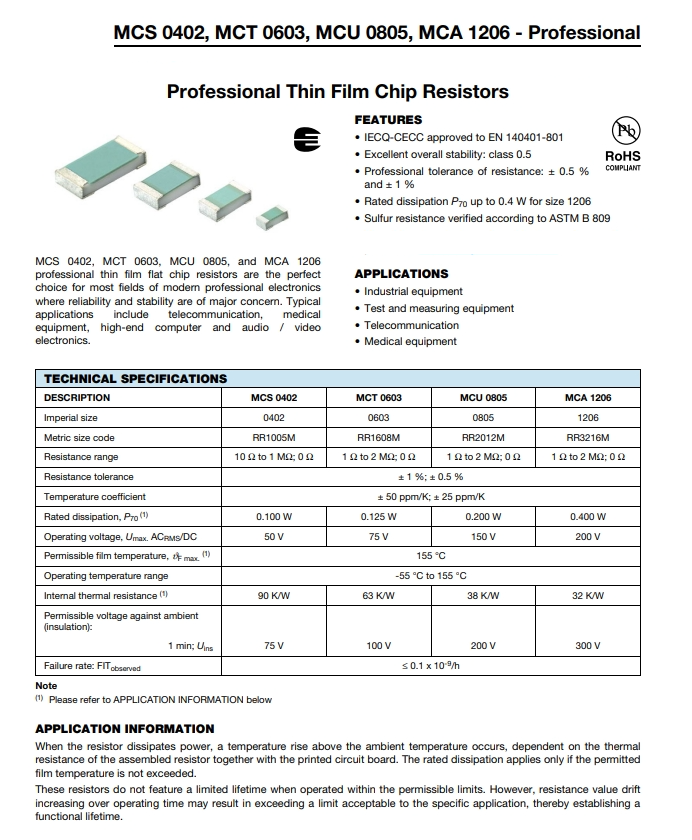

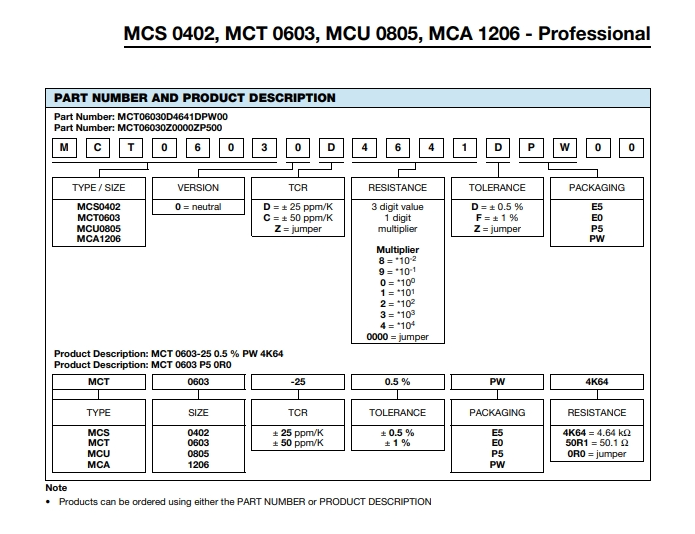

Product datasheet

For more information, please download
