Hot sale Original TNPU080549K9AZEN00 Resistor 49.9 kOhms ±0.05% 0.125W, 1/8W Chip Resistor Moisture Resistant Thin Film

Product Description

Product Description: TNPU080549K9AZEN00 Surface Mount Chip Resistor

The TNPU080549K9AZEN00 is a high-precision surface mount chip resistor designed by Vishay Dale, specifically engineered for demanding applications in the automotive and industrial sectors. This resistor features a compact 0805 (2012 Metric) package, making it ideal for space-constrained designs. With a maximum power dissipation of 125mW and an operating temperature range of -55°C to 125°C, this resistor offers reliable performance under various environmental conditions.

Product Features

· High Precision: The TNPU080549K9AZEN00 boasts a resistance value of 49.9kOhm with a tolerance of ±0.05%, ensuring precise resistance in critical applications.

· Moisture Resistant: Constructed with a moisture-resistant design, this resistor is suitable for use in humid environments.

· Anti-Sulfur: The anti-sulfur feature protects the resistor from degradation caused by sulfur compounds, extending its lifespan.

· Automotive AEC-Q200: Compliant with AEC-Q200 standards, this resistor meets the stringent requirements for automotive electronics.

· RoHS3 Compliant: The TNPU080549K9AZEN00 is fully compliant with ROHS3 regulations, ensuring environmental sustainability.

· Surface Mount Capable: Designed for surface mount technology (SMT), this resistor simplifies the assembly process and reduces manufacturing costs.

Product Applications

The TNPU080549K9AZEN00 is primarily suited for: - Automotive Electronics: Due to its compliance with AEC-Q200 standards, it is ideal for use in automotive systems where reliability and precision are crucial. - Industrial Control Systems: Its high precision and moisture-resistant design make it suitable for industrial control systems that operate in various environmental conditions. - Medical Devices: The resistor's high precision and reliability make it a good fit for medical devices where accuracy is paramount.

Secondary applications include: - Consumer Electronics: The resistor's compact size and high precision make it suitable for use in consumer electronics such as smartphones and tablets. - Aerospace Applications: Although not specifically radiation-hardened, its high reliability could make it suitable for aerospace applications where redundancy is key.

Embedded Modules

The TNPU080549K9AZEN00 is commonly used in various embedded modules including: - Microcontroller Boards: Its compact size and high precision make it an excellent choice for microcontroller boards used in IoT devices. - Power Management ICs (PMICs): The resistor's ability to handle high temperatures and its precision make it suitable for use in PMICs found in automotive systems. - Sensor Modules: The resistor's reliability and precision make it a good fit for sensor modules used in industrial control systems.

In summary, the TNPU080549K9AZEN00 is a versatile surface mount chip resistor designed to meet the stringent requirements of modern electronics applications. Its high precision, moisture resistance, anti-sulfur properties, and compliance with AEC-Q200 standards make it an excellent choice for automotive and industrial applications.

Product Description

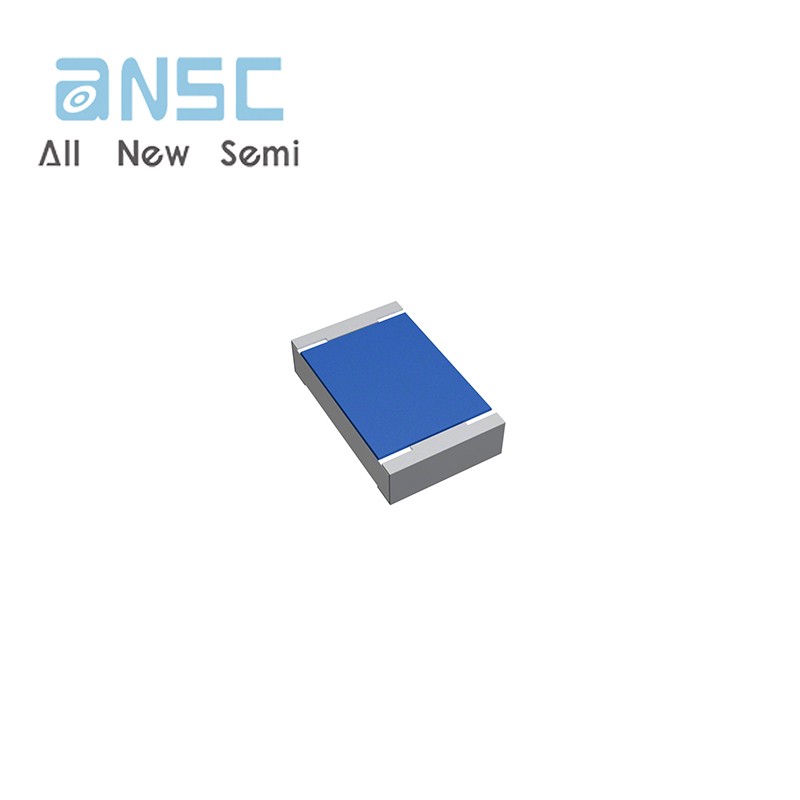

Actual image of the product

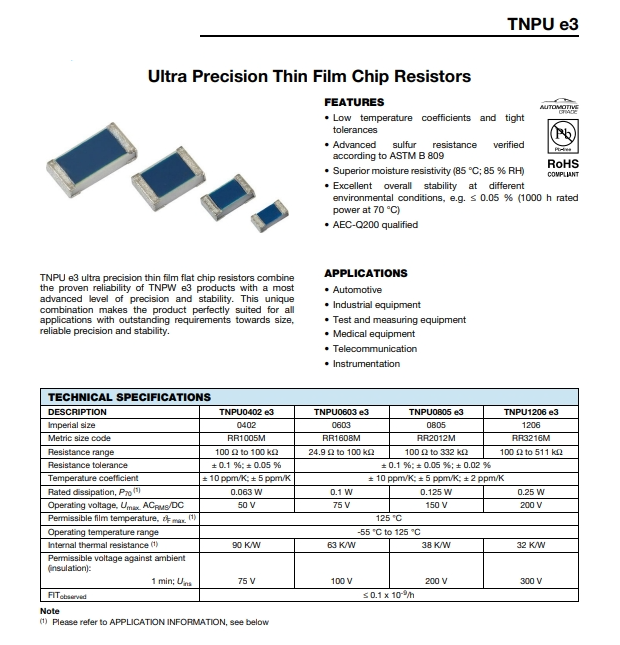

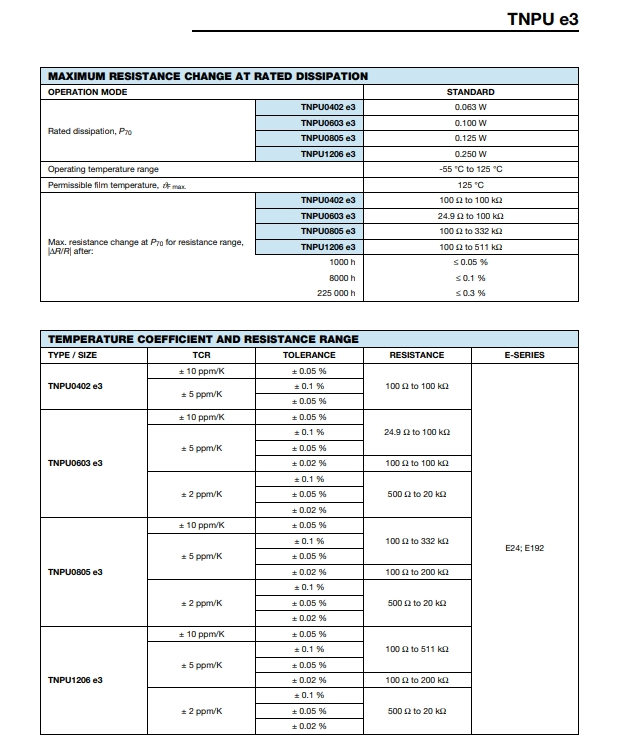

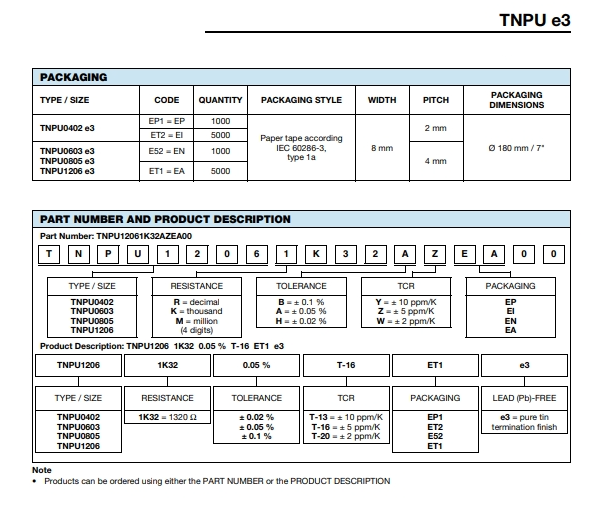

Product datasheet

For more information, please download
