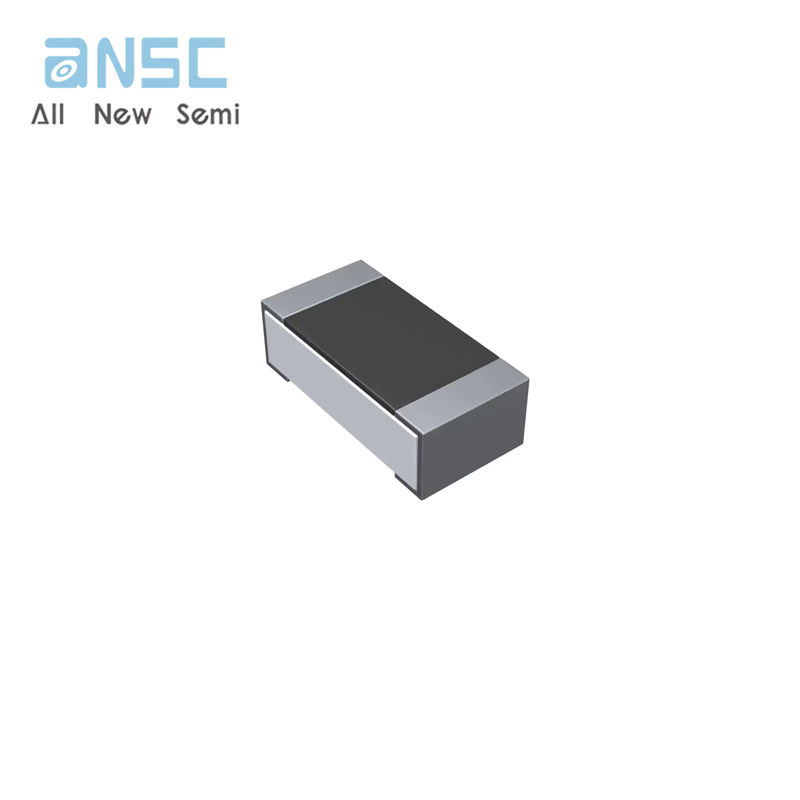

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot offer One-Stop BOM distribution service electronic components CR0603-JW-224ELF Tight tolerances of bottom electrode width
Manufacturer Product Number
CR0603-JW-224ELF
Description
CR0603-JW-224ELF 220 kOhms ±5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Moisture Resistant Thick Film
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
■ RoHS compliant*
■ Power rating at 70 °C: CR0603 - 0.10 W, CR0805 - 0.125 W, CR1206 - 0.25 W
■ Tight tolerances of bottom electrode width
■ Suitable for all types of soldering processes
■ Three layer contacting process with nickel barrier prevents leaching and provides excellent solderability
■ Paper tape on reel for automatic placement
Product Description
|
Type |
Description |
|---|---|
|
Category |
Resistors Chip Resistor - Surface Mount |
|
Mfr |
/ |
|
Series |
CR0603 |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Resistance |
220 kOhms |
|
Tolerance |
±5% |
|
Power (Watts) |
0.1W, 1/10W |
|
Composition |
Thick Film |
|
Features |
Moisture Resistant |
|
Temperature Coefficient |
±200ppm/°C |
|
Operating Temperature |
-55°C ~ 155°C |
|
Package / Case |
0603 (1608 Metric) |
|
Supplier Device Package |
0603 |
|
Size / Dimension |
0.063" L x 0.031" W (1.60mm x 0.80mm) |
|
Height - Seated (Max) |
0.022" (0.55mm) |
|
Number of Terminations |
2 |
|
Failure Rate |
- |
|
Base Product Number |
CR0603 |
Actual image of the product
