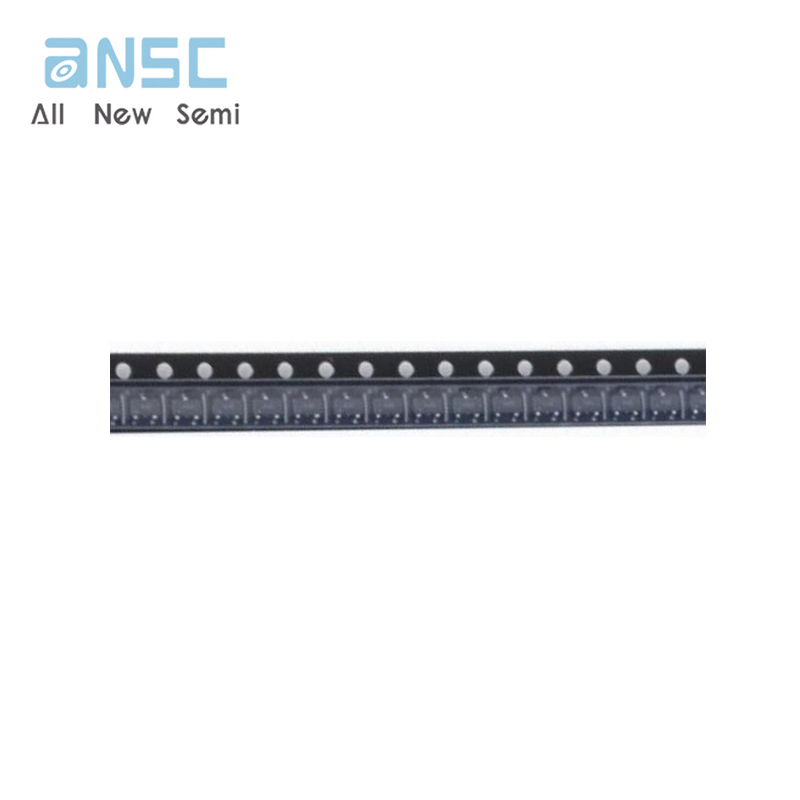

Original AH3564Q-SA-7 MAG SWITCH OMNIPOLAR SOT23 T&R Digital Switch Omnipolar Switch Open Drain Hall Effect SOT-23-3
Manufacturer
Manufacturer Product Number
AH3564Q-SA-7
Description
Automotive, AEC-Q100 Series Open Drain 3V~28V -40°C~125°C TA Omnipolar Switch North Pole, South Pole ±6mT Trip, ±1mT Release 4mA-Supply (Max) Matte Tin (Sn) TO-236-3, SC-59, SOT-23-3
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Product Overview
Designed to protect magnetic switches from damage, the Tape & Reel (TR) package contains the switches. In order to ensure safety, magnetic switches are packaged in TO-236-3, SC-59, SOT-23-3 packages. In order to function well, magnetic switches should be able to supply a maximum current of 4mA.
Product Features
Packaging: Tape & Reel (TR)
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Supply Voltage: 3V~28V
Operating Temperature: -40°C~125°C TA
Mounting Type: Surface Mount
Output Type: Open Drain
Maximum Supply Current: 4mA
Product Applications
There are a lot of Diodes Incorporated
AH3564Q-SA-7 Magnetic Switches applications.
Robotics control
Electric window lift
Convertible roof position
Motor assemblies
Medication dispensing control
Security and military applications
Detection of ferromagnetic
Discrimination of ferromagnetic
Localization of ferromagnetic
Conducting objects
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - AH3564Q-SA-7 |
|
Category |
Sensors, Transducers Magnetic Sensors Switches (Solid State) |
|
Mfr |
Diodes Incorporated |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Obsolete |
|
Function |
Omnipolar Switch |
|
Technology |
Hall Effect |
|
Polarization |
North Pole, South Pole |
|
Sensing Range |
±6mT Trip, ±1mT Release |
|
Test Condition |
-40°C ~ 125°C |
|
Voltage - Supply |
3V ~ 28V |
|
Current - Supply (Max) |
4mA |
|
Current - Output (Max) |
55mA |
|
Output Type |
Open Drain |
|
Features |
Temperature Compensated |
|
Operating Temperature |
-40°C ~ 125°C (TA) |
|
Grade |
Automotive |
|
Qualification |
AEC-Q100 |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
SOT-23-3 |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
Base Product Number |
AH3564 |
