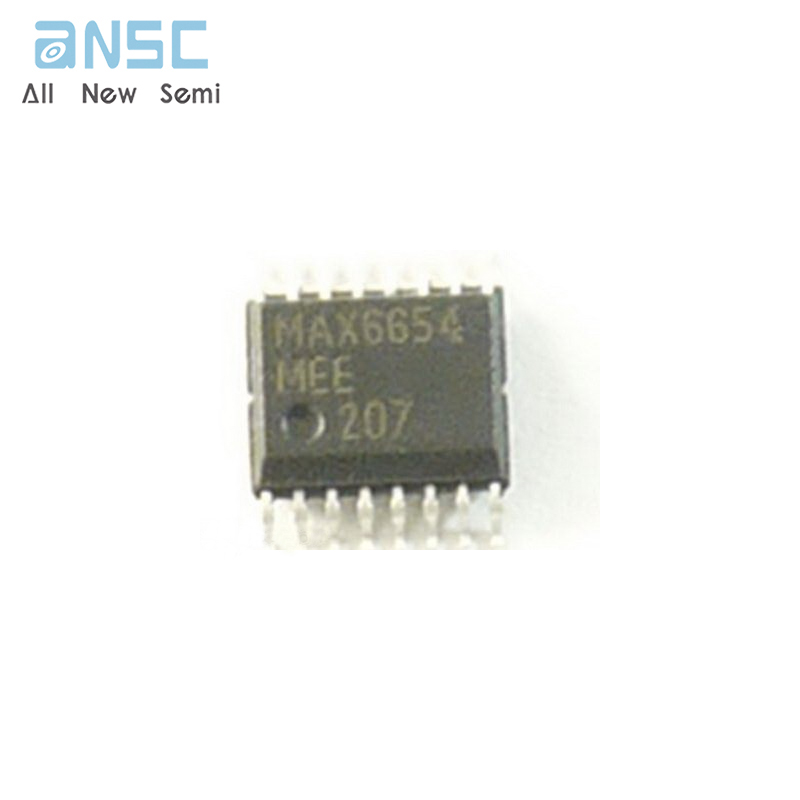

Hot-selling and scarce MAX6654MEE+T 1°C Accurate Remote/Local Temperature Sensor with SMBus Serial Interface SSOP spot stock

Product Descriptions

The MAX6654† is a precise digital thermometer that reports the temperature of both a remote P-N junction and its own die.The remote junction can be a diode-connected transistor—typically a low-cost, easily mounted2N3904 NPN type or 2N3906 PNP type—that replaces conventional thermistors or thermocouples. Remote accuracy is ±1°C for multiple transistor manufacturers, with no calibration needed. The remote junction can also be a common-collector PNP, such as a substrate PNP of a microprocessor (µP).

The 2-wire serial interface accepts standard System Management Bus (SMBus)^TM , Write Byte, Read Byte, Send Byte, and Receive Byte commands to program the alarm thresholds  and to  read temperature  data. Measurements  can  be  done  automatically  and autonomously, with the conversion rate programmed by the user, or programmed to operate in a single-shot mode. The adjustable conversion rate allows the user to optimize supply current and temperature update rate to match system needs. When the conversion rate is faster than 1Hz, the conversion results are available as a 7-bitplus-sign byte with a 1°C LSB. When the conversion rate is 1Hz or slower, the MAX6654 enters the extended mode. In this mode, 3 additional bits of temperature data are available in the extended resolution register, providing  10-bit-plus-sign resolution with a 0.125°C LSB. Single-shot conversions also have 0.125°C per LSB resolution when the conversion rate is 1Hz or slower.

A parasitic resistance cancellation (PRC) mode can also be invoked for conversion rates of 1Hz or slower by setting bit 4 of the configuration register to 1. In PRC mode, the effect of series resistance on the leads of the external diode is canceled. The 11-bit conversion in PRC mode is performed in <500ms and is disabled for conversion rates faster than 1Hz. The one-shot conversion is also 11 bits in <500ms.

The MAX6654 default low-temperature measurement limit is 0°C. This can be extended to -64°C by setting bit5 of the configuration register to 1.

The MAX6654 is available in a small, 16-pin QSOP surface-mount package.​

Product Features

♦  High Accuracy ±1°C (max) from +70°C to +100°C (Remote)

♦  11-Bit, 0.125°C Resolution

♦  Dual Channel: Measures Remote and Local Temperature

♦  No Calibration Required

♦  Programmable Under/Overtemperature Alarms

♦  I2 C™-Compatible/SMBus Interface

♦  +3V to +5.5V Supply Range

Product Applications

Desktop Computers

Notebook Computers

Servers

Thin Clients

Workstations

Test and Measurement

Multichip Modules

Product Specification

Product Photos

For more product information, please download the PDF
