Hot-selling and scarce ADXL312ACPZ Digital Accelerometer QFN spot stock

Product Descriptions

The ADXL3121 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement up to ±12 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a serial port interface (SPI) (3- or 4-wire) or I2 C digital interface.

The ADXL312 is well suited for car alarm or black box applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (2.9 mg/LSB) enables resolution of inclination changes of as little as 0 .25°. A built-in FIFO facilitates using oversampling techniques to improve resolution to as little as0.05° of inclination.

Several special sensing functions are provided.Activity and inactivity sensing detects the presence or absence of motion and whether the acceleration on any axis exceeds a user-set level. These functions can be mapped to interrupt output pins.An integrated 32 level FIFO can be used to store data to minimize host processor intervention.

Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation.

Product Features

►  Ultralow power: as low as 57 µA in measurement mode and 0.1µA in standby mode at VS = 3.3 V (typical)

►  Power consumption scales automatically with bandwidth

►  User-selectable resolution

►  Fixed 10-bit resolution

►  Full resolution, where resolution increases with g range, up to 13-bit resolution at ±12 g (maintaining 2.9 mg/LSB scale factor in all g ranges)

►  Embedded FIFO technology minimizes host processor load

►  Built-in motion detection functions for activity/inactivity monitoring

►  Supply and I/O voltage range: 2.0 V to 3.6 V

►  SPI (3- and 4-wire) and I2 C digital interfaces

►  Flexible interrupt modes mappable to either interrupt pin

►  Measurement ranges selectable via serial command

►  Bandwidth selectable via serial command

► Wide temperature range (−40 to +105°C)

►  10,000 g shock survival

►  Pb free/RoHS compliant

►  Small and thin: 5 mm × 5 mm × 1.45 mm LFCSP package

►  Qualified for automotive applications

Product Applications

►  Car alarm

►  Hill start aid (HSA)

►  Electronic parking brake

►  Data recorder (black box)

Product Specification

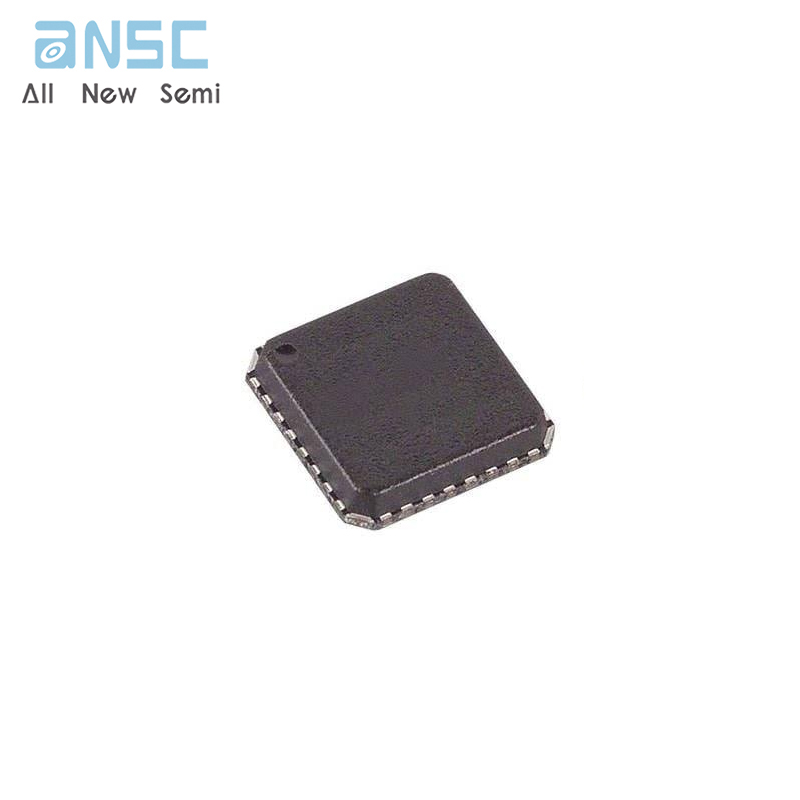

Product Photos

For more product information, please download the PDF
