Original Electronic Components SHT25 SENSOR HUMI/TEMP 3V I2C 1.8% SMD
Manufacturer
Manufacturer Product Number
SHT25
Description
SHT25 Analog Circuit 1 Func CMOS PDSO6 3 X 3 MM PLASTIC DFN-6
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The SHT25 is a high end version humidity and temperature sensor IC in 6 pin DFN package. It has become an industry standard in terms of form factor and intelligence. This device provides calibrated, linearized sensor signals in digital I2C format. The SHT25 sensor contains capacitive type humidity sensor, band gap temperature sensor and specialized analogue and digital integrated circuit on a single CMOSens chip. This yields an unmatched sensor performance in terms of accuracy and stability as well as minimal power consumption. The SHT25 offers an outstanding performance to price ratio due its proven reliability and long term stability. Features Low power consumption and excellent long term stability 0.04%RH (12bit) relative humidity resolution 0.01°C (14bit) temperature resolution Relative humidity accuracy of ±1.8%RH Temperature accuracy of ±0.2°C Relative humidity response time of 8s Temperature response time of 5s to 30s Operating relative humidity range from 0%RH to 100 %RH Operating temperature range from -40°C to 125°C Supply voltage range from 2.1V to 3.6V Application Sensing & Instrumentation |
Product Description
| Type | Description |
| Part# | SHT25 |
| Category | Sensors, Transducers |
| Humidity, Moisture Sensors | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Not For New Designs |
| Sensor Type | Humidity, Temperature |
| Humidity Range | 0 ~ 100% RH |
| Output Type | I2C |
| Output | 12b |
| Accuracy | ±1.8% RH |
| Response Time | 8 s |
| Sensitivity | - |
| Voltage - Supply | 2.1V ~ 3.6V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 6-TDFN Exposed Pad |
| Supplier Device Package | 6-DFN (3x3) |

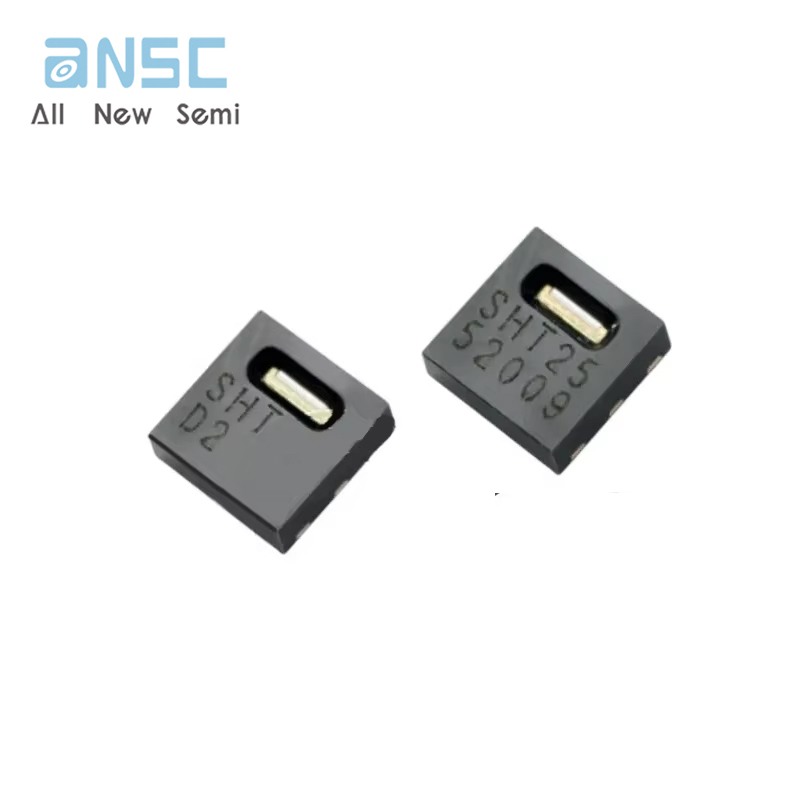

Actual image of the product
