Professional supply Original 6 Channel Ambient Light Sensors BOM distribution service electronic components AS7262-BLGT
Manufacturer Product Number
AS7262-BLGT
Description
Original 6 Channel Ambient Light Sensors BOM distribution service electronic components AS7262-BLGT
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description: The AS7262-BLGT is an optical sensor that is designed to measure visible light in six different channels. It is a low-power, low-cost, and small form factor device that is ideal for applications such as color sensing, light intensity measurement, and ambient light sensing. The AS7262-BLGT features a wide spectral range from 380nm to 950nm, a high dynamic range of up to 16-bit resolution, and a low power consumption of only 1.2mA. Features: • Low power consumption of 1.2mA • Wide spectral range from 380nm to 950nm • High dynamic range of up to 16-bit resolution • Small form factor of only 2.5mm x 2.5mm • Low cost and easy to use • Integrated temperature compensation • I2C interface for easy integration Applications: The AS7262-BLGT is ideal for applications such as color sensing, light intensity measurement, and ambient light sensing. It can be used in a variety of applications such as smart lighting, automotive lighting, medical devices, and consumer electronics. It is also suitable for use in industrial and agricultural applications. |
Product Description
| Type | Description |
| PART# | AS7262-BLGT |
| Ihs Manufacturer | Original |
| Body Breadth | 4.5 mm |
| Body Height | 2.5 mm |
| Body Length or Diameter | 4.7 mm |
| Mounting Feature | SURFACE MOUNT |
| Number of Terminals | 20 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output | DIGITAL |
| Output Range | 0.40-2.90V |
| Output Type | DIGITAL VOLTAGE |
| Package Body Material | UNSPECIFIED |
| Package Equivalence Code | LCC20,.17X.18,25 |
| Package Shape/Style | RECTANGULAR |
| Sensors/Transducers Type | SPECTRUM SENSOR |
| Supply Voltage-Max | 3.6 V |
| Supply Voltage-Min | 2.7 V |
| Surface Mount | YES |
| Technology | CMOS |

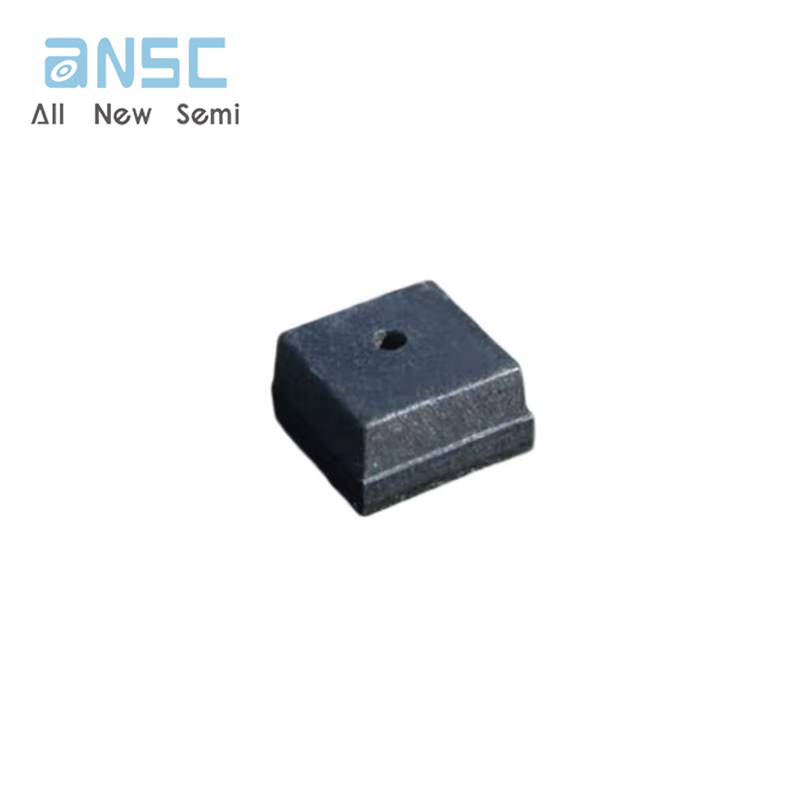

Actual image of the product
