Hot sale Original SPW35N60CFD Power Field-Effect Transistor 600V N-Channel Metal-oxide Semiconductor FET GREEN, PLASTIC, TO-247
Manufacturer Product Number
SPW35N60CFD
Description
SPW35N60CFD Power Field-Effect Transistor, 34.1A I(D), 600V, 0.118ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247AA, GREEN, PLASTIC, TO-247, 3 PIN
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Features • New revolutionary high voltage technology • Intrinsic fast-recovery body diode • Extremely low reverse recovery charge • Ultra low gate charge • Extreme dv /dt rated • High peak current capability • Periodic avalanche rated • Qualified according to JEDEC1) for target applications • Pb-free lead plating; RoHS compliant |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - SPW35N60CFD |
| Ihs Manufacturer | Original |
| Part Package Code | TO-247AA |
| Package Description | GREEN, PLASTIC, TO-247, 3 PIN |
| Pin Count | 3 |
| Samacsys Manufacturer | / |
| Additional Feature | AVALANCHE RATED, HIGH VOLTAGE |
| Avalanche Energy Rating (Eas) | 1300 mJ |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 600 V |
| Drain Current-Max (ID) | 34.1 A |
| Drain-source On Resistance-Max | 0.118 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 Code | TO-247AA |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e3 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 313 W |
| Pulsed Drain Current-Max (IDM) | 85 A |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Finish | Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Element Material | SILICON |

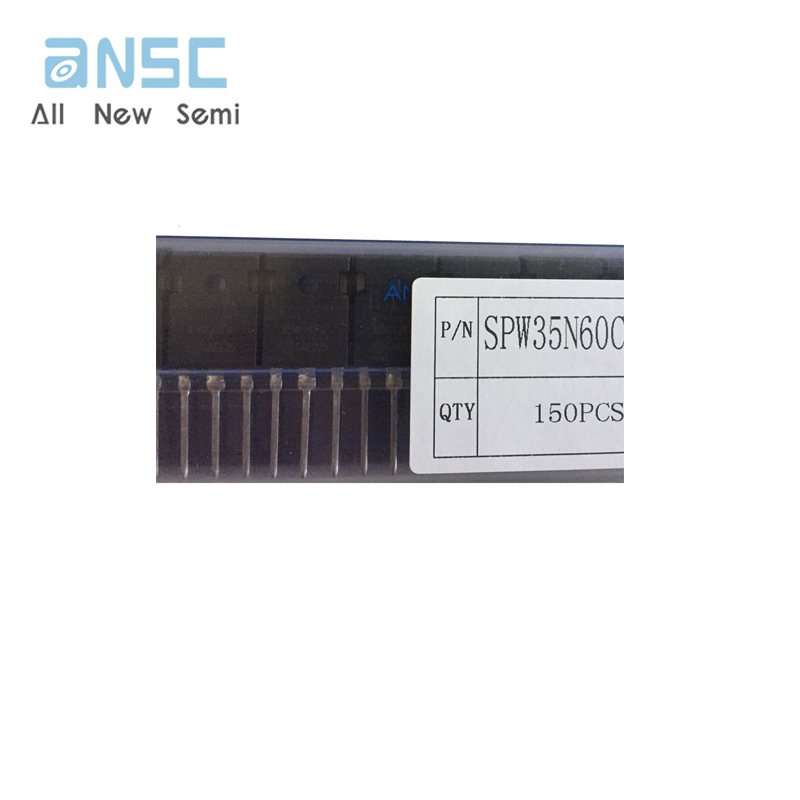

Actual image of the product

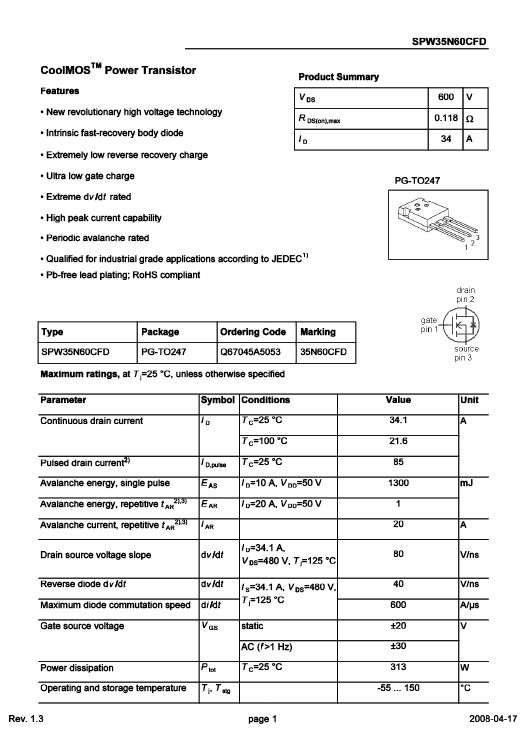

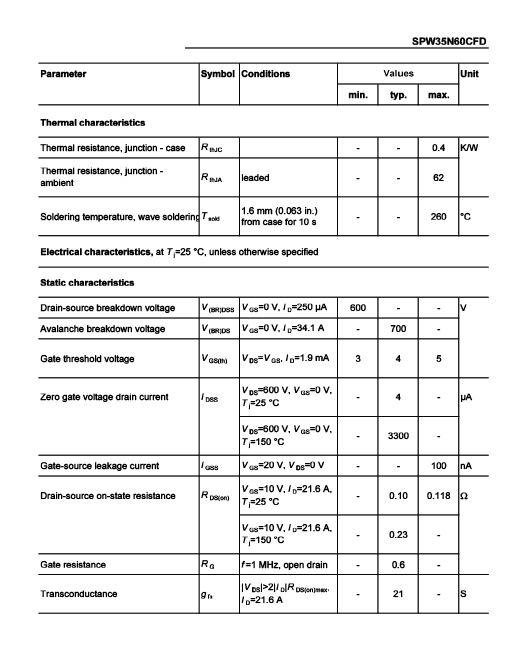

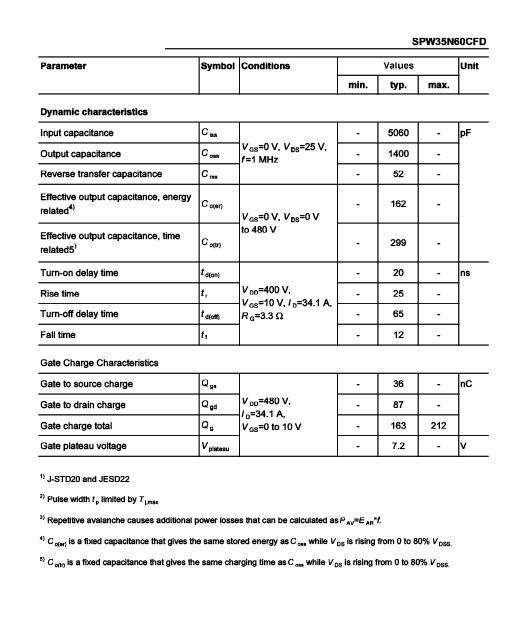

Product datasheet
For more information, please download
