Hot selling one stop electronic component supply 2SC4636 High-Voltage Amp, High-Voltage Switching Applications TO-220FI
Manufacturer Product Number
2SC4636
Description
2SC4636 - NPN Triple Diffused Planar Silicon Transistor 1800V/10 Milli Ampere High-Voltage Amplifier
Package Condition
TUBE
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• High breakdown voltage(VCEO min=1800V).
• Small Cob(typical Cob=1.4pF).
• Full-isolation package.
• High reliability(Adoption of HVP process).
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2SC4636 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 10 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1.8 kV |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 40µA, 200µA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 100µA, 5V |
| Power - Max | 2 W |
| Frequency - Transition | 6MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FI(LS) |

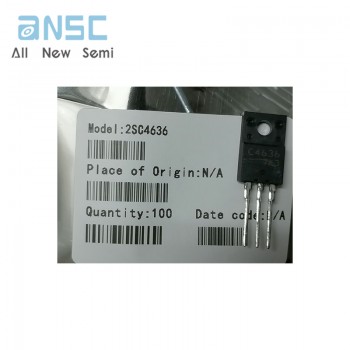

Actual product photos
