Hot sale Original STI24NM60N MOSFET N CH 600V 17A I2PAK N-Channel 600 V 17A (Tc) 125W (Tc) Through Hole

Manufacturer Product Number
STI24NM60N
Description

STI24NM60N MOSFET N CH 600V 17A I2PAK N-Channel 600 V 17A (Tc) 125W (Tc) Through Hole I2PAK

Package Condition
original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Description
This series of devices is designed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Features
■ 100% avalanche tested
■ Low input capacitance and gate charge
■ Low gate input resistance
Application
■ Switching applications

Product Description

Type Description
ANSC PART# ANSC - STI24NM60N
Category Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
Mfr Original
Series MDmesh™ II
Packaging Tube
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 190mOhm @ 8A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 46 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 1400 pF @ 50 V
FET Feature -
Power Dissipation (Max) 125W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Qualification -
Mounting Type Through Hole
Supplier Device Package I2PAK
Package / Case TO-262-3 Long Leads, I2PAK, TO-262AA
Base Product Number STI24

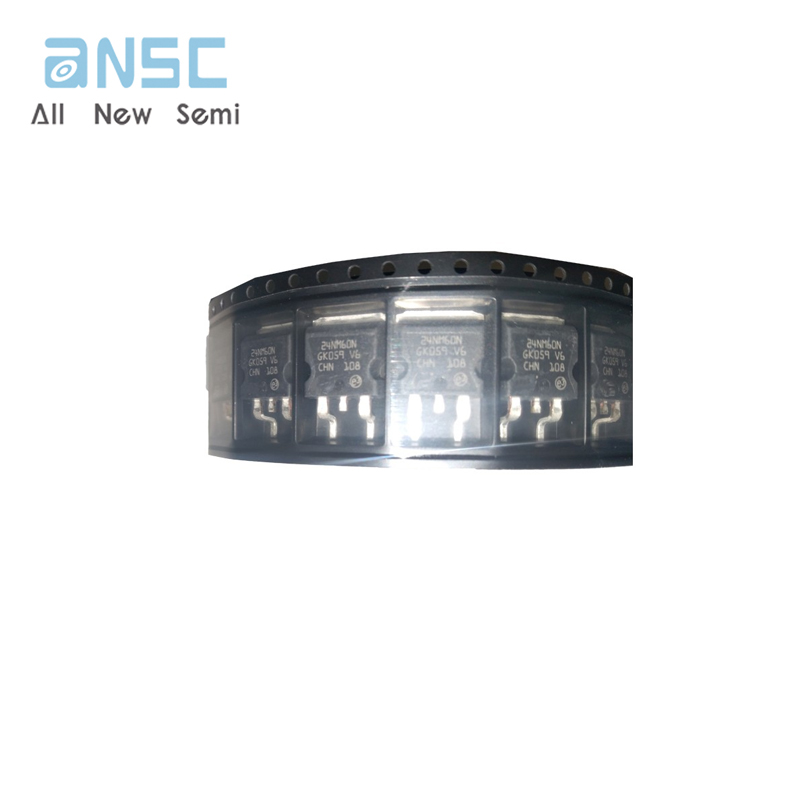

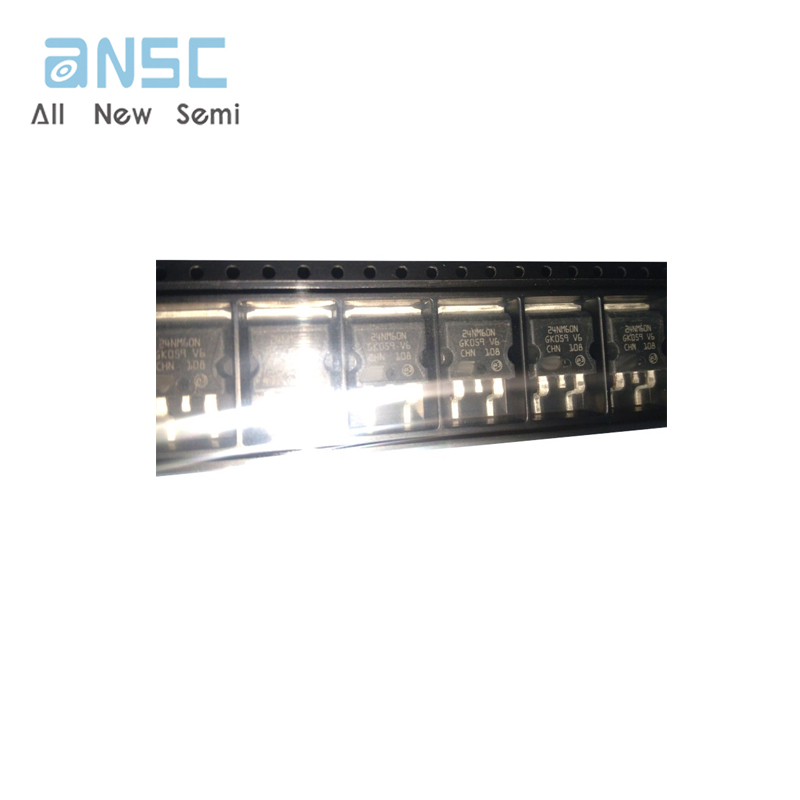

Actual image of the product

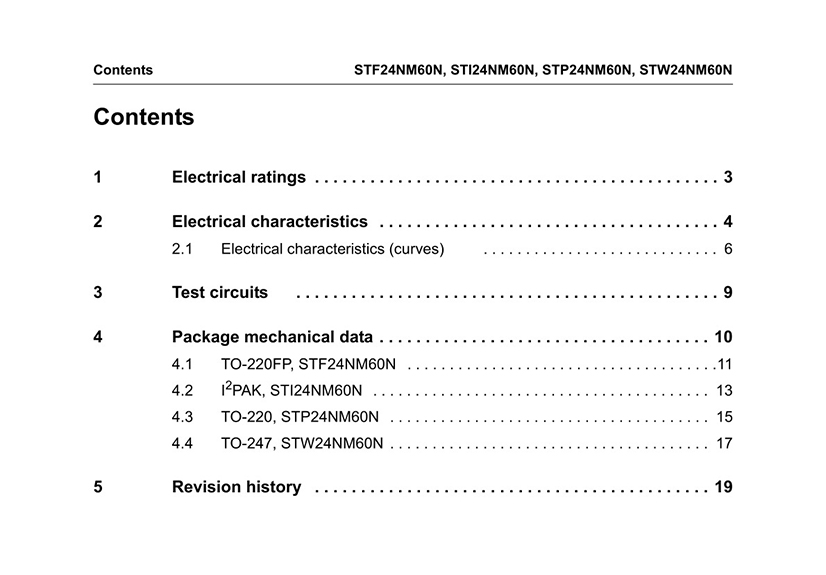

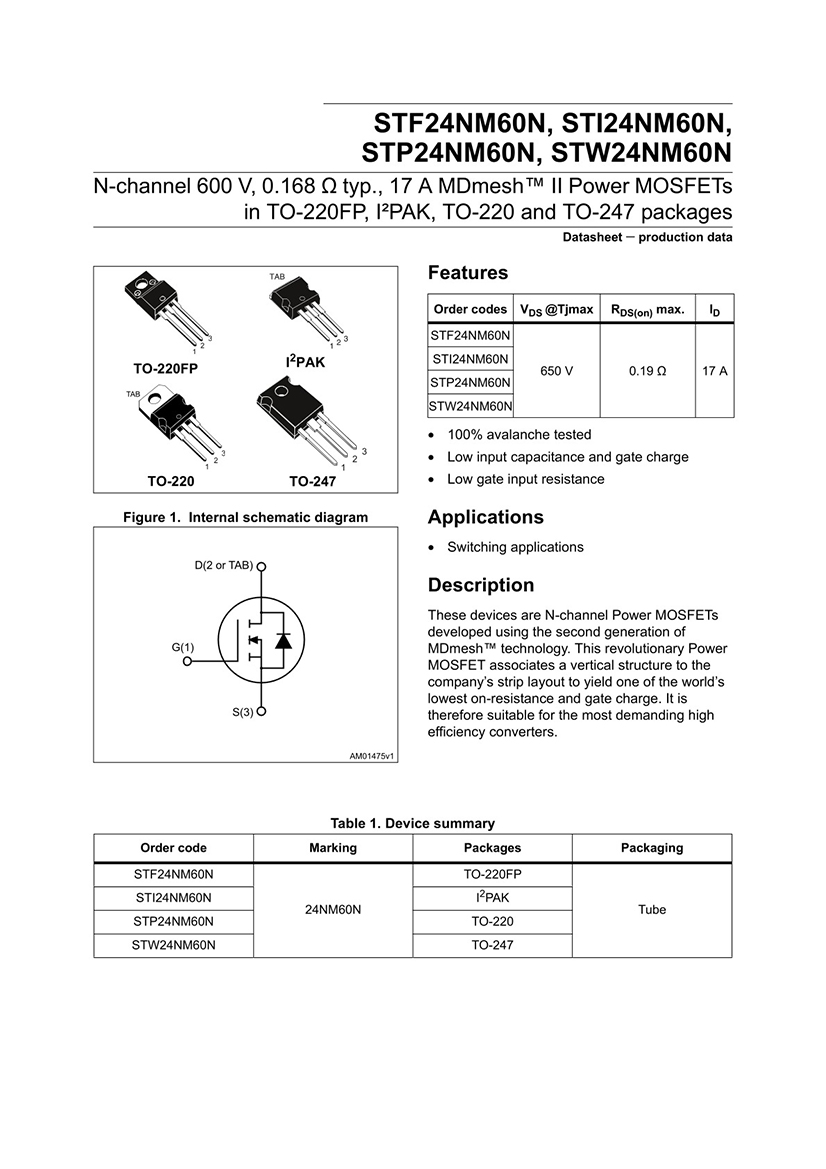

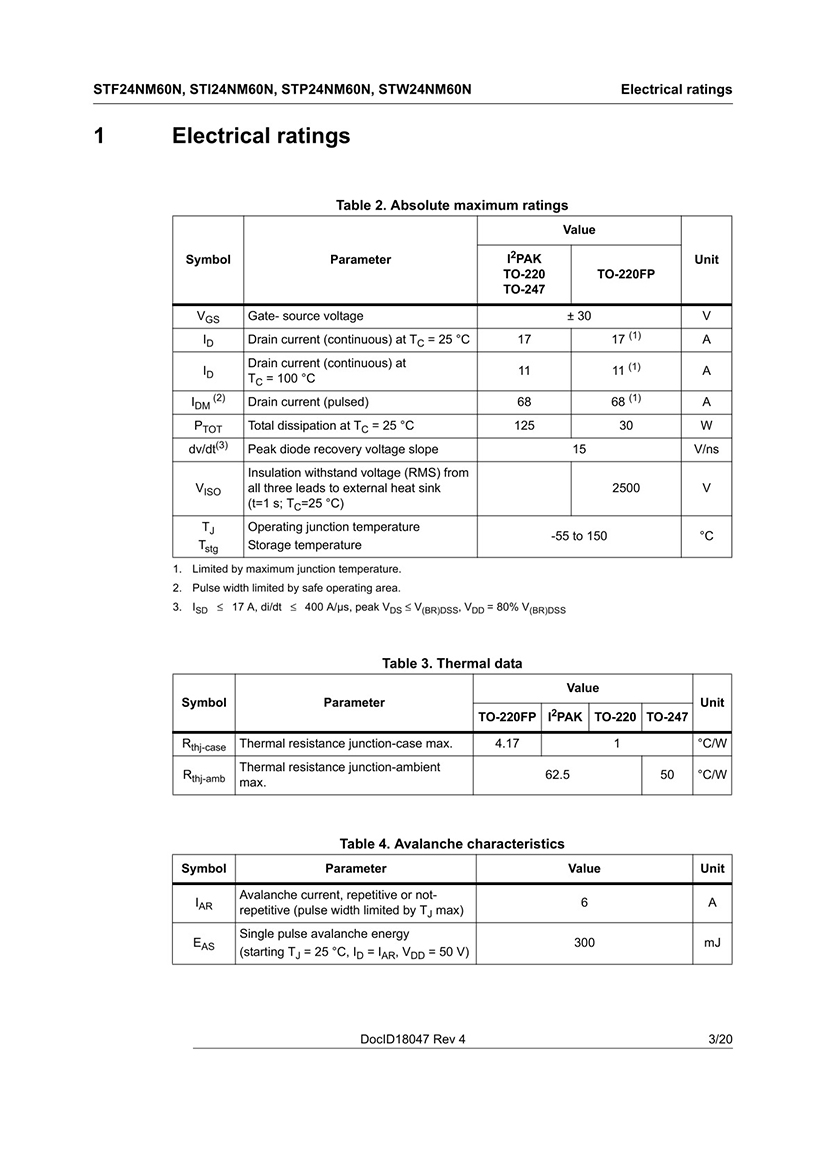

Product datasheet

For more information, please download
