Hot sale Original 2N6788 Power Field-Effect Transistor, 6A I(D) 100V 0.35ohm 1-Element N-Channel Silicon TO-39 3PIN

Product Overview

The drain current is the maximum continuous current the device can conduct, and this device has 6A continuous drain current (ID).Drain current refers to the maximum continuous current a device can conduct, and it is 6A.Peak drain current is 24A, which is the maximum pulsed drain current.Before drain current conduction begins, the device's input capacitance must be charged, so the delay time is 40 ns.An FET transistor's gate-source voltage, VGS, indicates how much voltage is applied across the transistor's gate-source terminal and it can range from 20V to 1.Normal operation requires that the DS breakdown voltage remain above 100V.For this transistor to work, a voltage 100V is required between drain and source (Vdss).

Product Features

a continuous drain current (ID) of 6A
based on its rated peak drain current 24A.
a 100V drain to source voltage (Vdss)

Product Applications

2N6788 applications of single MOSFETs transistors.

• AC-DC Power Supply

• Synchronous Rectification for ATX 1 Server I Telecom PSU

• Motor drives and Uninterruptible Power Supplies

• Micro Solar Inverter

• DC/DC converters

• Power Tools

• Motor Drives and Uninterruptible Power Supples

• Synchronous Rectification

• Battery Protection Circuit

• Telecom 1 Sever Power Supplies

Product Description

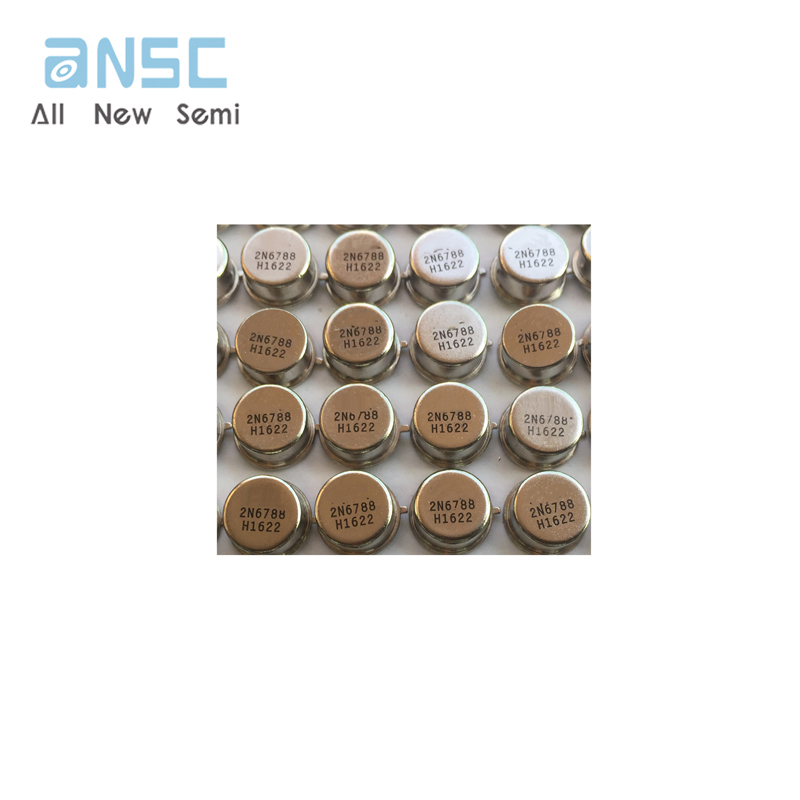

Actual image of the product

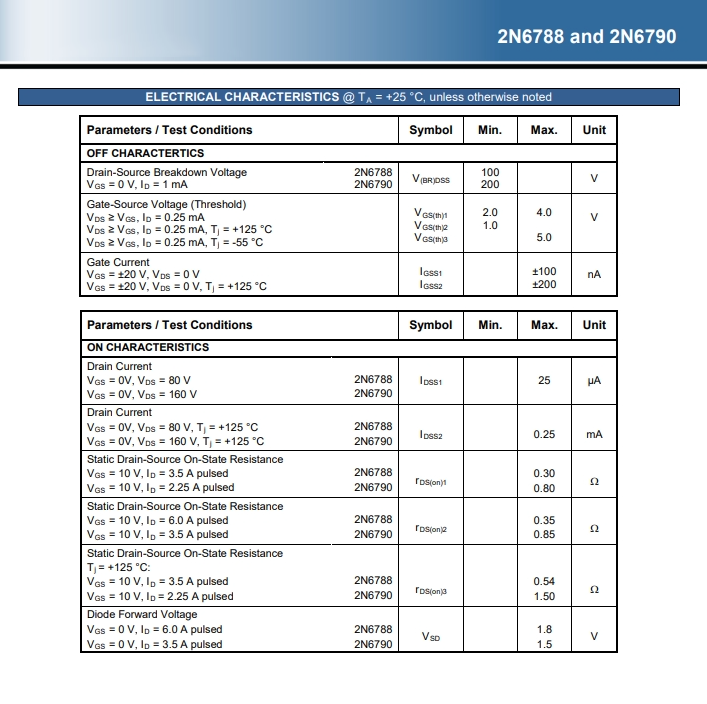

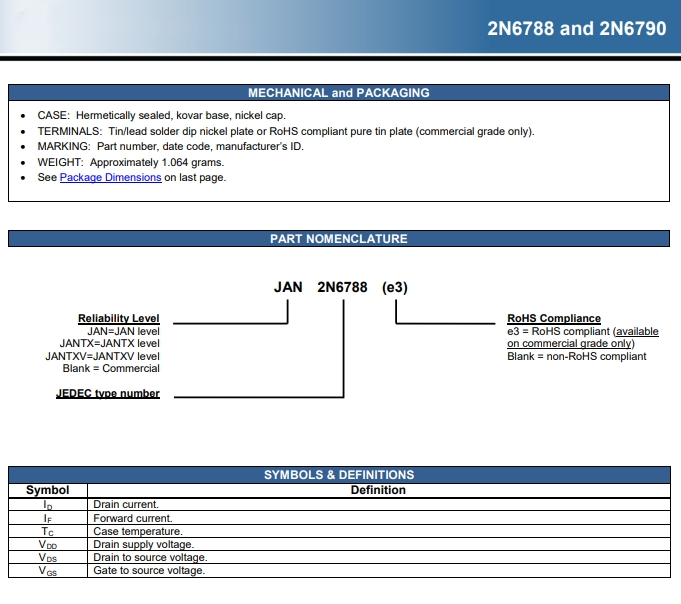

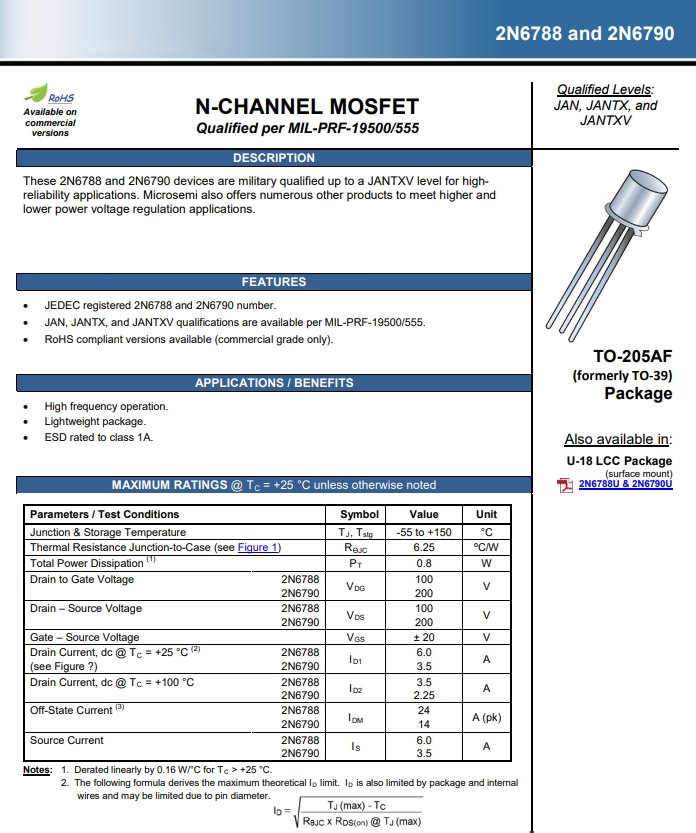

Product datasheet

For more information, please download
