Hot sale Original STW12NK90Z Transistor MOSFET N-CH 900V 11A N-Channel 900 V 11A (Tc) 230W (Tc) Through Hole TO-247-3
Manufacturer
Manufacturer Product Number
STW12NK90Z
Description
Original STW12NK90Z Transistor MOSFET N-CH 900V 11A N-Channel 900 V 11A (Tc) 230W (Tc) Through Hole TO-247-3
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
STW12NK90Z is produced with SuperMESHTM Power MOSFET technology, which is derived from a highly optimized version of ST's well-known strip-based PowerMESHTM layout. It is available in the TO-247-3 package and can be used in switching applications, according to the STW12NK90Z datasheet. In addition to lowering on-resistance, special attention is paid to ensuring excellent dv/dt capability for the most demanding applications. ST's comprehensive portfolio of high voltage MOSFETs, including the groundbreaking MDmeshTM devices, is complemented by this series.
Product Features
100% avalanche tested
Gate charge minimized
Very low intrinsic capacitance
Extremely high dv/dt capability
Very good manufacturing repeatability
Product Applications
Switching applications
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - STW12NK90Z |
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
- |
|
Series |
SuperMESH™ |
|
Packaging |
Tube |
|
Part Status |
Active |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
900 V |
|
Current - Continuous Drain (Id) @ 25°C |
11A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
880mOhm @ 5.5A, 10V |
|
Vgs(th) (Max) @ Id |
4.5V @ 100µA |
|
Gate Charge (Qg) (Max) @ Vgs |
152 nC @ 10 V |
|
Vgs (Max) |
±30V |
|
Input Capacitance (Ciss) (Max) @ Vds |
3500 pF @ 25 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
230W (Tc) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
TO-247-3 |
|
Package / Case |
TO-247-3 |
|
Base Product Number |
STW12 |

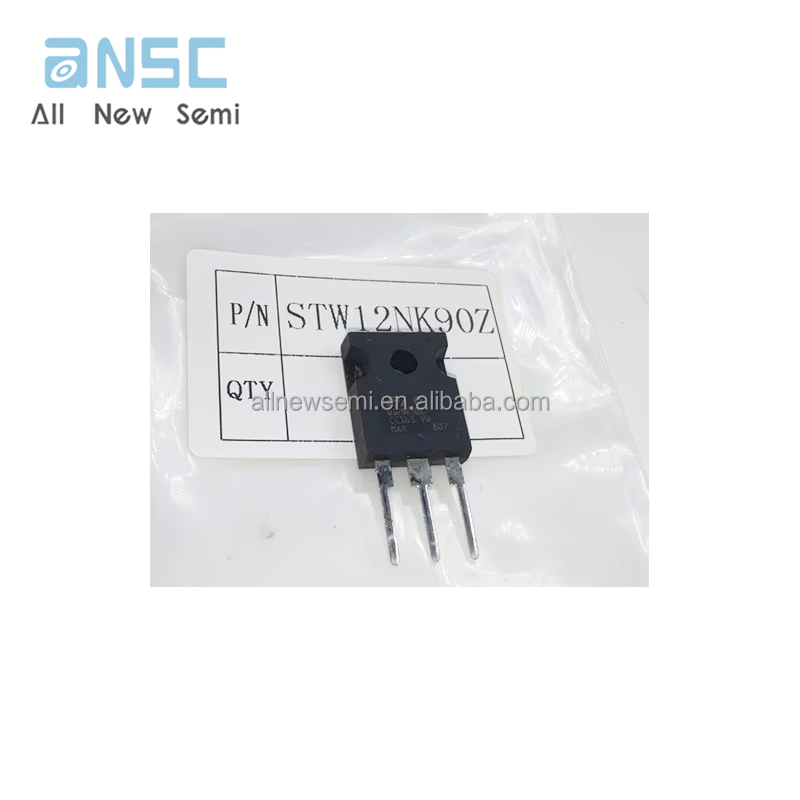

Actual image of the product

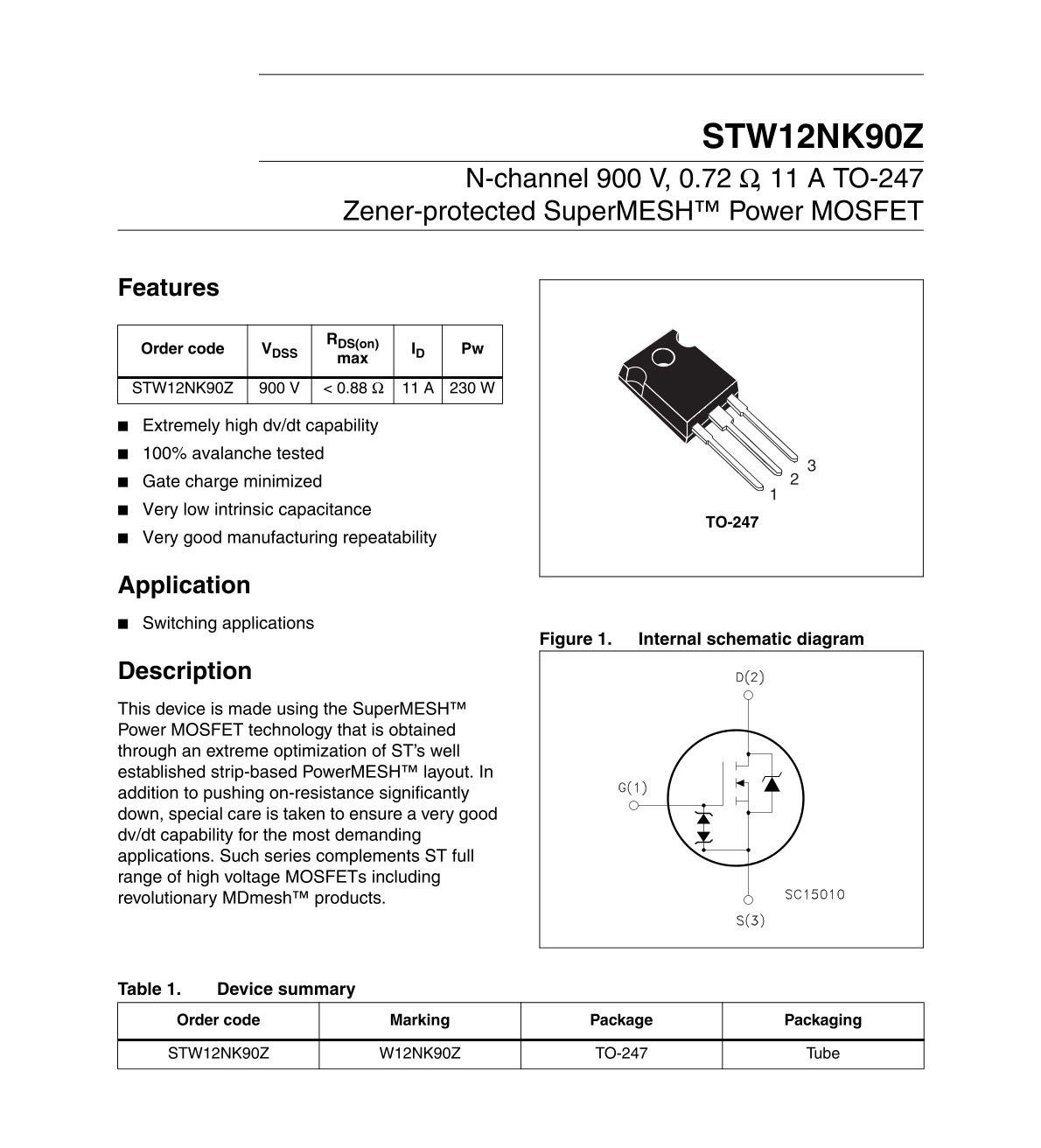

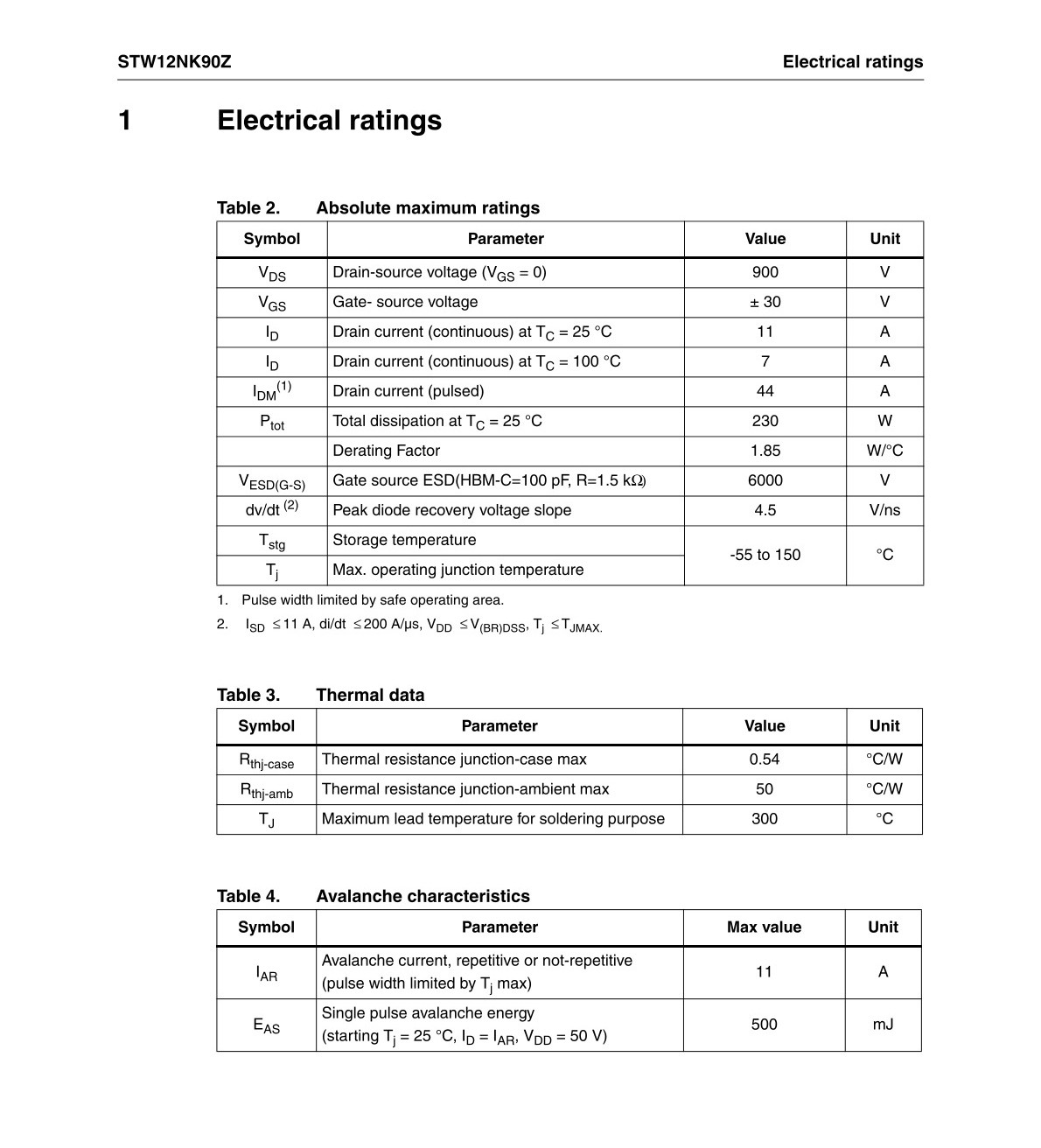

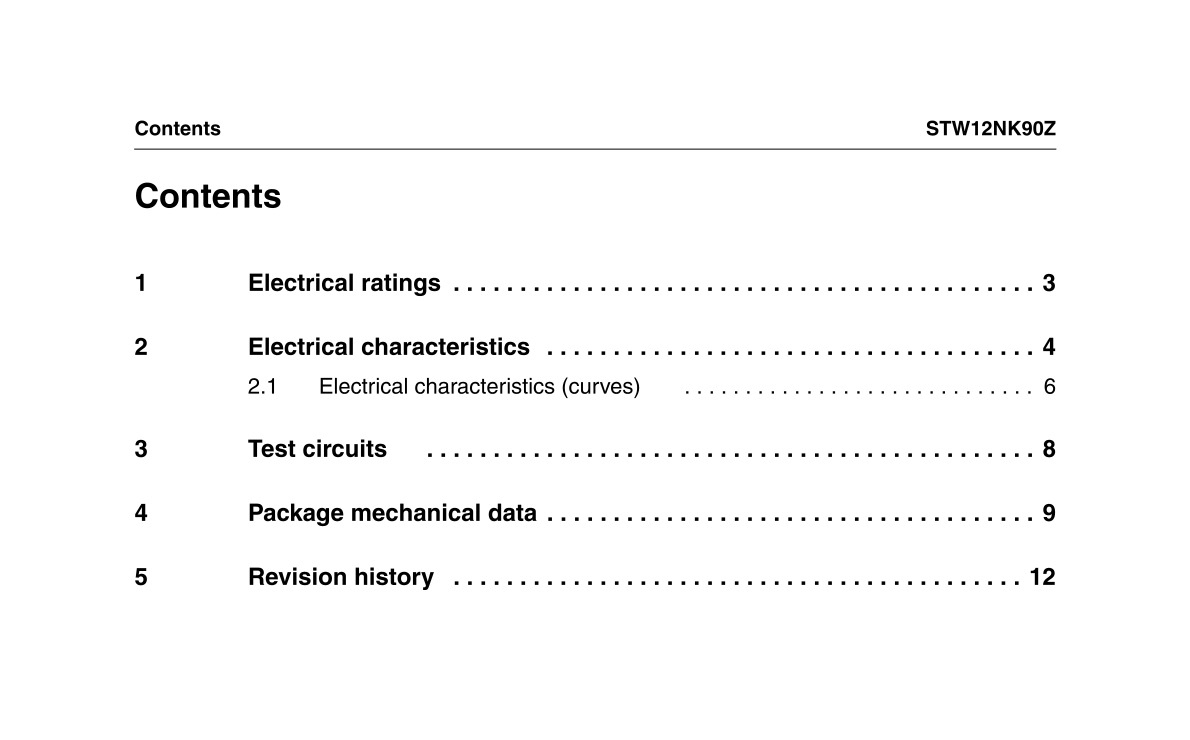

Product datasheet
For more information, please download
