Hot sale Original IRFB260N Power Field-Effect Transistor 56A I(D) 200V 0.04ohm 1-Element N-Channel Silicon

Manufacturer Product Number
IRFB260N
Description

IRFB260N Power Field-Effect Transistor 56A I(D) 200V 0.04ohm 1-Element N-Channel Silicon Metal-oxide Semiconductor FET TO-220AB TO-220AB 3 PIN

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details


SMPS MOSFET
VDSS   RDS(on) max   ID
200V   0.040Ω           56A

Benefits
Low Gate-to-Drain Charge to Reduce Switching Losses
Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001)
Fully Characterized Avalanche Voltage and Current
High frequency DC-DC converters
Applications


Product Description


TypeDescription
ANSC PART#ANSC- IRFB260N
Ihs ManufacturerOriginal
Part Package CodeTO-220AB
Package DescriptionFLANGE MOUNT, R-PSFM-T3
Pin Count3
Avalanche Energy Rating (Eas)450 mJ
Case ConnectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min200 V
Drain Current-Max (ID)56 A
Drain-source On Resistance-Max0.04 Ω
FET TechnologyMETAL-OXIDE SEMICONDUCTOR
Number of Elements1
Number of Terminals3
Operating ModeENHANCEMENT MODE
Operating Temperature-Max175 °C
Package Body MaterialPLASTIC/EPOXY
Package ShapeRECTANGULAR
Package StyleFLANGE MOUNT
Polarity/Channel TypeN-CHANNEL
Power Dissipation-Max (Abs)380 W
Pulsed Drain Current-Max (IDM)220 A
Qualification StatusNot Qualified
Surface MountNO
Terminal FinishTIN LEAD
Terminal FormTHROUGH-HOLE
Terminal PositionSINGLE
Transistor ApplicationSWITCHING
Transistor Element MaterialSILICON

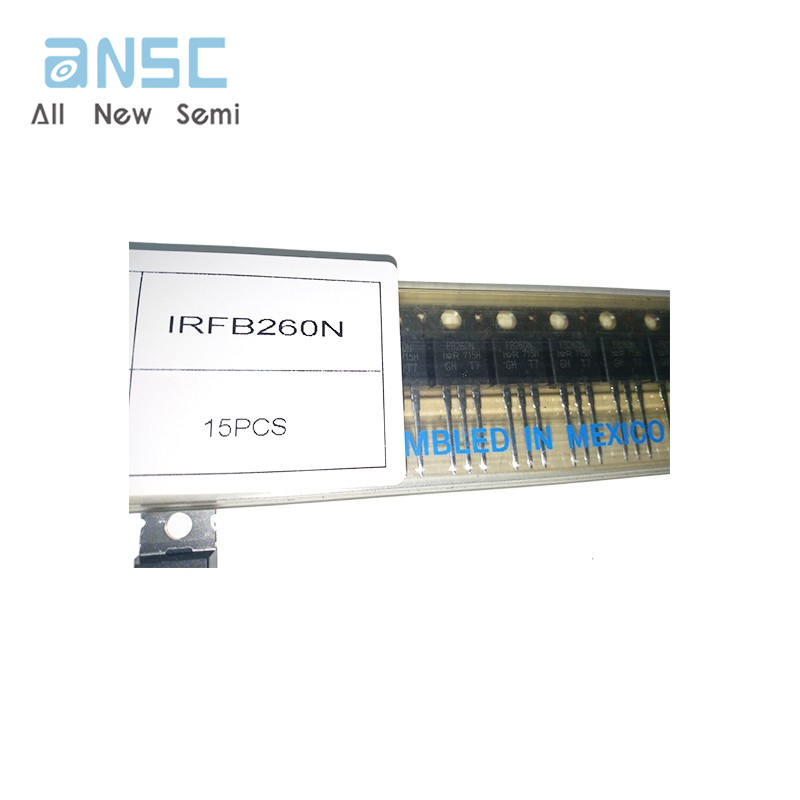

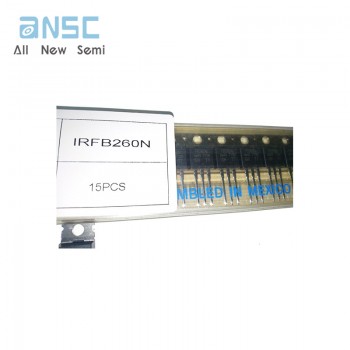

Actual image of the product

IRFB260N

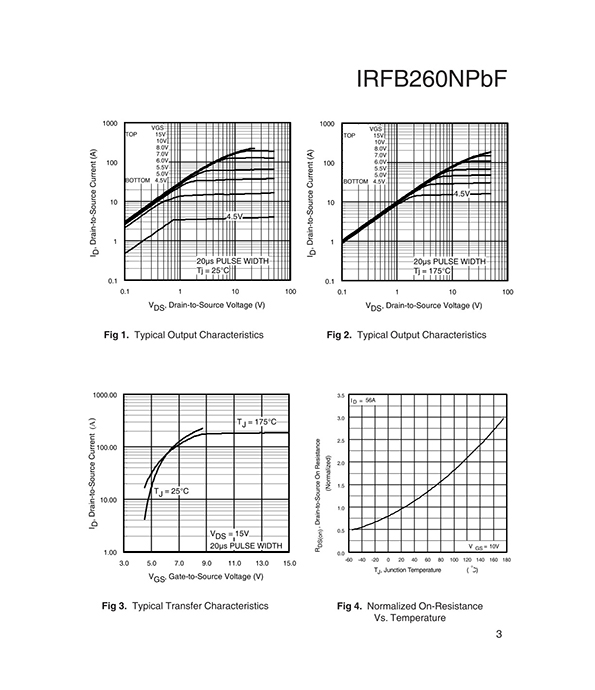

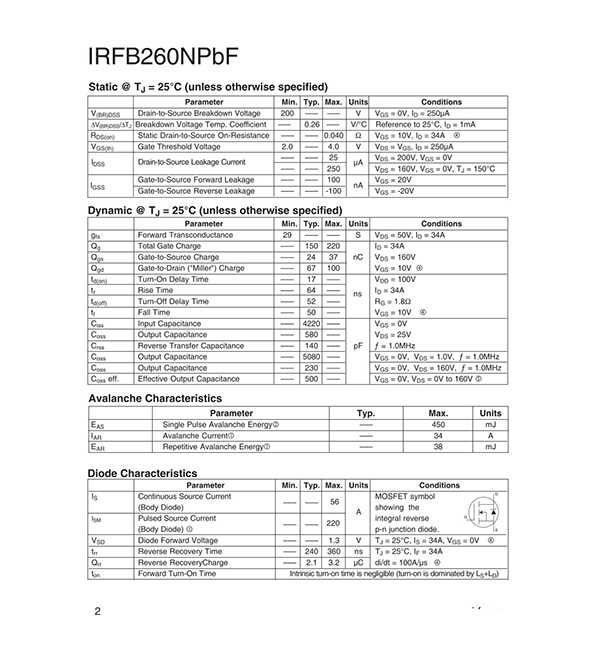

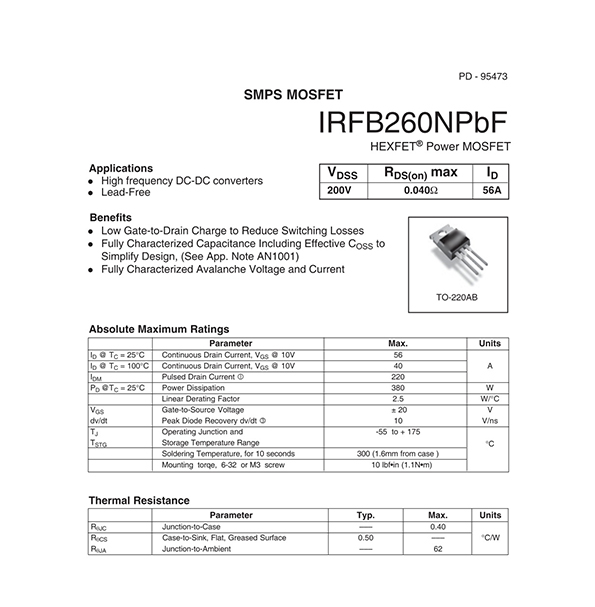

Product datasheet

For more information, please download
