Hot sale original 2N2219A Bipolar (BJT) Transistor NPN 30 V 800 mA 250MHz 800 mW Through Hole TO-39
Manufacturer Product Number
2N2219A
Description
2N2219A Transistors TRANS NPN 30V 0.8A TO-39
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Product Description:
The 2N2219A is a low leakage current NPN bipolar junction transistor (BJT), designed for switching applications. This device features a low leakage current, making it suitable for applications where high reliability and low power consumption are required.
Product Features
Low leakage current for improved reliability and reduced power consumption
High current rating of 600mA and power dissipation of 800mW
High frequency operation up to 300MHz
Low collector-emitter saturation voltage of 1V
Compact package with a diameter of 9.4mm and a height of 6.6mm
Lead-free and RoHS3 compliant
Operating temperature range of -55°C to 175°C
Product Applications
Switching applications in consumer electronics, such as audio amplifiers and power supplies
Industrial control systems, including motor control and power conversion
Automotive applications, including engine management and safety systems
Secondary applications include RF amplifiers and oscillators
Product Description
Type | Description |
|---|---|
Category | Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors |
Mfr | / |
Series | - |
Packaging | Tube |
Part Status | Obsolete |
Transistor Type | NPN |
Current - Collector (Ic) (Max) | 800 mA |
Voltage - Collector Emitter Breakdown (Max) | 30 V |
Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA |
Current - Collector Cutoff (Max) | 100nA (ICBO) |
DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
Power - Max | 800 mW |
Frequency - Transition | 250MHz |
Operating Temperature | 175°C (TJ) |
Mounting Type | Through Hole |
Package / Case | TO-205AD, TO-39-3 Metal Can |
Supplier Device Package | TO-39 |
Base Product Number | 2N22 |

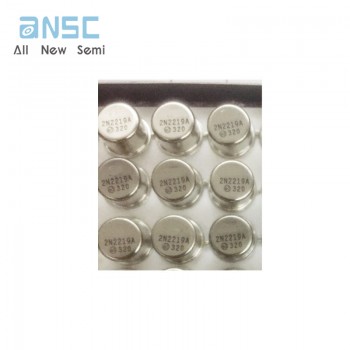

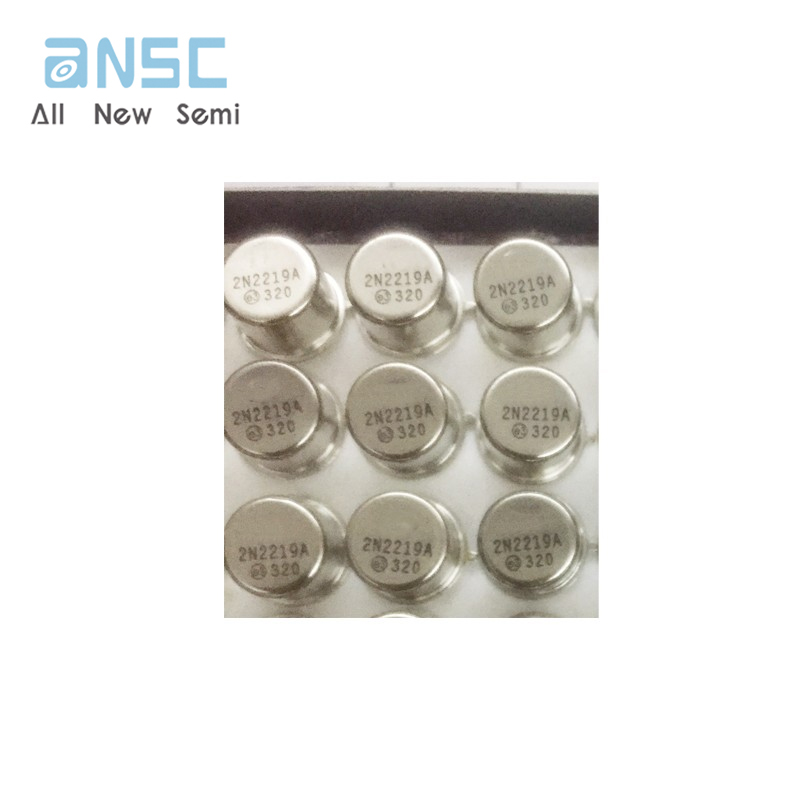

Actual image of the product

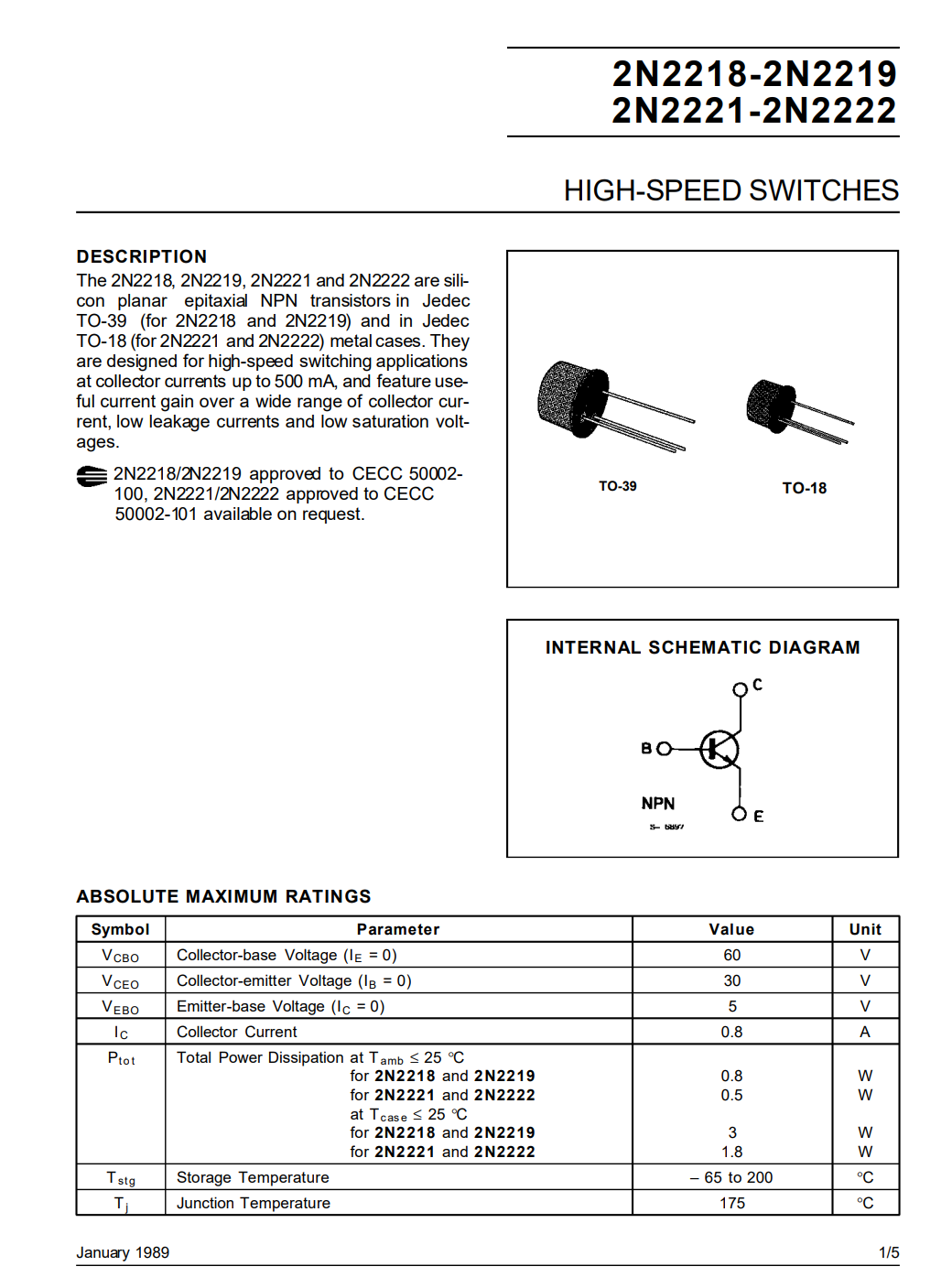

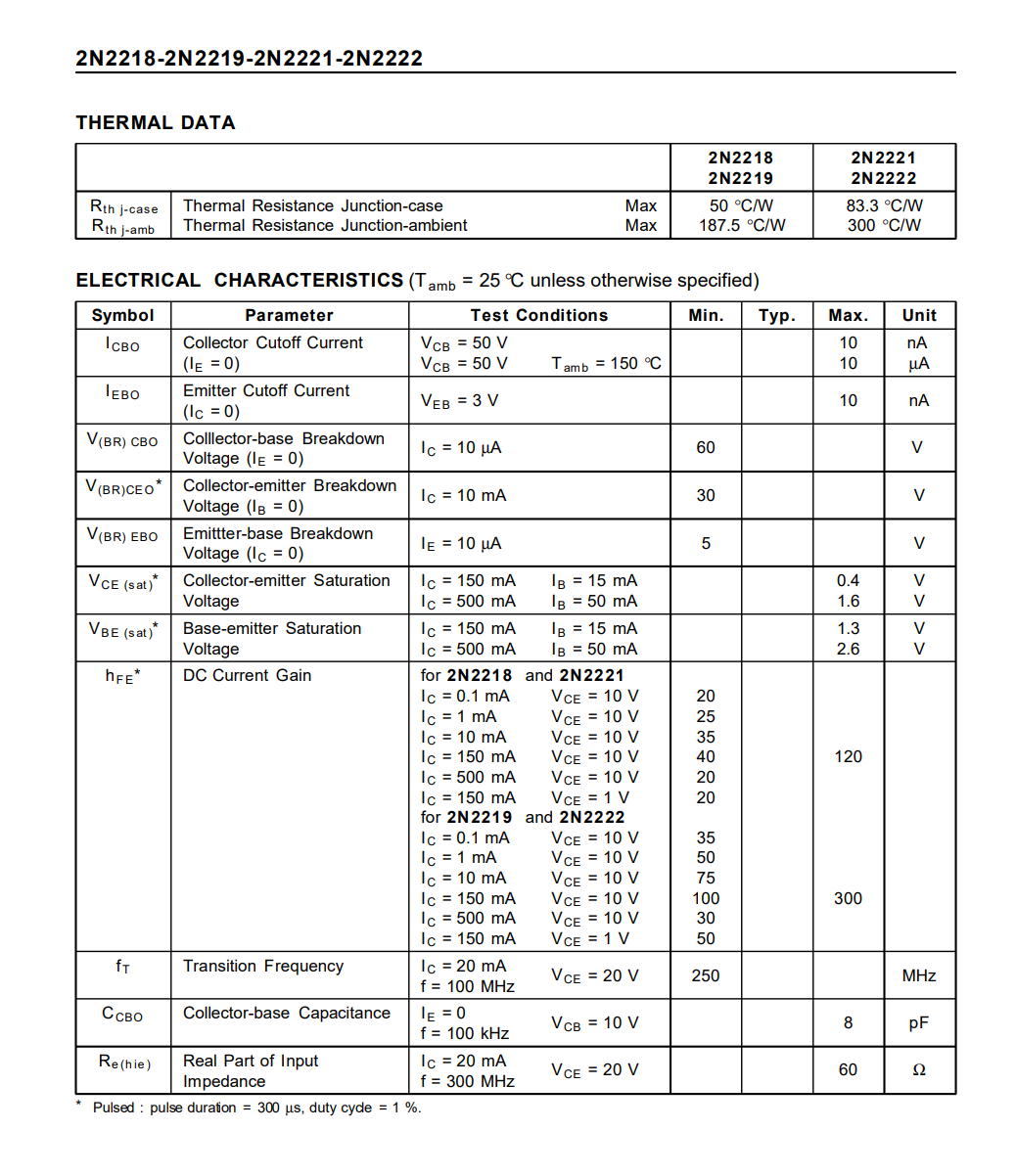

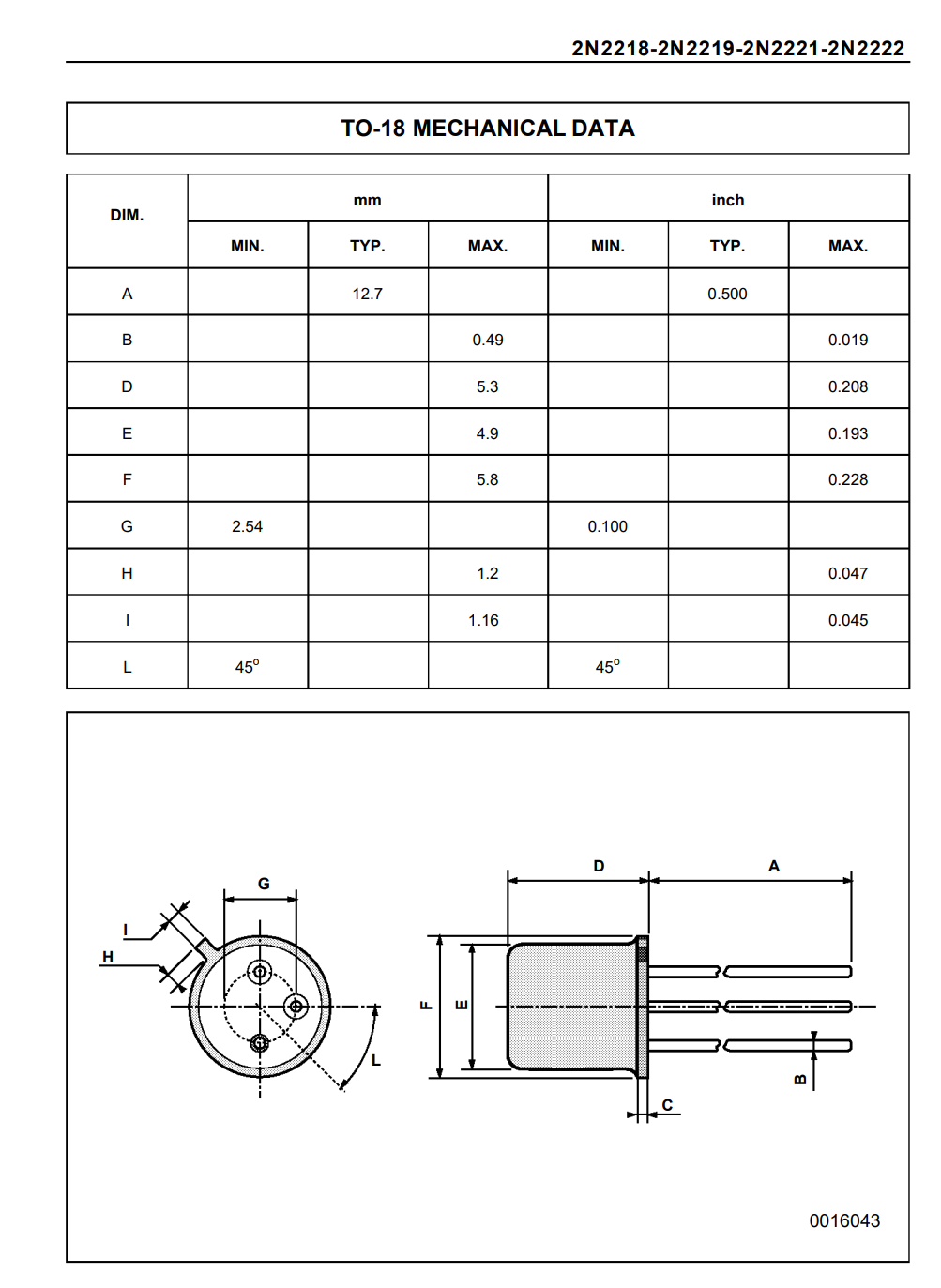

Product datasheet
For more information, please download
