Hot sale Original BCR533 Transistor Small Signal Bipolar Transistor 0.5A I(C) 50V V(BR)CEO 1-Element NPN Silicon SOT23 3PIN
Manufacturer Product Number
BCR533
Description
Original BCR533 Transistor Small Signal Bipolar Transistor 0.5A I(C) 50V V(BR)CEO 1-Element NPN Silicon SOT23 3PIN
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| ANSC PART# | ANSC -BCR533 |
| Ihs Manufacturer | / |
| Part Package | SOT-23 |
| Package Description | SMALL OUTLINE, R-PDSO-G3 |
| Pin Count | 3 |
| Samacsys Manufacturer | / |
| Additional Feature | BUILT-IN BIAS RESISTOR RATIO 1 |
| Collector Current-Max (IC) | 0.5 A |
| Collector-Emitter Voltage-Max | 50 V |
| Configuration | SINGLE WITH BUILT-IN RESISTOR |
| DC Current Gain-Min (hFE) | 70 |
| JESD-30 Code | R-PDSO-G3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | NPN |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 100 MHz |

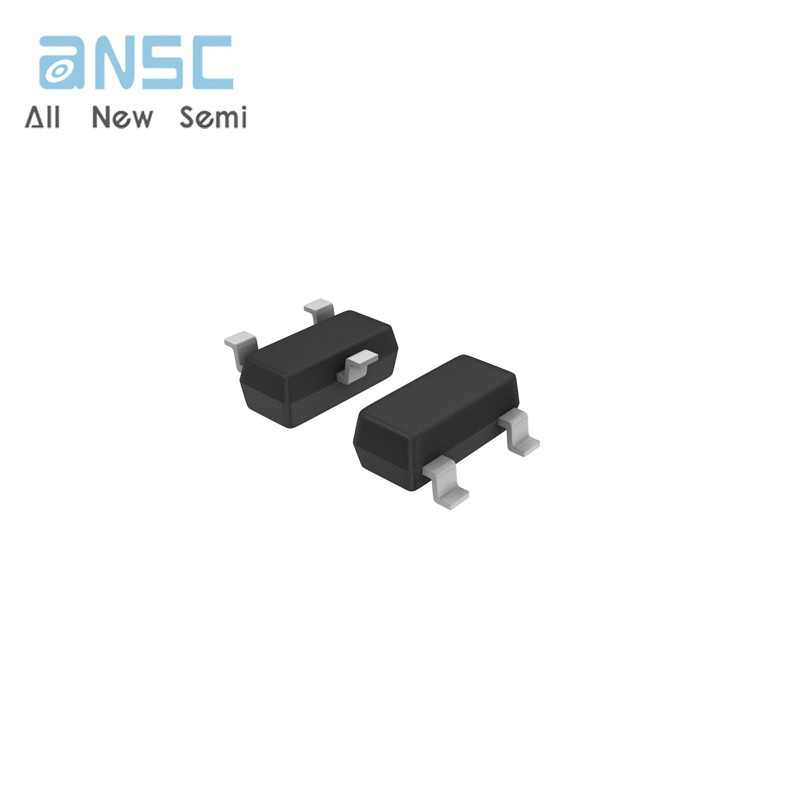

Product Photos

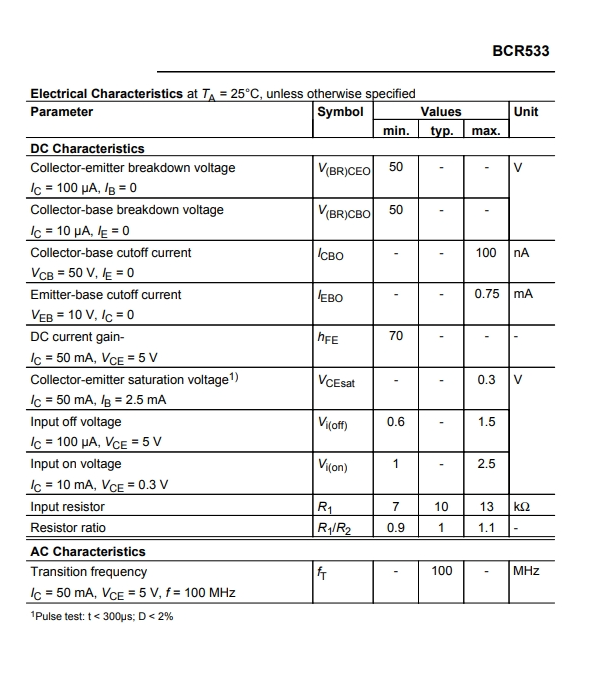

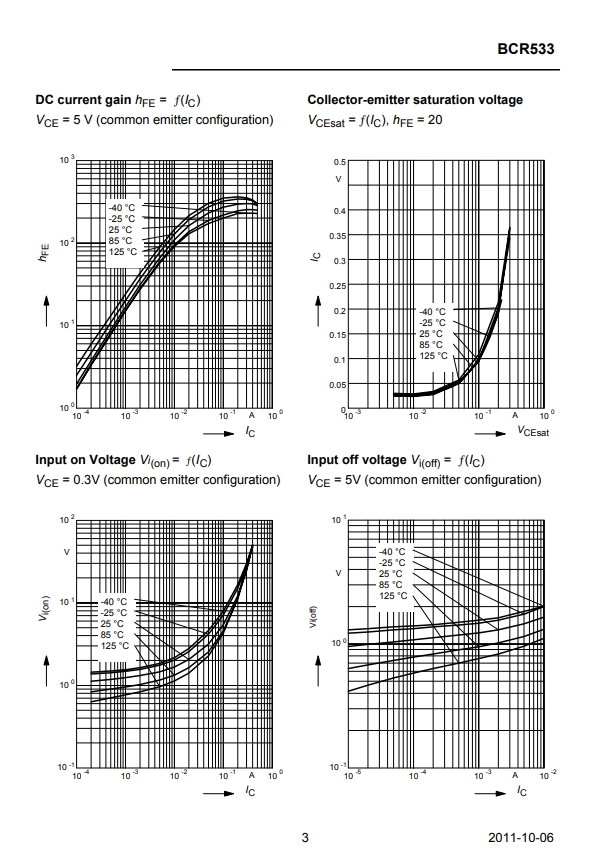

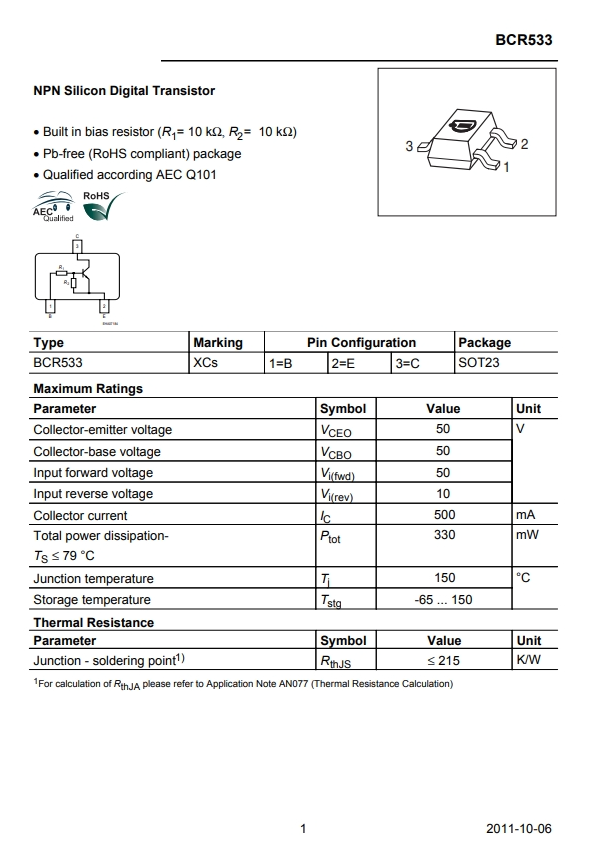

Product datasheet
For more information, please download
