Hot sale Original ATP304-TL-H Transistors MOSFET (Metal Oxide) P-Channel 60 V 100A (Ta) 90W (Tc) Surface Mount ATPAK
Manufacturer
Manufacturer Product Number
ATP304-TL-H
Description
Original ATP304-TL-H Transistors MOSFET (Metal Oxide) P-Channel 60 V 100A (Ta) 90W (Tc) Surface Mount ATPAK
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Product Description
The ATP304-TL-H is a P-Channel Enhancement Mode MOSFET from ON Semiconductor, designed for surface-mount applications. This MOSFET features a high avalanche energy rating of 656 mJ, making it suitable for high-power switching applications. The device has a maximum continuous drain current of 100A and a maximum drain-source voltage of 60V.
Product Features
· High avalanche energy rating of 656 mJ
· Maximum continuous drain current of 100A
· Maximum drain-source voltage of 60V
· Low drain-source on-resistance of 0.0089 Ohm
· High power dissipation of 90W
· Operating temperature range of -40°C to 150°C
· RoHS3 compliant and lead-free
· Available in a tape and reel packaging
Product Applications
· Primary applications: High-power switching, motor control, and power conversion
· Secondary applications: Audio amplifiers, DC-DC converters, and power supplies
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - ATP304-TL-H |
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
onsemi |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
FET Type |
P-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
60 V |
|
Current - Continuous Drain (Id) @ 25°C |
100A (Ta) |
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V |
|
Rds On (Max) @ Id, Vgs |
6.5mOhm @ 50A, 10V |
|
Vgs(th) (Max) @ Id |
- |
|
Gate Charge (Qg) (Max) @ Vgs |
250 nC @ 10 V |
|
Vgs (Max) |
±20V |
|
Input Capacitance (Ciss) (Max) @ Vds |
13000 pF @ 20 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
90W (Tc) |
|
Operating Temperature |
150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
ATPAK |
|
Package / Case |
ATPAK (2 Leads+Tab) |
|
Base Product Number |
ATP304 |

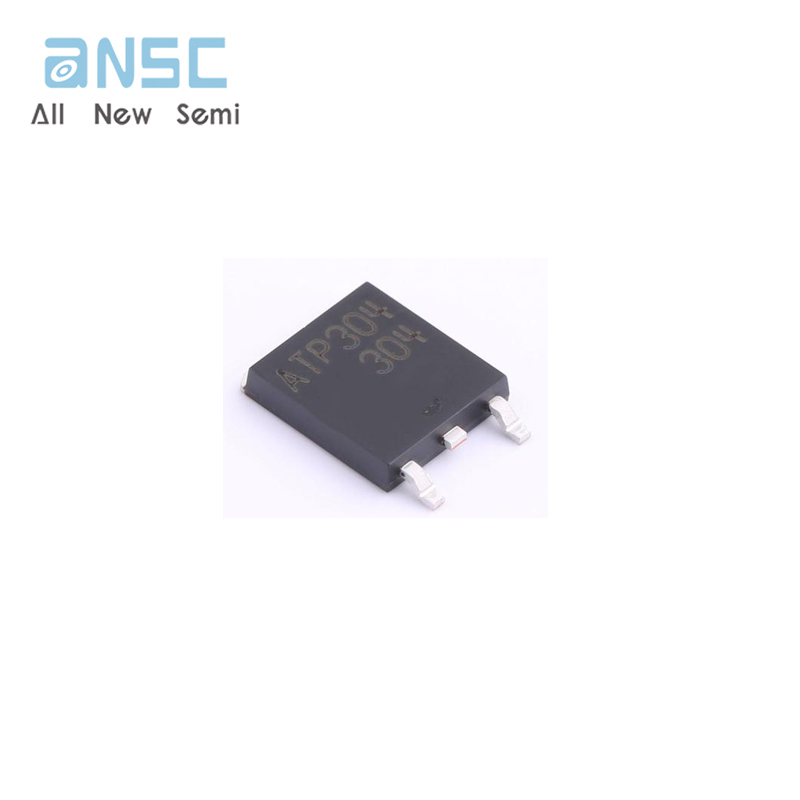

Actual image of the product
