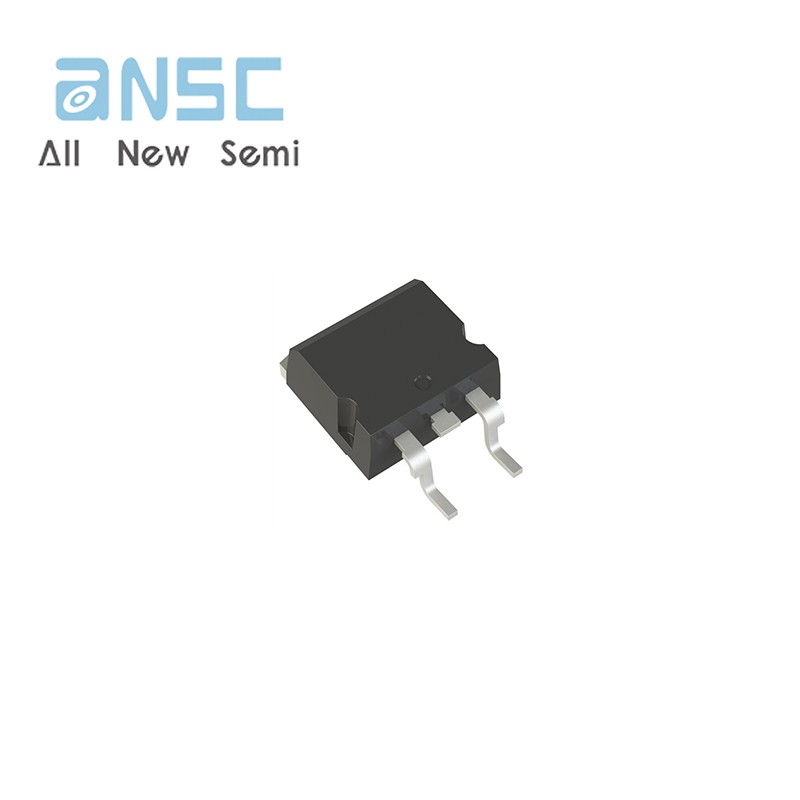

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original STB42N60M2-EP Transistors MOSFET N-Channel 600 V 34A (Tc) 250W (Tc) Surface Mount TO-263 (D2PAK)
Manufacturer
Manufacturer Product Number
STB42N60M2-EP
Description
Original STB42N60M2-EP Transistors MOSFET (Metal Oxide) N-Channel 600 V 34A (Tc) 250W (Tc) Surface Mount TO-263 (D2PAK)
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Product Overview
An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 2370pF @ 100V is its maximum input capacitance.The drain current is the maximum continuous current the device can conduct, and this device has 34A continuous drain current (ID).For this transistor to work, a voltage 600V is required between drain and source (Vdss).
Product Features
a continuous drain current (ID) of 34A
a 600V drain to source voltage (Vdss)
Product Applications
There are a lot of STMicroelectronics
STB42N60M2-EP applications of single MOSFETs transistors.
· AC-DC Power Supply
· Synchronous Rectification for ATX 1 Server I Telecom PSU
· Motor drives and Uninterruptible Power Supplies
· Micro Solar Inverter
· DC/DC converters
· Power Tools
· Motor Drives and Uninterruptible Power Supples
· Synchronous Rectification
· Battery Protection Circuit
· Telecom 1 Sever Power Supplies
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - STB42N60M2-EP |
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
STMicroelectronics |
|
Series |
MDmesh™ M2-EP |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
600 V |
|
Current - Continuous Drain (Id) @ 25°C |
34A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
87mOhm @ 17A, 10V |
|
Vgs(th) (Max) @ Id |
4.75V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
55 nC @ 10 V |
|
Vgs (Max) |
±25V |
|
Input Capacitance (Ciss) (Max) @ Vds |
2370 pF @ 100 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
250W (Tc) |
|
Operating Temperature |
150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
TO-263 (D2PAK) |
|
Package / Case |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
|
Base Product Number |
STB42 |
Actual image of the product

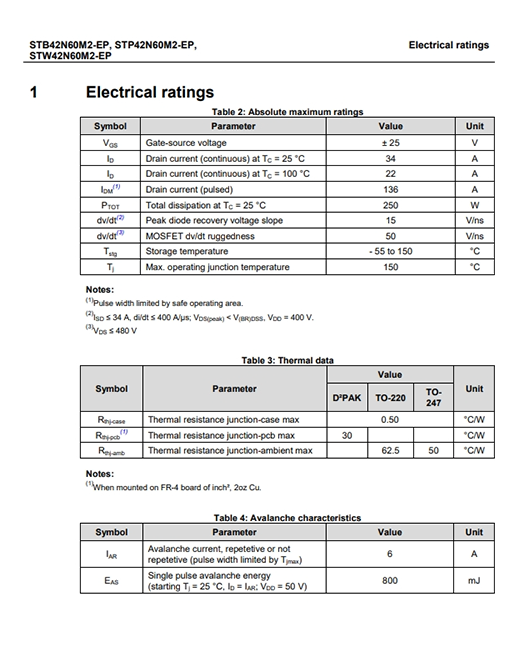

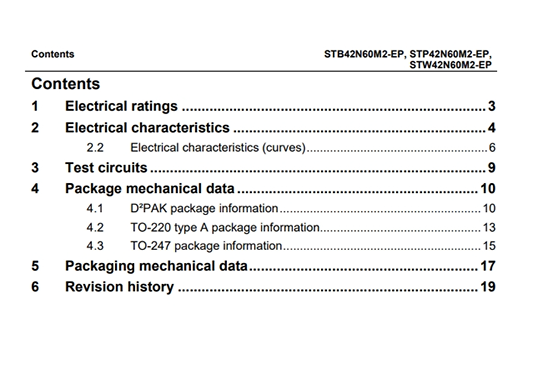

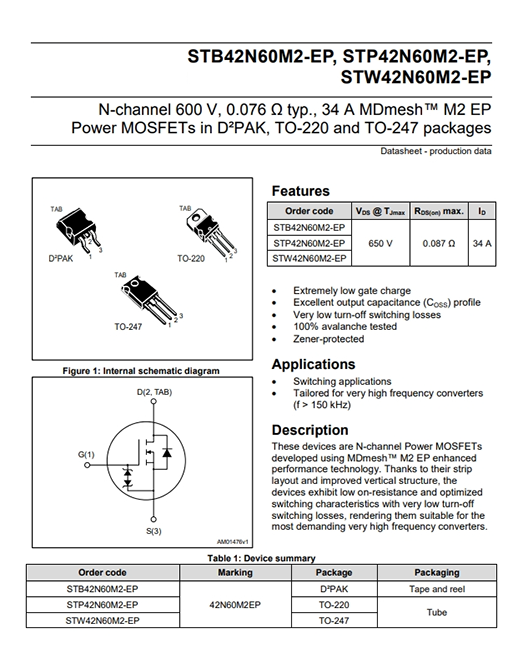

Product datasheet
For more information, please download
