Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original IRFB4115PbF Transistors MOSFET (Metal Oxide) N-Channel 150 V 104A (Tc) 380W (Tc) Through Hole
Manufacturer Product Number
IRFB4115PbF
Description
IRFB4115PbF Transistor, 104A I(D) 150V 0.011ohm 1-Element N-Channel
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Benefits
● Improved Gate, Avalanche and Dynamic dV/dt
Ruggedness
● Fully Characterized Capacitance and Avalanche
SOA
● Enhanced body diode dV/dt and dI/dt Capability
● Lead-Free
● RoHS Compliant, Halogen-Free
Applications
● High Efficiency Synchronous Rectification in SMPS
● Uninterruptible Power Supply
● High Speed Power Switching
● Hard Switched and High Frequency Circuits
Product Description
| Type# | Description |
| ANSC PART# | ANSC -IRFB4115PbF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | / |
| Series | HEXFET® |
| Packaging | Tube |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 104A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 62A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5270 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 380W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
| Base Product Number | IRFB4115 |

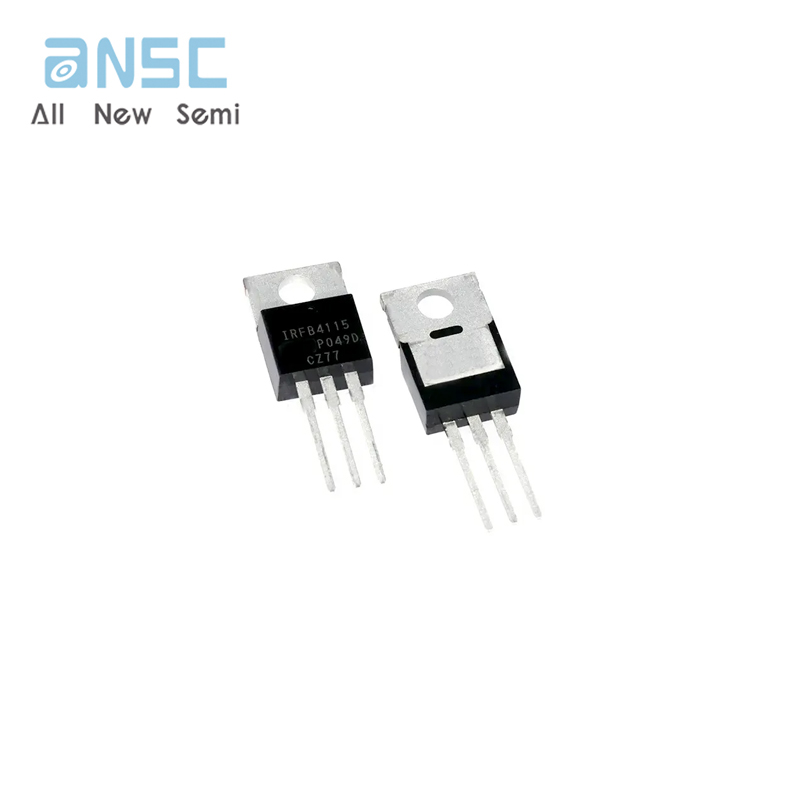

Actual image of the product

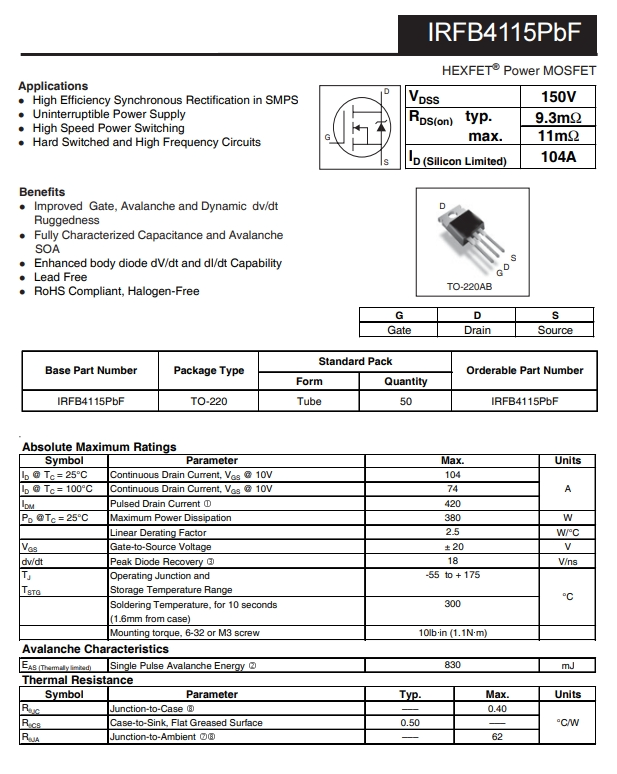

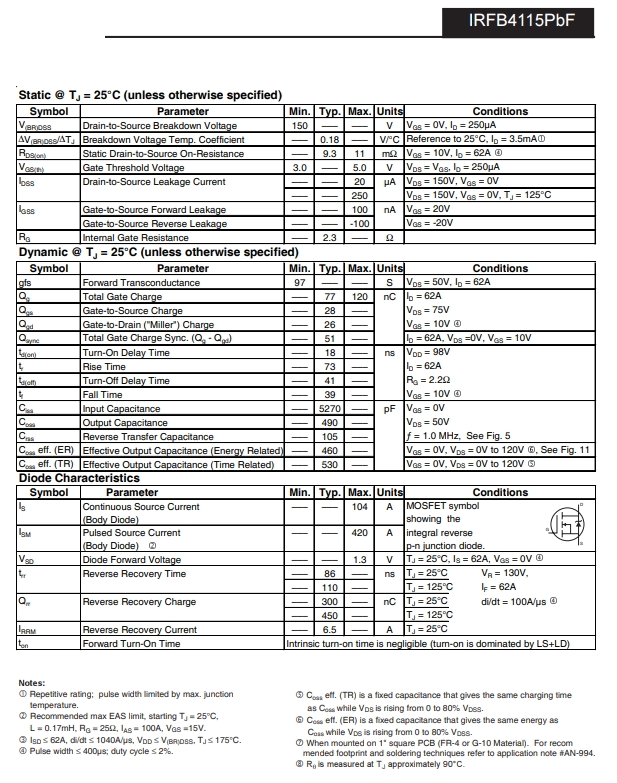

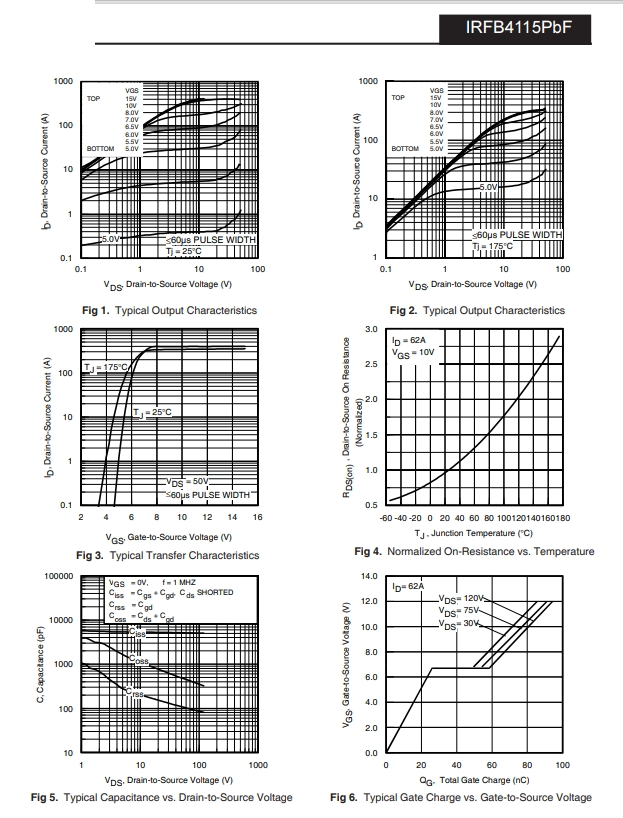

Product datasheet
For more information, please download
