Hot offer Ic chip Transistor Ikw50n60t Igbt Tube Welding Machine Mo Field Effect for Inverter
Manufacturer Product Number
IKW50N60T
Description
IKW50N60T Transistor 80A I(C) 600V V(BR)CES N-Channel TO-247AC GREEN PLASTIC
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
The IKW50N60T is a high-performance Trench Field Stop IGBT (Insulated Gate Bipolar Transistor) , designed for demanding power electronic applications. This IGBT is packaged in a reliable TO-247 case and is RoHS compliant, making it an eco-friendly choice for modern electronics.
Product Features
-
High voltage capability with a maximum collector-emitter breakdown voltage of 600V
-
High current handling with a maximum collector current of 80A
-
Low on-state voltage drop (Vce(on)) of 2V at 15V and 50A
-
Fast switching times and high frequency operation
-
Trench Field Stop technology for improved ruggedness and reliability
Product Applications
-
Primary applications:
-
Power supplies and converters
-
Motor drives and control systems
-
Renewable energy systems and grid infrastructure
-
-
Secondary applications:
-
Aerospace and defense systems
-
Industrial automation and control systems
-
Medical devices and equipment
-
Product Description
| Product Attribute | Attribute Value |
| Part# | IKW50N60T |
| Manufacturer: | / |
| Product Category: | Transistors |
| Technology: | Si |
| Package / Case: | TO-247-3 |
| Mounting Style: | Through Hole |
| Configuration: | Single |
| Collector- Emitter Voltage VCEO Max: | 600 V |
| Collector-Emitter Saturation Voltage: | 1.5 V |
| Maximum Gate Emitter Voltage: | - 20 V, 20 V |
| Continuous Collector Current at 25 C: | 80 A |
| Pd - Power Dissipation: | 333 W |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 175 C |
| Series: | Trenchstop IGBT3 |
| Packaging: | Tube |
| Continuous Collector Current Ic Max: | 80 A |
| Gate-Emitter Leakage Current: | 100 nA |
| Height: | 20.9 mm |
| Length: | 15.9 mm |
| Product Type: | IGBT Transistors |
| Factory Pack Quantity: | 240 |
| Subcategory: | IGBTs |
| Tradename: | TRENCHSTOP |
| Width: | 5.03 mm |
| Unit Weight: | 1.340411 oz |

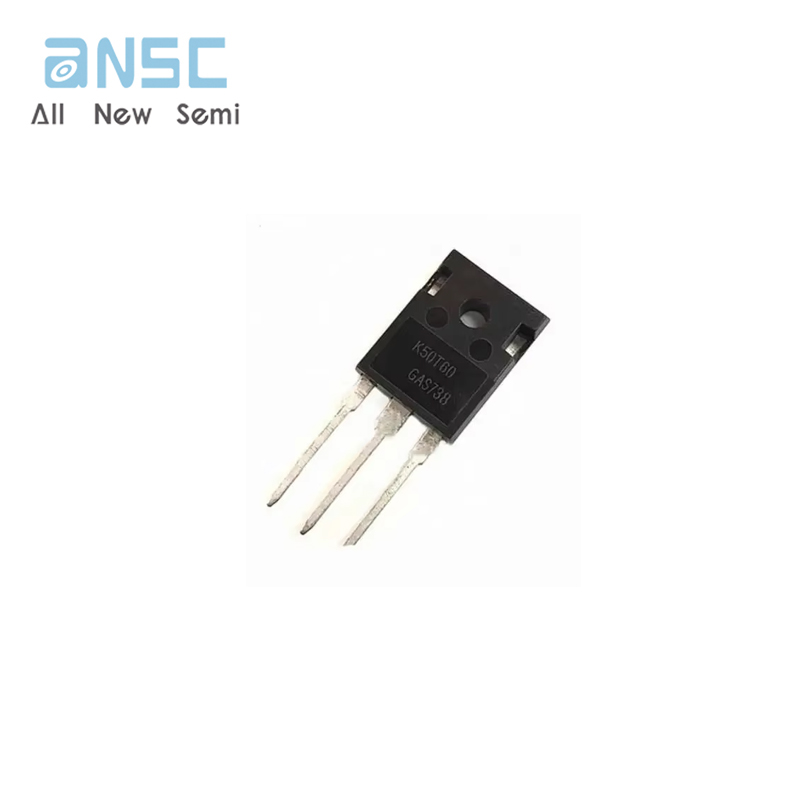

Actual image of the product

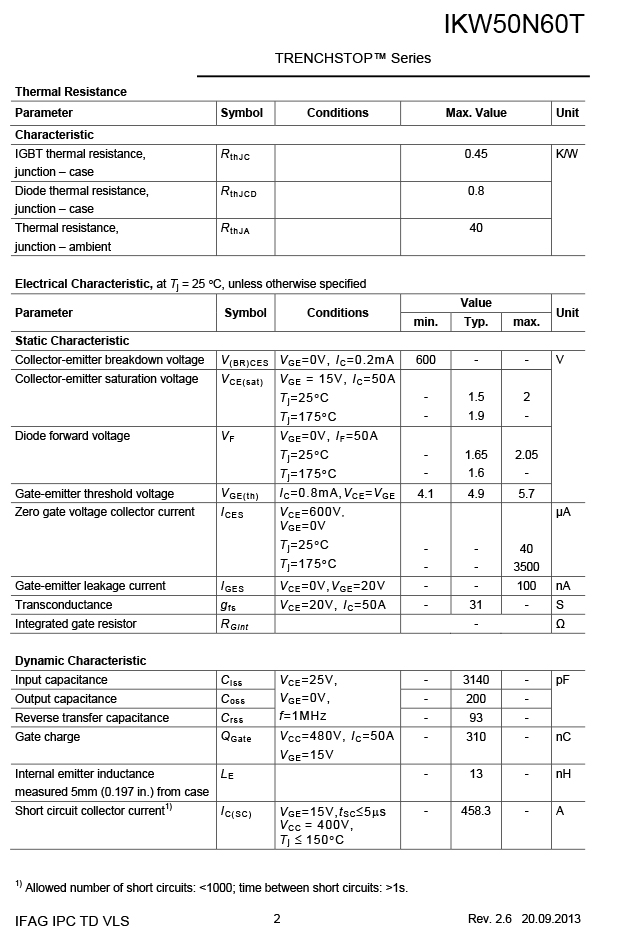

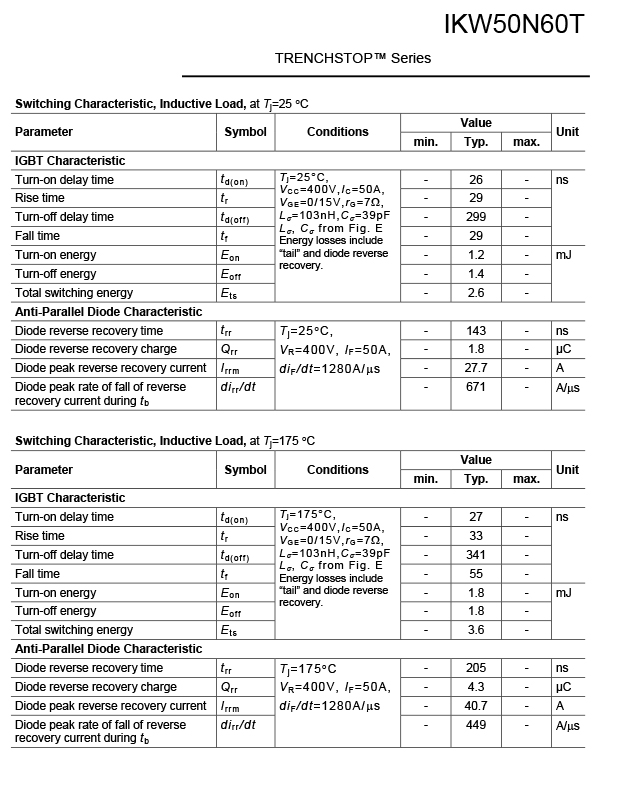

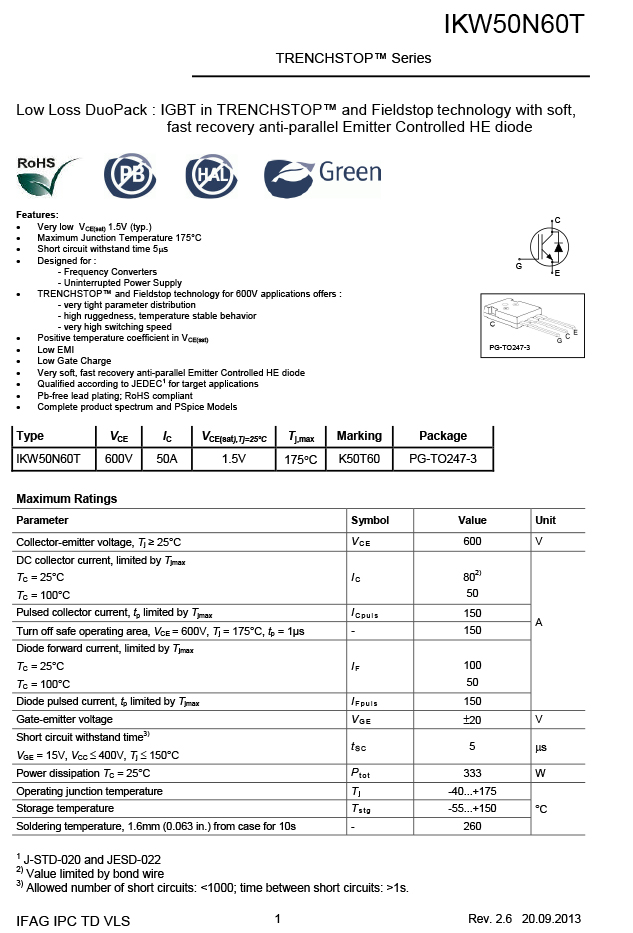

Product datasheet
For more information, please download
