Hot sale original IRF5305PBF MOSFET P-CH 55V 31A TO220AB P-Channel 55 V 31A (Tc) 110W (Tc) Through Hole
Manufacturer Product Number
IRF5305PBF
Description
IRF5305PBF MOSFET P-CH 55V 31A TO220AB P-Channel 55 V 31A (Tc) 110W (Tc) Through Hole TO-220AB
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
Process Technology
l Dynamic dv/dt Rating
l 175°C Operating Temperature
l Fast Switching
l P-Channel
l Fully Avalanche Rated
Product Description
Type | Description |
|---|---|
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
Mfr | - |
Series | HEXFET® |
Packaging | Tube |
Part Status | Active |
FET Type | P-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 55 V |
Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) | 10V |
Rds On (Max) @ Id, Vgs | 60mOhm @ 16A, 10V |
Vgs(th) (Max) @ Id | 4V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs | 63 nC @ 10 V |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 1200 pF @ 25 V |
FET Feature | - |
Power Dissipation (Max) | 110W (Tc) |
Operating Temperature | -55°C ~ 155°C (TJ) |
Grade | - |
Qualification | - |
Mounting Type | Through Hole |
Supplier Device Package | TO-220AB |
Package / Case | TO-220-3 |
Base Product Number | IRF5305 |

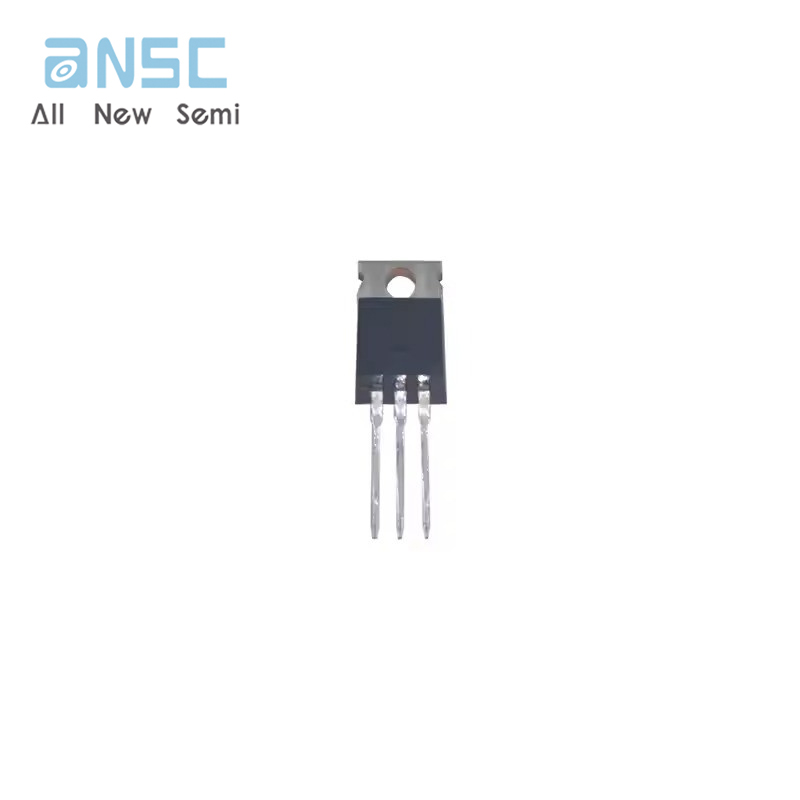

Actual image of the product

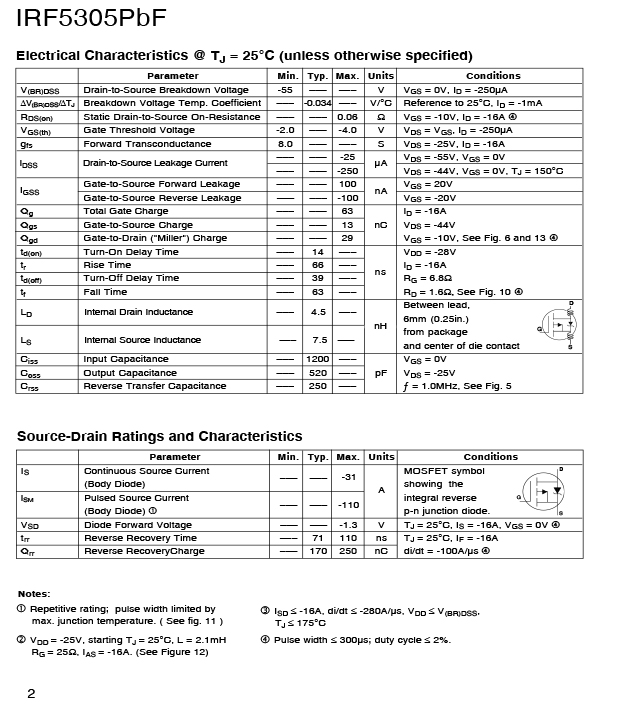

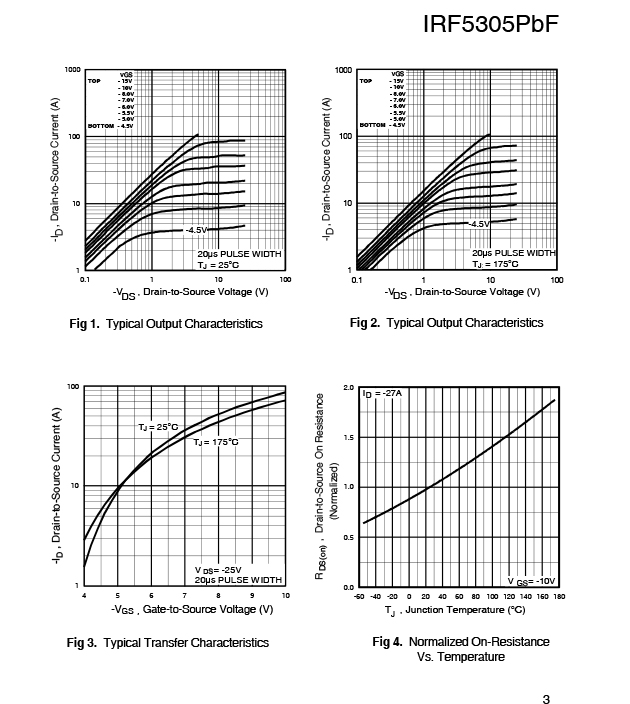

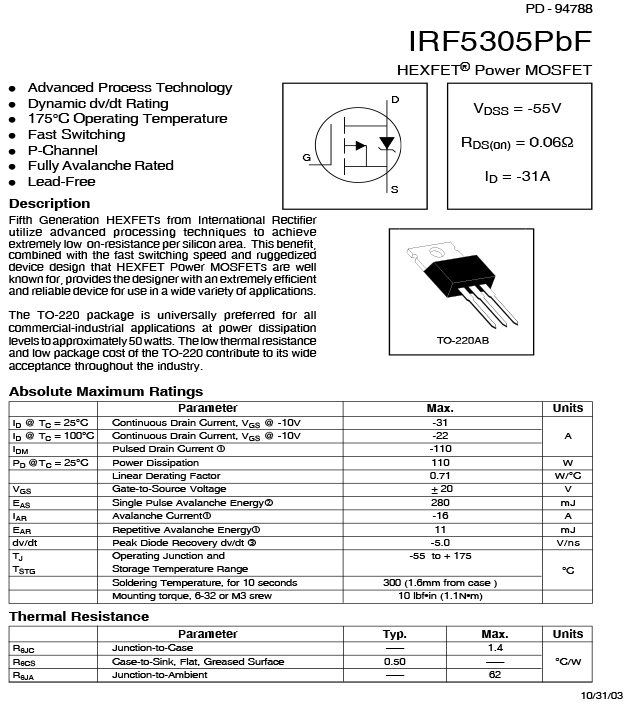

Product datasheet
For more information, please download
