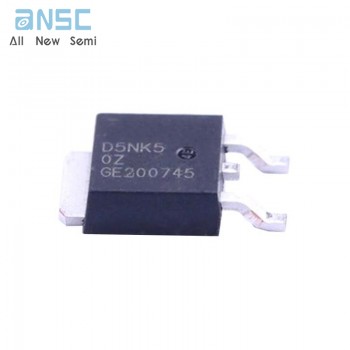

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce STD5NK50ZT4 N-Channel 500 V 4.4A (Tc) 70W (Tc) Surface Mount DPAK spot stock
Manufacturer Product Number
STD5NK50ZT4
Description
STD5NK50ZT4 N-Channel 500 V 4.4A (Tc) 70W (Tc) Surface Mount DPAK spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These high-voltage devices are Zener-protected N-channel Power MOSFETsdeveloped using the SuperMESH™ technology by STMicroelectronics, anoptimization of the well-established PowerMESH™. In addition to a significantreduction in on-resistance, these devices are designed to ensure a high level of dv/dtcapability for the most demanding applications .
Product Features
• 100% avalanche tested
• Gate charge minimized
• Very low intrinsic capacitance
• Zener-protected
Product Applications
• Switching applications
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-STD5NK50ZT4 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | SuperMESH™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 535 pF @ 25 V |
| Power Dissipation (Max) | 70W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | STD5NK50 |

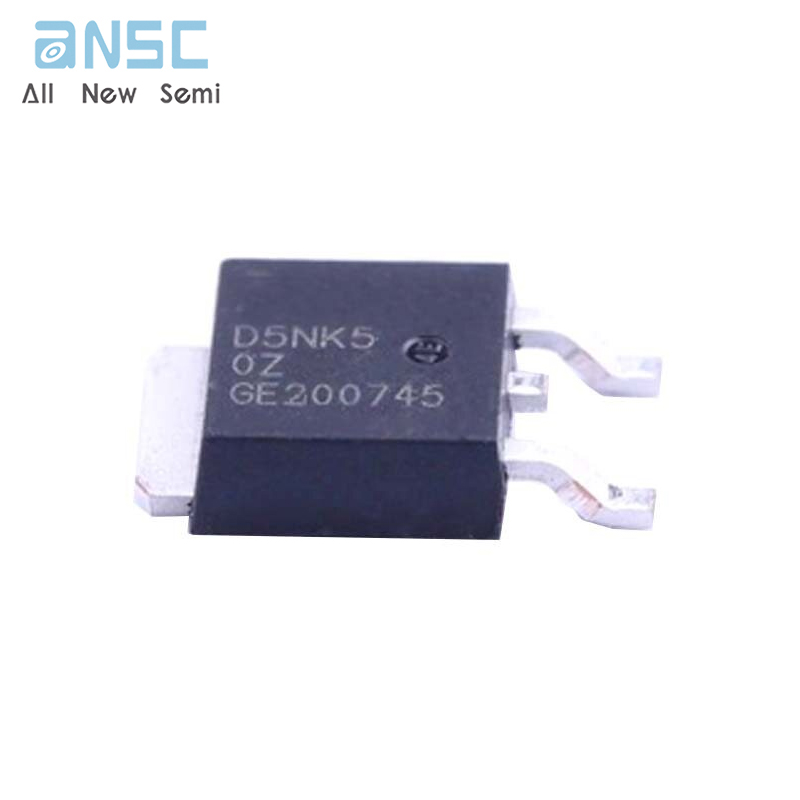

Product Photos
For more product information, please download the PDF
