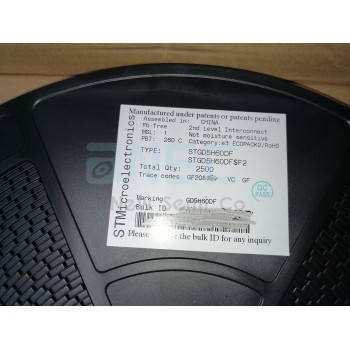

Hot offer One-Stop BOM distribution service electronic components STGD5H60DF TRENCH GATE FIELD-STOP IGBT, H S
Manufacturer Product Number
STGD5H60DF
Description
IGBT TRENCH FS 600V 10A DPAK
Package Condition
Tape and Reel
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Specifications
| Part# | STGD5H60DF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| IGBTs | |
| Single IGBTs | |
| Mfr | - |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 10 A |
| Current - Collector Pulsed (Icm) | 20 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 5A |
| Power - Max | 83 W |
| Switching Energy | 56µJ (on), 78.5µJ (off) |
| Input Type | Standard |
| Gate Charge | 43 nC |
| Td (on/off) @ 25°C | 30ns/140ns |
| Test Condition | 400V, 5A, 47Ohm, 15V |
| Reverse Recovery Time (trr) | 134.5 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | STGD5 |
