Hot sale Original 2N4235 TRANS PNP 60V 1A TO-205AD Bipolar (BJT) Transistor PNP 1W Through Hole TO-205AD

Product Details

Brief Description: The 2N4235 is a NPN bipolar junction transistor (BJT) .

It is a single-element, through-hole mounted transistor with a maximum collector current of 1A and

a maximum power dissipation of 1W.

Product Features

• Collector-base voltage (VCBO): 60V

• Collector-emitter voltage (VCEO): 60V

• Maximum collector current (Ic): 1A

• DC current gain (hFE) minimum: 40 at 100mA and 1V

• Emitter-base voltage (VEBO): 7V

• Maximum operating temperature: 200°C

• Minimum operating temperature: -65°C

• Power dissipation: 1W

• Mounting type: Through-hole

• Number of pins: 3

• Package: TO-205AD, TO-39-3 Metal Can

• Polarity: NPN

• Radiation hardening: No

• RoHS compliant: No

Application Grade: The 2N4235 is a general-purpose transistor suitable for a wide range of applications, including audio amplifiers, power supplies, and motor control circuits.

Product Applications

• Audio amplifiers

• Power supplies

• Motor control circuits

• General-purpose switching and amplification applications

Overall, the 2N4235 is a reliable and versatile transistor that can be used in a variety of electronic applications. Its high current handling capability, high power dissipation, and wide operating temperature range make it suitable for use in a range of environments and applications.

Product Description

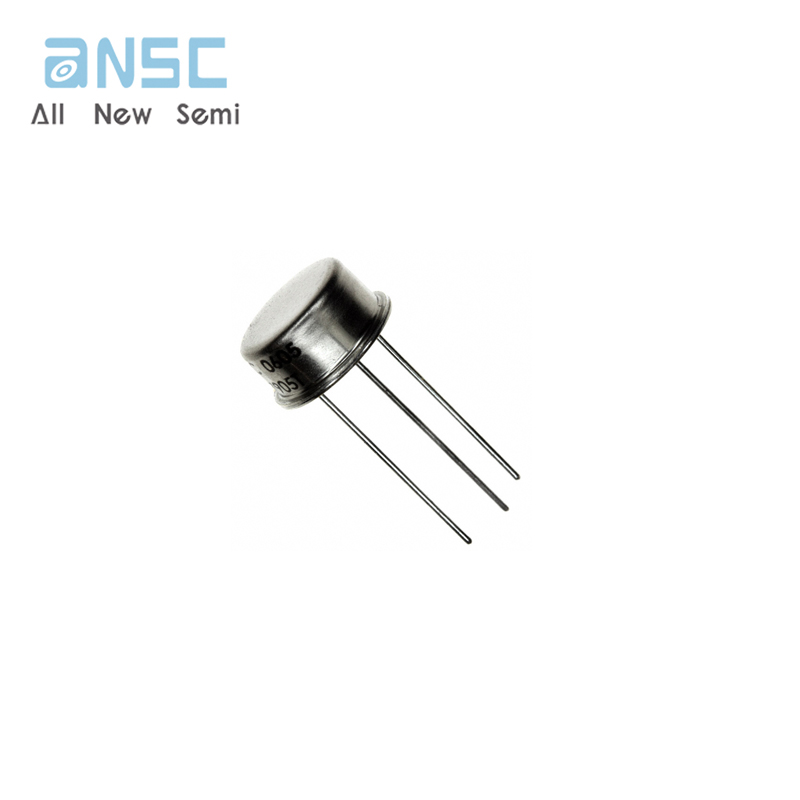

Actual image of the product

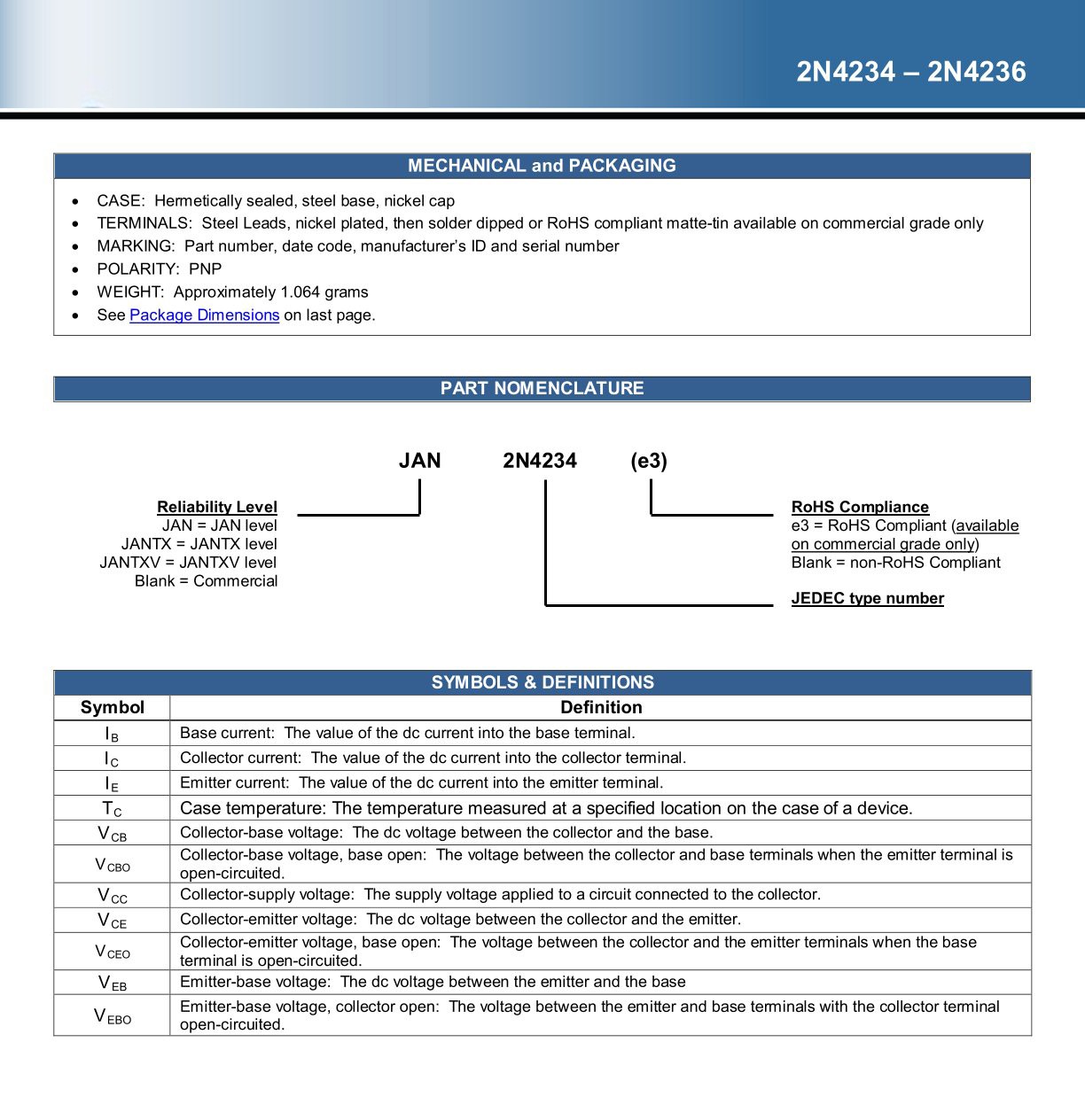

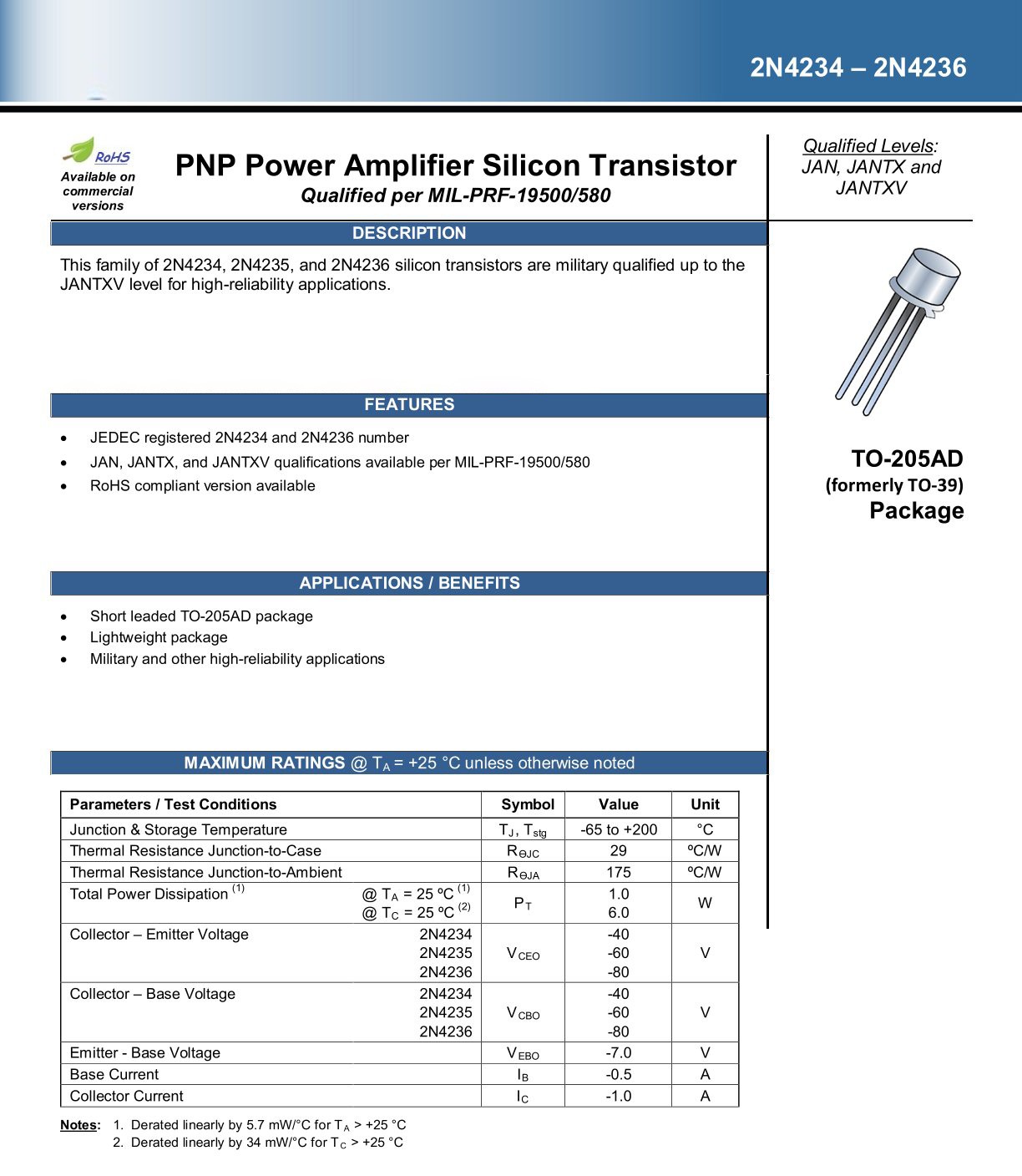

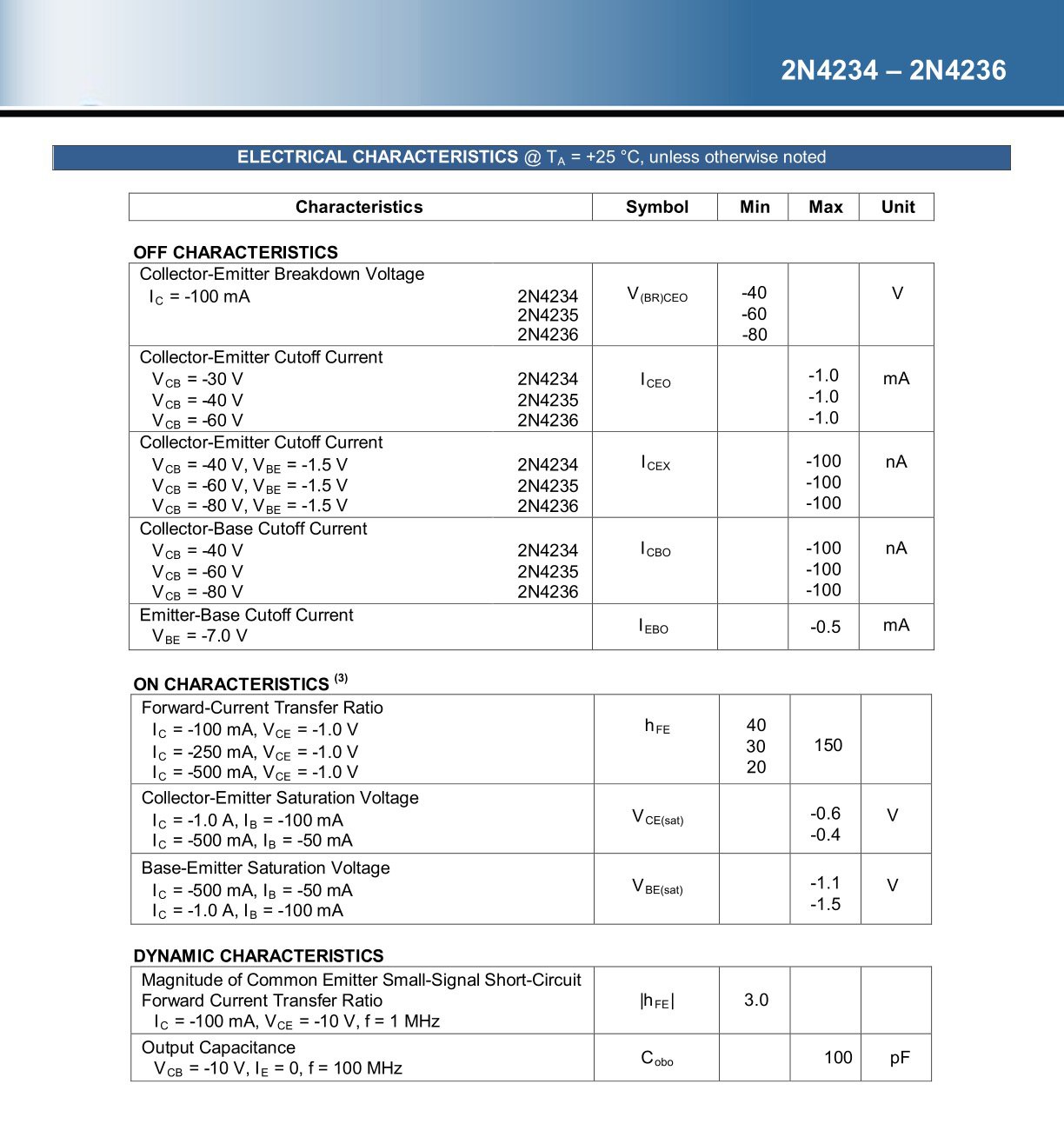

Product datasheet

For more information, please download
