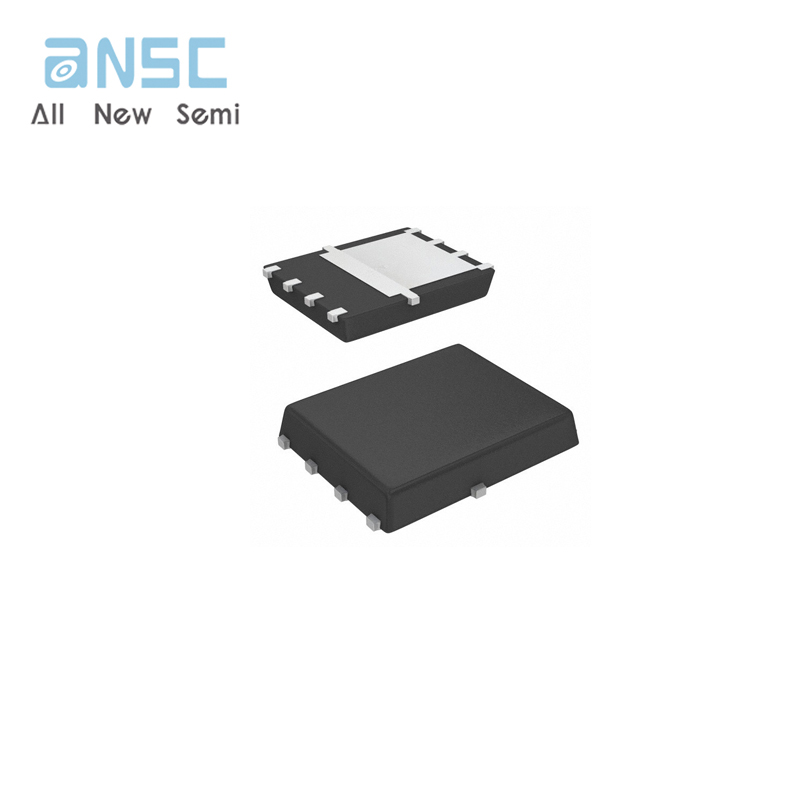

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original BSC047N08NS3GATMA1 Transistors MOSFET N-Channel 80 V 18A (Ta), 100A (Tc) 2.5W (Ta), 125W (Tc) Surface Mount
Manufacturer Product Number
BSC047N08NS3GATMA1
Description
Original BSC047N08NS3GATMA1 Transistors MOSFET N-Channel 80 V 18A (Ta), 100A (Tc) 2.5W (Ta), 125W (Tc) Surface Mount PG-TDSON-8-1
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
This BSC047N08NS3GATMA1 power MOSFET can not only be used for amplifying electronic signals but also for switching between electronic signals. Its maximum power dissipation is 2500 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This device is made with optimos technology. This N channel MOSFET transistor operates in enhancement mode.
Product Features
● Ideal for high frequency switching and sync. rec.
● Optimized technology for DC/DC converters
● Excellent gate charge x RDS(on) product (FOM)
● Very low on-resistance RDS(on)
● Superior thermal resistance
● N-channel, normal level
● 100% avalanche tested
● Pb-free plating; RoHS compliant
● Qualified according to JEDEC for target applications
● Halogen-free according to IEC61249-2-21
Product Applications
● Solar
● Consumer
● Telecom
● Server
● PC power
● DC-DC
● AC-DC
● Adapter
● SMPS
● LED
● Motor control
Product Description
| Type | Description |
| ANSC PART# | ANSC- BSC047N08NS3GATMA1 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 4.7mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 90µA |
| Gate Charge (Qg) (Max) @ Vgs | 69 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4800 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-1 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | BSC047 |
