You can contact me for the best price PD84001 RF Small Signal Field-Effect Transistors

Manufacturer Product Number

PD84001

Description

PD84001 RF Small Signal Field-Effect Transistors

Package Condition

Tape & Reel (TR)Cut Tape (CT)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

HF to 2000 MHz Class AB Common Source - PowerSO-10RF

VHF / UHF radio and digital cellular BTS applications

HF to 2000MHz class AB common source - PowerFLAT

VHF / UHF radio applications

HF to 2000MHz class AB common cource - ceramic packages

UHF TV and digital cellular BTS applications

2 to 400MHz class AB common source N channel MOSFETs

HF / SSB, FM / VHF broadband applications

2 to 30MHz class AB linear, common emitter, HF / SSB

Product Description

Type#	Description
ANSC PART#	ANSC - PD84001
Ihs Manufacturer	Original
Package Description	PLASTIC, 4 PIN
Pin Count	4
Case Connection	SOURCE
Configuration	SINGLE
DS Breakdown Voltage-Min	18 V
Drain Current-Max (ID)	1.5 A
FET Technology	METAL-OXIDE SEMICONDUCTOR
Highest Frequency Band	ULTRA HIGH FREQUENCY BAND
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	4
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 °C
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	6 W
Power Gain-Min (Gp)	13 dB
Qualification Status	Not Qualified
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	FLAT
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON

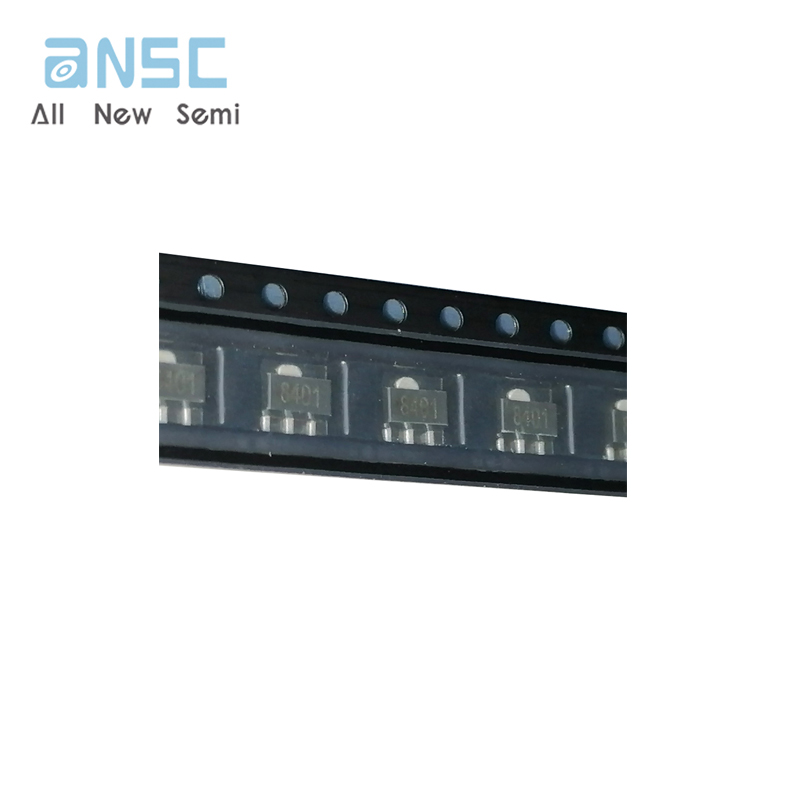

Product Photos

PD84001

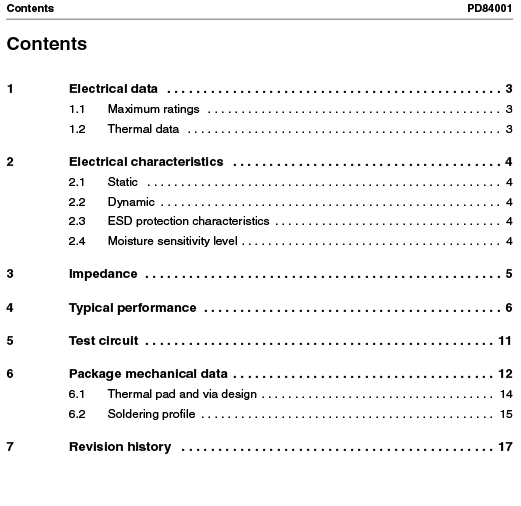

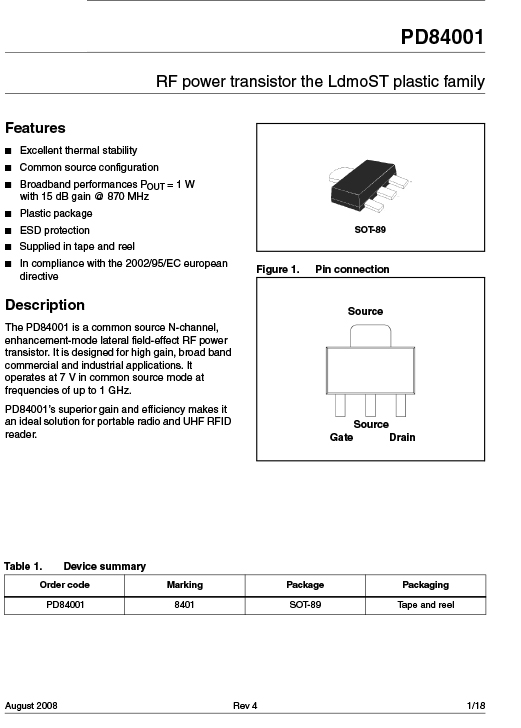

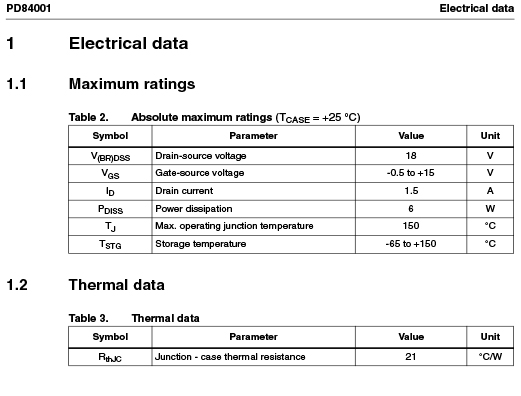

Product datasheet

For more information, please download
