Hot offer Professional supply Original BOM distribution service electronic components Transistor IRFB7446PBF

Manufacturer Product Number
IRFB7446PBF
Description

IRFB7446PBF Transistors N-Channel 40 V 120A (Tc) 99W (Tc) Through Hole TO-220AB

Package Condition
original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

DESCRIPTION
Third generation Power MOSFETs from  provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
FEATURES
• Dynamic dV/dt Rating
• Repetitive Avalanche Rated
• Fast Switching
• Ease of Paralleling
• Simple Drive Requirements
• Compliant to RoHS Directive 2002/95/EC

Product Description

Type Description
ANSC PART# ANSC - IRFB7446PBF
Category Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
Mfr Original
Series HEXFET®, StrongIRFET™
Packaging Tube
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 120A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 3.3mOhm @ 70A, 10V
Vgs(th) (Max) @ Id 3.9V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 93 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3183 pF @ 25 V
FET Feature -
Power Dissipation (Max) 99W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Grade -
Qualification -
Mounting Type Through Hole
Supplier Device Package TO-220AB
Package / Case TO-220-3
Base Product Number IRFB7446

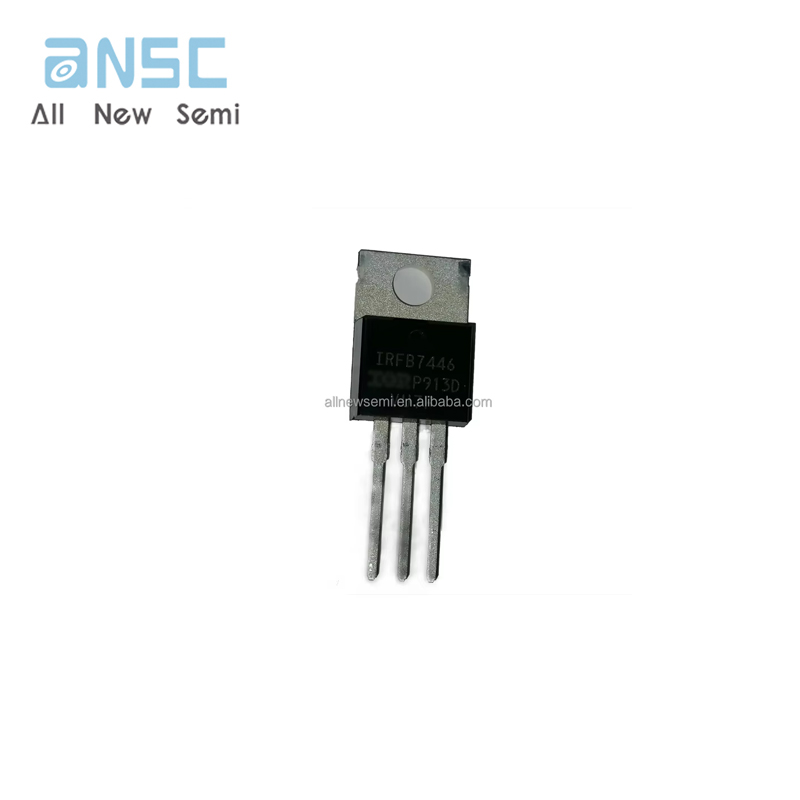

Actual image of the product

IRFB7446PBF

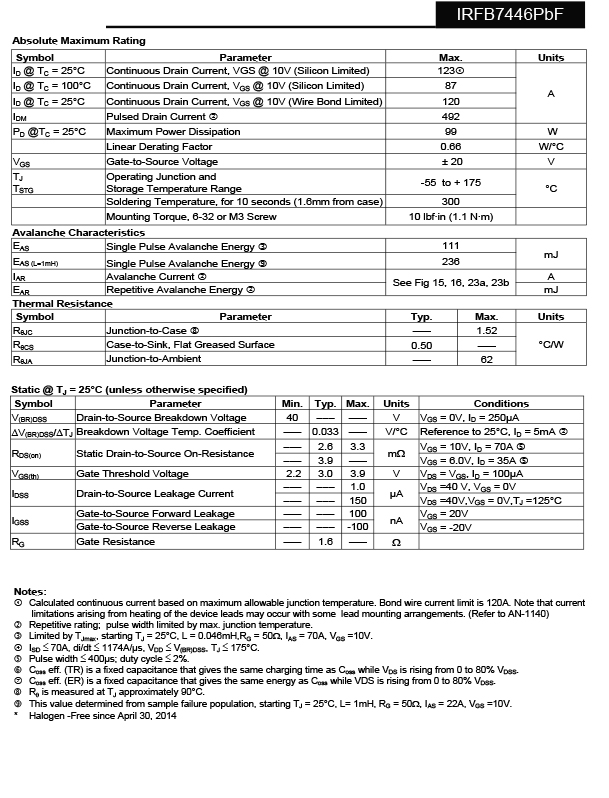

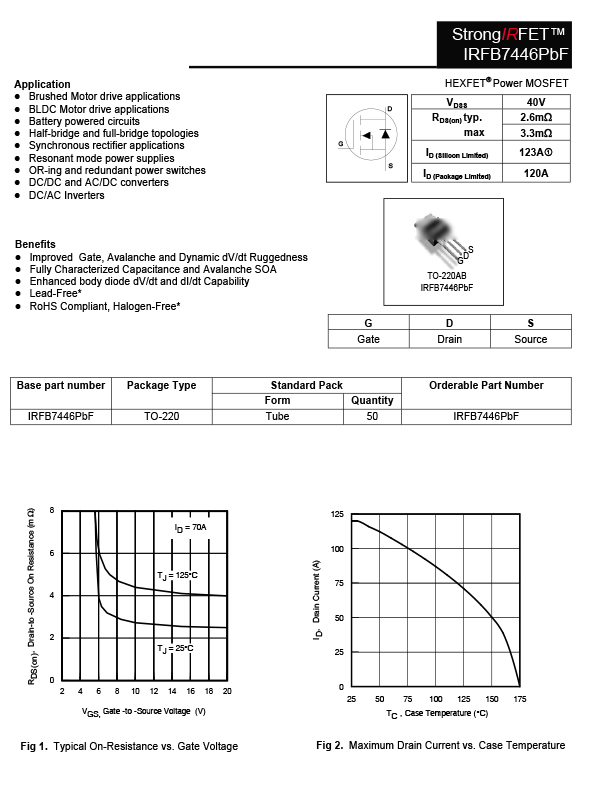

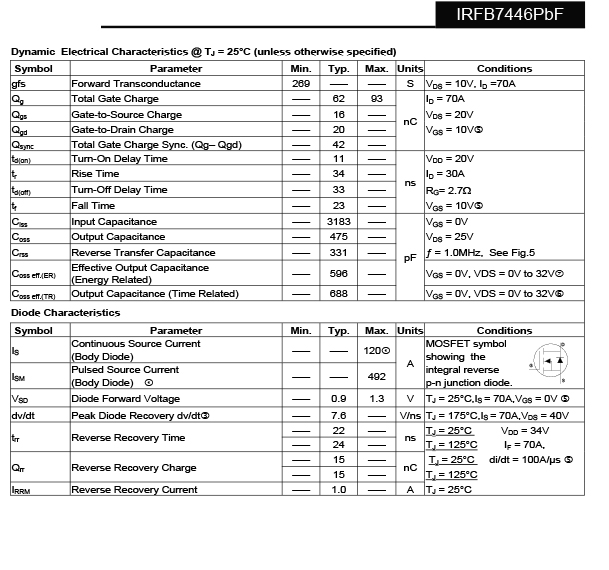

Product datasheet

For more information, please download
