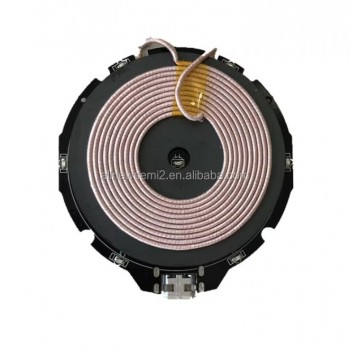

One-Stop Supply standard wireless charger diameter 50 mm PCBA semi-finished board nesting private die plate wireless charger

Manufacturer
Original
Manufacturer Product Number
ATM50MMTS
Description

wireless charger diameter 50 mm PCBA semi-finished board nesting private die plate wireless charger

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Q5 / K9 / 02A product parameters: 5W single coil
Scheme: /
Interface: Micro
Light indication: LED
Launch distance: 5-10mm
Charging current: 1000mA
Wireless charging and output: 5V-1A
Boost efficiency: 93%
Working frequency: 110-205KHZ
Wireless charging conversion efficiency: 75%
Compatible with  standard: WPC1.1
Protection measures: Over current, over temperature and short circuit protection
Plate width size: [02A]
Frame size: 64*32*1mm
Coil size: 50*50*1
[Q3]
Frame size: 57*55*1mm
Coil size: 50*50*1MM
[K9]
Frame size: 64*32*1mm
Coil size: 50*50*1MM

Actual image of the product







​

About us

Special price supply of AC-DC flash charging USB charging head scheme a + C port 18W high power PD fast charging module

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

 Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

How to get a custom type wireless charging and transmitting module quote:

1.What machine to use
2. Input voltage + current
3. Output voltage + current
4. Shape + size requirements
5. Coil requirements (1 coil? 2 coils? 3 coils or ..?)
6. Plug / Welding wire Detailed requirements
7. Quantity
8. Certification requirements
9. Other requirements



This is a customized product, please contact us for price and more details.
