wireless transmitting 5W wireless receiving mobile power USB output triple wireless transmitting and receiving PCBA
Manufacturer
Manufacturer Product Number
ATMR5W-FR3in1
Description
wireless transmitting 5W wireless receiving mobile power USB output triple wireless transmitting and receiving PCBA
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
5w wireless transmitting 5W wireless receiving mobile power USB
output triple wireless transmitting and receiving PCBA(Accept customization)
| 2.2 rated parameters | |||||
| Test conditions: ambient temperature 25 ° C. | |||||
| Test conditions | Rating | Inimum value | Maximum | Company | |
| Power consumption in standby mode | VCC = 5V, no load | Zero point seven four | Zero point five | One | mW |
| Working frequency | Adjust load and distance | / | One hundred and five | Two hundred and five | KHz |
| Transmission efficiency | VCC = 5V, bq51013xevm test | Seventy | Fifty | Seventy-six | % |
| Working voltage | 5W output | Five | Four point five | Five point five | V |
| Wireless output power | Fast mode | Five | Four point five | Five | W |
| USB output power | Constant voltage 4.75V | Ten point five | Ten | Twelve | W |
| Working distance | Bq51013xevm test | Six | One | Eight | mm |
| 3. Mechanical specifications | |
| 3.1 basic parameters | |
| PCB board size | 69*34*1.0mm |
| Component thickness on PCB | 3.9mm |
| Coil length | 15mm |
| Disk size | 49.5*49.5*1mm |
| Function and number: | |
| Product model: | Wireless transmission without interface protection cover, receiving PCBA with battery |
| Main functions: | |
| Standard Version: | WPC-1.2.4 |
| Product application: | compliant wireless charger |
| Charging type: | One to one charging in corresponding area |
| DC5V1A | |
| 6-8mm | |
| Charging current: | 1000mA |
| Transmitting power: | 5W |
| Working frequency: | 100-205KHz |
| Power conversion: | More than 75% |
| Charging mode: | Induction mode |
| Battery capacity: | 8000mAh |
| Power indication: | 1-4 LEDs |
| USB input: | 5V/2A |
| MICRUSB: | 5V/2A IN |
| Press the key to start the wireless charging |

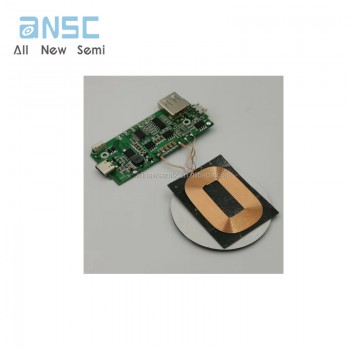

Actual image of the product
