24V TX RX module 5V1A high power wireless charger module

Manufacturer
Original
Manufacturer Product Number
T24V70C+R5VANSC
Description

24V TX RX module 5V1A high power wireless charger module

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

24V TX RX module 5V1A high power wireless charger module

Description

24V TX + 5V RX

Transmitter Module(TX):

TX input voltage: 24VDC

PCBA Size: 32*18.5*12mm

Coil size: outer diameter 70mm * thickness 3mm

Receiver Module (RX):

RX output voltage: 5VDC

Output voltage: 15mm distance 5V/2A 20mm distance 5V/1A

PCBA size: outer diameter 25mm * thickness 5mm

Coil size: outer diameter 50mm* thickness 2.5mm


Note:1.When working, the working surface of the transceiver coil is parallel and concentric with more than 8MM
             2.It is forbidden to cover the working surface of the transmitting coil with metal blocks.

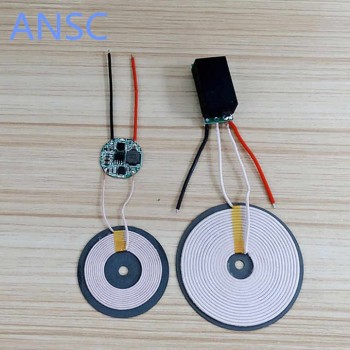

Actual image of the product







​
