Off line voice controlled LED desk lamp touch dimming lamp 10W fast charging Wireless charging desk lamp desk eye protection
Manufacturer
Manufacturer Product Number
ATM-WD102-Z-FR
Description
Off line voice controlled LED desk lamp touch dimming lamp 10W fast charging Wireless charging desk lamp desk eye protection
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| [Instructions for use] |
| 1. Connect the USB data charging cable to qc2.0 or qc3.0 power adapter (please use a good brand power supply to avoid affecting the use effect). |
| 2. Connect the micro interface of USB charging cable with the charging board. |
| 3. Wireless charging mode |
| Place the equipment with Qi standard wireless charging receiving device on the center of the wireless charging table lamp, and the positive sign will be displayed on the device |
| During charging, the indicator keeps constant state under normal charging. For mobile phones with self charging saturation signal |
| (for example: Samsung, Huawei, Xiaomi, etc., note that Apple mobile phone does not have this function). When the device is fully charged, the LED light will automatically turn off. |
| 4. Table lamp touch button usage |
| Power button, short press to turn on and turn off the lamp |
| V button, long press to lower the lamp brightness |
| Press and hold button a to increase the brightness of table lamp |
| O key, short press to adjust the color temperature, a total of 4 levels of color temperature adjustable |
| 5. How to use table lamp voice control |
| Hello Xiaoming: I’m here |
| Turn on the light:okey |
| Turn off the light: okey |
| Lights brighter:okey |
| Lights dimmer:okey |
| Lights brightest:okey |
| Lights dimmest: okey |
| Reading mode: okey |
| Input: | QC2.0&QC3.0, 5V/3A, 9V/2A |
| Output: | LED desk lamp power 5W |
| Wireless charging power 10W | |
| Performance parameter | |
| a. LED desk lamp | |
| Input voltage: | 5V/9V self-adaption |
| Maximum power: | 5W |
| 48 pieces of 4014 LED | |
| Central illumination: | 500LUX |
| Luminous flux: | 400LM |
| Color temperature: | 2800k 4500k 5600k 6500k |
| Life: | 50000 |
| b. 10W wireless charging | |
| Input voltage: | 5V/9V self-adaption |
| Wireless charging output | 10W/7.5W/5W |
| Protection function: | Over current protection, over temperature protection, FOD metal foreign matter protection |
| Transmission distance | ≤8mm |
| Charging efficiency | ≥76% |
| c. Voice control parameters | |
| Mic pickup distance: | 6m |
| Power of answering horn: | 0.35W |
| Power of answering horn:Scope of application: living room, bedroom, study |

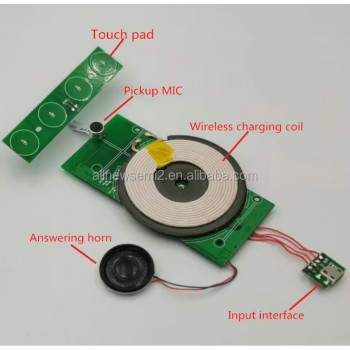

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
