One-Stop Supply Five coil 10W fast charging Wireless charging module wireless charging PCBA [PCBA customization] chip Components

Manufacturer
Original
Manufacturer Product Number
ATM10W-WCB5-FR
Description

Five coil 10W fast charging Wireless charging module wireless charging PCBA [PCBA customization]

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Five coil 10W fast charging Wireless charging module wireless charging PCBA [PCBA customization](Accept customization)



Parameter specification

1. Input interface:Port C type

2. Input voltage:QC2.0/3.0-9V/5V

3. Wireless charging output: 10W/7.5W/5W

4.5 coil, wide charging range, fast charging of two mobile phones at the same time

5. Working frequency:110~205K

6. Working distance:0~10mm

7. Typical charging efficiency:80%@10W

8. Standby power consumption: 0.2W

9. Protection function:Over voltage, over current, over temperature protection, foreign matter detection function

This product is a standard Qi wireless fast charging transmitter. It uses five standard a11 coils to charge in an ultra wide range and supports dual charging.

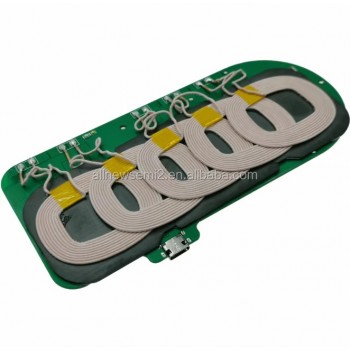

Actual image of the product






​



About us

Special price supply of AC-DC flash charging USB charging head scheme a + C port 18W high power PD fast charging module

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

 Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

Universal QI7.5/10w can be customized Fast wireless charger module Use for TX Pad

How to get a custom type wireless charging and transmitting module quote:

1.What machine to use
2. Input voltage + current
3. Output voltage + current
4. Shape + size requirements
5. Coil requirements (1 coil? 2 coils? 3 coils or ..?)
6. Plug / Welding wire Detailed requirements
7. Quantity
8. Certification requirements
9. Other requirements



This is a customized product, please contact us for price and more details.
