Original AD8220ARMZ IC INST AMP 1 CIRCUIT 8MSOP Instrumentation Amplifier 1 Circuit Rail-to-Rail 8-MSOP
Manufacturer
Manufacturer Product Number
AD8220ARMZ
Description
Original AD8220ARMZ IC INST AMP 1 CIRCUIT 8MSOP Instrumentation Amplifier 1 Circuit Rail-to-Rail 8-MSOP
Package Condition
Tube
Datasheet
Product Description
Product Description: AD8220ARMZ - Instrumentation Amplifier
The AD8220ARMZ is a precision instrumentation amplifier from Analog Devices Inc., designed to provide high-performance signal conditioning for a wide range of applications. This 8-pin, surface-mountable amplifier is ideal for use in precision measurement, test and measurement, and industrial control systems.
Product Features
High common-mode rejection ratio (100 dB)
Low input bias current (25 pA)
Low input offset voltage (125 μV)
Rail-to-rail output
Gain bandwidth product of 1.5 MHz
Slew rate of 2 V/μs
Operating temperature range of -40°C to 85°C
Supply voltage range of 4.5 V to 36 V (±2.25 V to 18 V)
Product Applications
Precision measurement systems
Test and measurement equipment
Industrial control systems
Medical equipment
Automotive systems
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - AD8220ARMZ |
|
Category |
Integrated Circuits (ICs) Linear Amplifiers Instrumentation, Op Amps, Buffer Amps |
|
Mfr |
ADI |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Amplifier Type |
Instrumentation |
|
Number of Circuits |
1 |
|
Output Type |
Rail-to-Rail |
|
Slew Rate |
2V/µs |
|
-3db Bandwidth |
1.5 MHz |
|
Current - Input Bias |
25 pA |
|
Voltage - Input Offset |
250 µV |
|
Current - Supply |
750µA |
|
Current - Output / Channel |
15 mA |
|
Voltage - Supply Span (Min) |
4.5 V |
|
Voltage - Supply Span (Max) |
36 V |
|
Operating Temperature |
-40°C ~ 85°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
Supplier Device Package |
8-MSOP |
|
Base Product Number |
AD8220 |

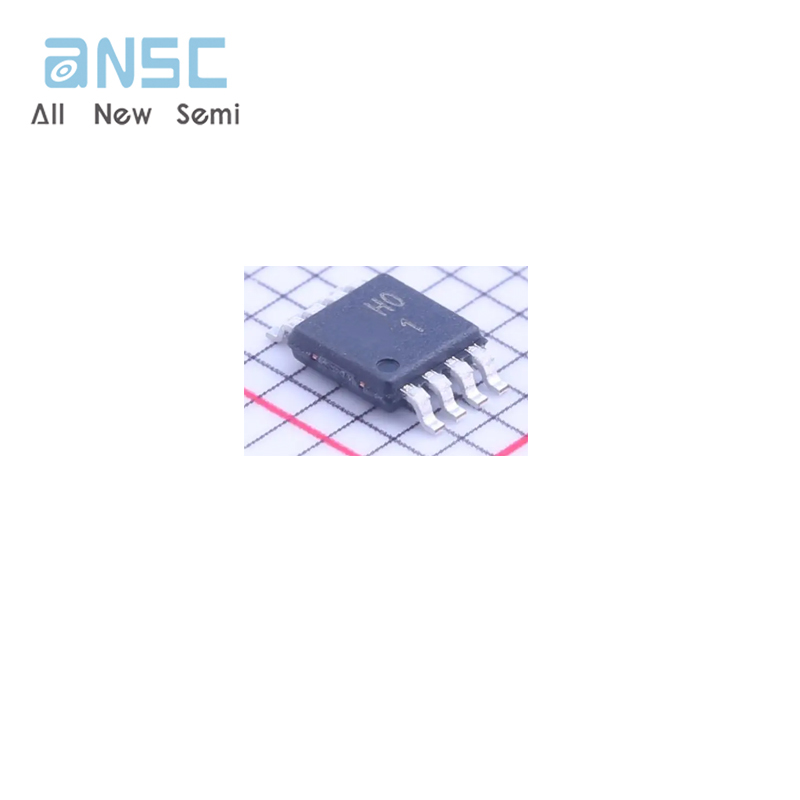

Actual image of the product

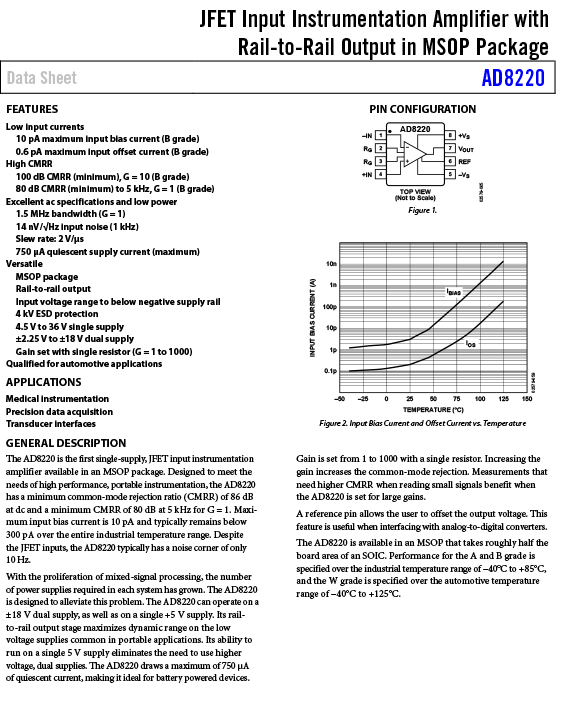

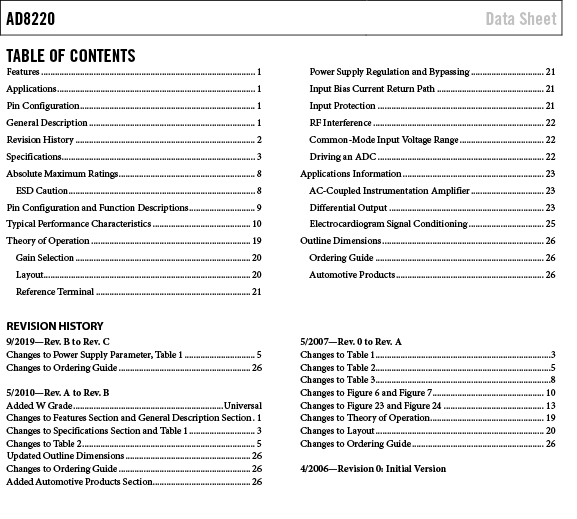

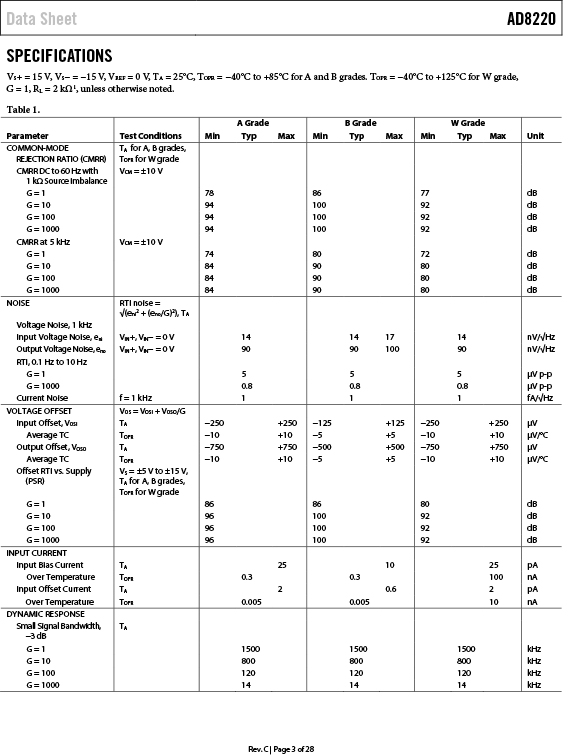

Product datasheet
For more information, please download
