Hot sale Original TPA3112D1 IC 25-W FILTER-FREE MONO CLASS-D AUDIO POWER AMPLIFIER

Manufacturer Product Number

TPA3112D1

Description

TPA3112D1 IC 25-W FILTER-FREE MONO CLASS-D AUDIO POWER AMPLIFIER with SPEAKER GUARD?

Package Condition

Tape & Reel (TR)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

1 Features
1• 25-W into an 8-Ω Load at < 0.1THD+N From a
24-V Supply
• 20-W into an 4-Ω Load at 10 THD+N From a
12-V Supply
• 94 Efficient Class-D Operation into 8-Ω Load
Eliminates Need for Heat Sinks
• Wide Supply Voltage Range Allows Operation
from 8 to 26 V
• Filter-Free Operation
• SpeakerGuard™ Speaker Protection Includes
Adjustable Power Limiter plus DC Protection
• Flow Through Pin Out Facilitates Easy Board
Layout
• Robust Pin-to-Pin Short Circuit Protection and
Thermal Protection with Auto-Recovery Option
• Excellent THD+N/ Pop Free Performance
• Four Selectable, Fixed Gain Settings
• Differential Inputs

2 Applications
• Televisions
• Consumer Audio Equipment

3 Description
The TPA3112D1 is a 25-W efficient, Class-D audio
power amplifier for driving a bridge tied speaker.
Advanced EMI Suppression Technology enables the
use of inexpensive ferrite bead filters at the outputs
while meeting EMC requirements. SpeakerGuard
speaker protection system includes an adjustable
power limiter and a DC detection circuit. The
adjustable power limiter allows the user to set a
virtual voltage rail lower than the chip supply to limit
the amount of current through the speaker. The DC
detect circuit measures the frequency and amplitude
of the PWM signal and shuts off the output stage if
the input capacitors are damaged or shorts exist on
the inputs.
The TPA3112D1 can drive a mono speaker as low as
4Ω. The high efficiency of the TPA3112D1, > 90,
eliminates the need for an external heat sink when
playing music.
The outputs are fully protected against shorts to
GND, VCC, and output-to-output. The short-circuit
protection and thermal protection includes an autorecovery
feature.

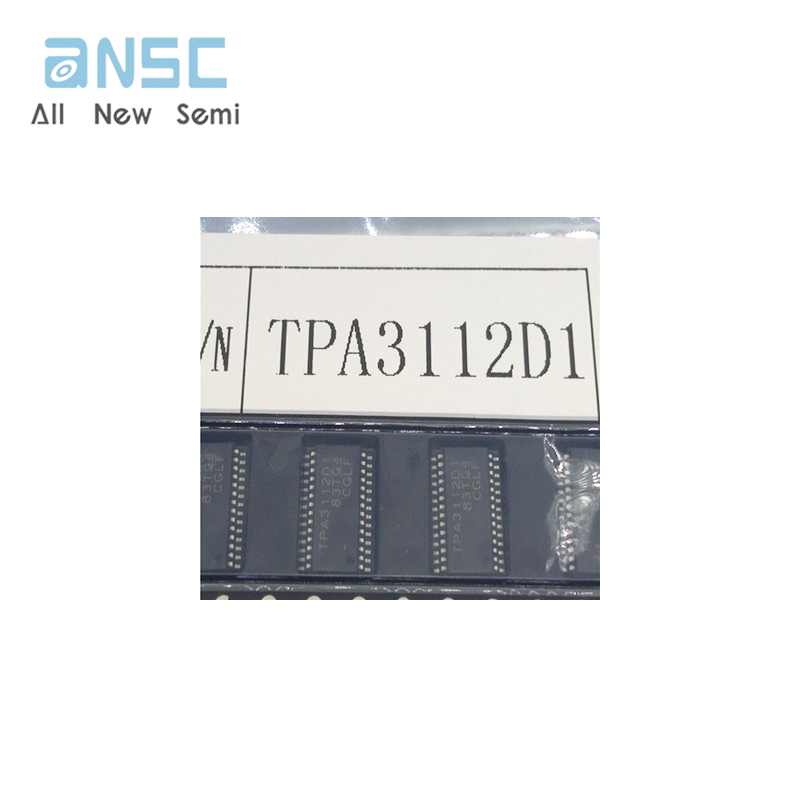

Actual image of the product
