Original sales spot supply CS9236-CQ SINGLE-CHIP WAVETABLE MUSIC SYNTHESIZER QFP

Product Details

The CS9236 is a complete General MlDl wavetable mu-sic synthesizer on a single integrated circuit. The MIDI interpreter, synthesis engine, effects processing, and all RAM and ROM memories (including the wavetable sam-ple ROM) are included on-chip. This all-digital device receives a standard serial MlDI data stream, and outputs a stereo 16-bit digital audio stream at 44.1kHz. TheCS9236 digital audio output is directly compatible with the Crystal CS4236B/37B/38B multimedia CODECs and with the CS4333 DAC.

The CS9236 features a high quality General MIDI sam-ple set including 128 melodic instruments and 47percussion sounds. The synthesis engine is capable of generating up to 32 simultaneous notes. Digital rever-beration and chorusing effects are included on-chip.

The CS9236 is the ideal low-cost General MIDI synthe-sizer solution for a number of applications, includingmultimedia PCs, game machines, karaoke, and low-costmusical instruments and MIDI sound modules.

Products Features

•Single low-cost device includes MIDIcontroller, synthesis engine, effectsprocessing, RAM, and sample ROM•General MIDI(GM) compliant

•32-note polyphony at 44.1kHz rate

•Independent reverb and chorus levelsfor each MIDI channel

•+3.3V supply, +5V tolerant inputs

•Fully static power-down capability

•Simple to design in - Serial MIDI in,Stereo digital audio out

•Digital audio output directly lnterfaceswith the CS4236B/37B/38B andCS4333

Specifications

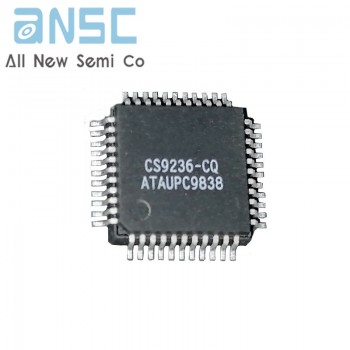

Actual product photos
