Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original TAJF107M016RNJ Capacitor 100uF Molded Tantalum Capacitor 16 V 2312(6032 Metric) 400mOhm Molded General Purpose
Manufacturer Product Number
TAJF107M016RNJ
Description
Original TAJF107M016RNJ Tantalum Capacitor 100uF Molded Tantalum Capacitors 16 V 2312(6032 Metric) 400mOhm Molded General Purpose
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| TAJF107M016RNJ Overview As a result of the loss of useful energy in a simple circuit with a resistor and an ideal (perfect) capacitor, equivalent series resistance (ESR) is known as internal resistance.Currently, this capacitor is leakage current 16μA.A capacitor's dissipation factor determines how much power is lost when AC is applied through it, and its dissipation factor is 10 %.The Tan Delta is a dielectric test on the insulating oil to determine its quality, and it is 0.1. TAJF107M016RNJ Featuresa leakage current of 16μA in this capacitor the dissipation factor is 10 % its tan delta is 0.1 TAJF107M016RNJ Applications TAJF107M016RNJ applications of tantalum capacitors. Computer General purpose General low power DC/DC and LDO Automotive ECU ABS Airbag systems Avionics, Industrial control units Military / aerospace General purpose |
Product Description
| Type | Description |
| ANSC PART# | ANSC - TAJF107M016RNJ |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr | Original |
| Series | TAJ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 400mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Lead Spacing | - |
| Manufacturer Size Code | F |
| Features | General Purpose |
| Failure Rate | - |

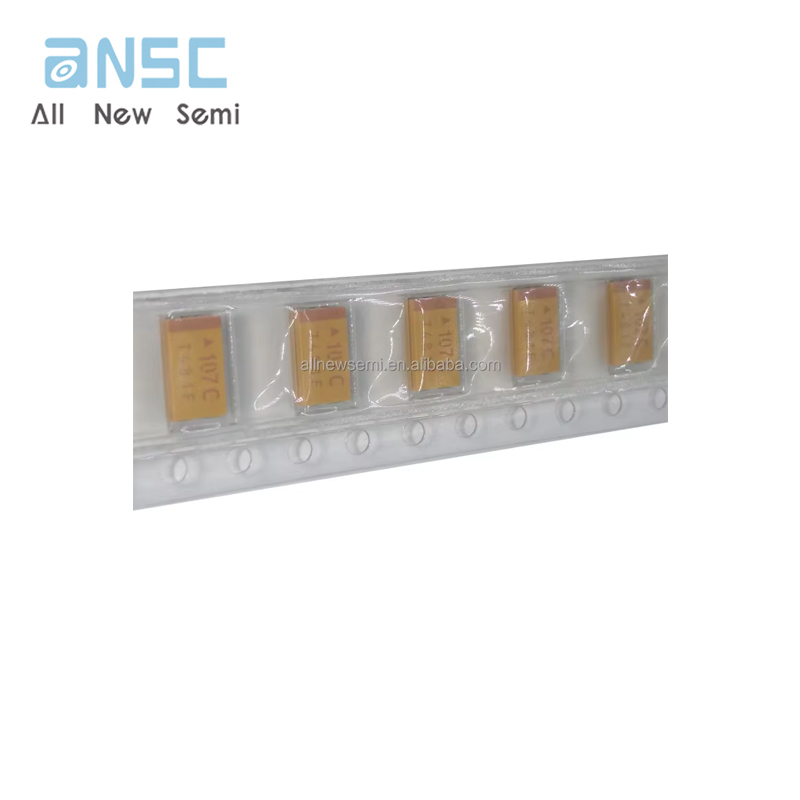

Actual image of the product

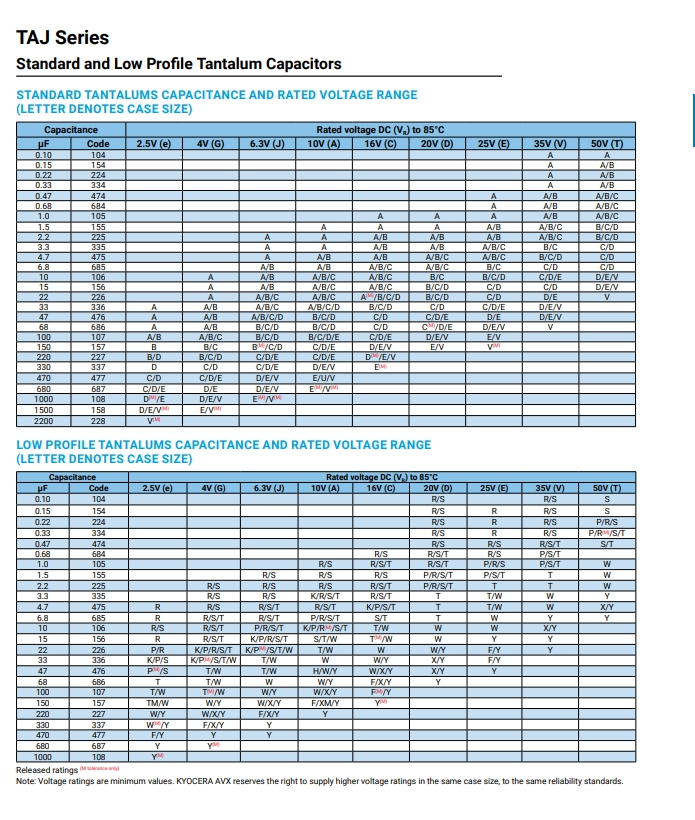

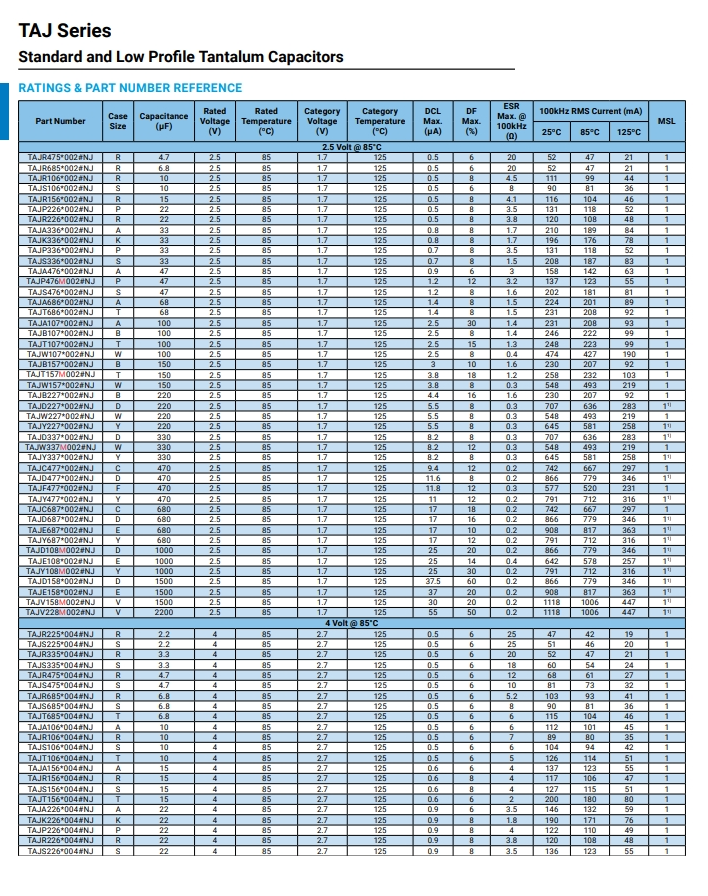

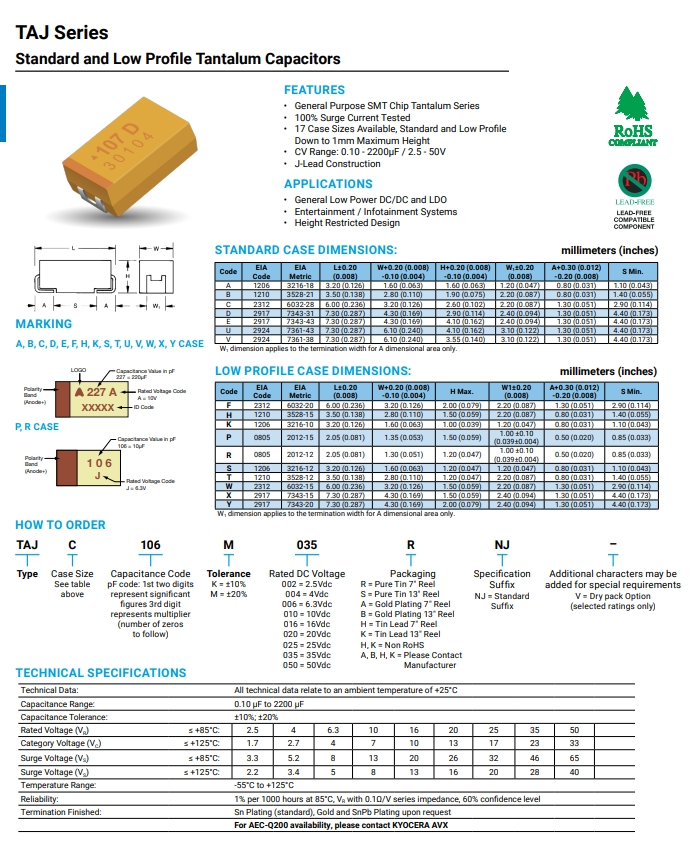

Product datasheet
For more information, please download
