Hot sale original T520B337M2R5ATE018 330 µF Molded Tantalum Polymer Capacitor 2.5 V 1411 (3528 Metric) 18mOhm @ 100kHz

Product Details

Description

The T520B337M2R5ATE018 is a high-performance, surface-mount tantalum polymer capacitor designed for general-purpose applications. This capacitor offers excellent capacitance, low equivalent series resistance (ESR), and a robust construction that ensures reliable operation over a wide temperature range.

Features

• High Capacitance: With a capacitance of 330 μF, this capacitor provides significant storage capacity for filtering and decoupling applications.

• Low ESR: The ESR of 18 mOhm at 100 kHz ensures efficient energy transfer and minimal power loss.

• Operating Temperature: The operating temperature range of -55°C to 105°C makes it suitable for various industrial and automotive applications.

• Pb-Free and RoHS3 Compliant: The use of matte tin (Sn) terminal finish and compliance with ROHS3 standards ensures environmental sustainability.

• Surface Mount Design: The compact size (0.138L x 0.110W, 3.50mm x 2.80mm) and surface mount capability facilitate easy integration into modern electronic circuits.

Applications

Primary Applications:

1. Filtering and Decoupling: The high capacitance and low ESR make this capacitor ideal for filtering and decoupling applications in power supplies, audio equipment, and other electronic devices.

2. Power Supply Regulation: Its ability to handle ripple currents up to 675 mA makes it suitable for use in power supply regulation circuits.

Secondary Applications:

1. Audio Equipment: The capacitor's high capacitance and low ESR make it useful in audio equipment for filtering out unwanted frequencies.

2. Industrial Control Systems: Its robust construction and wide operating temperature range make it suitable for use in industrial control systems where reliability is crucial.

Product Description

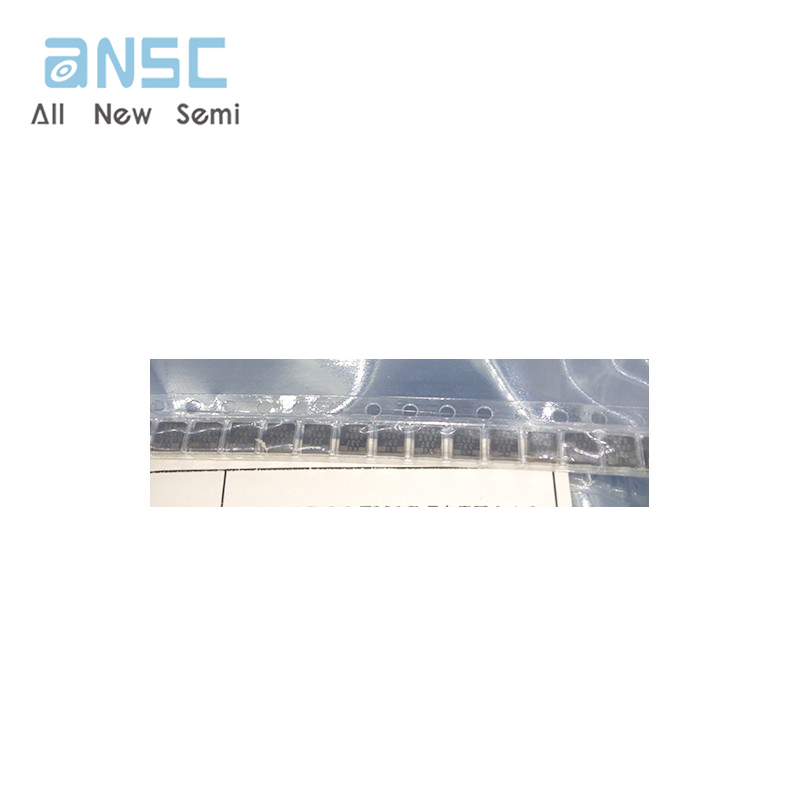

Actual image of the product

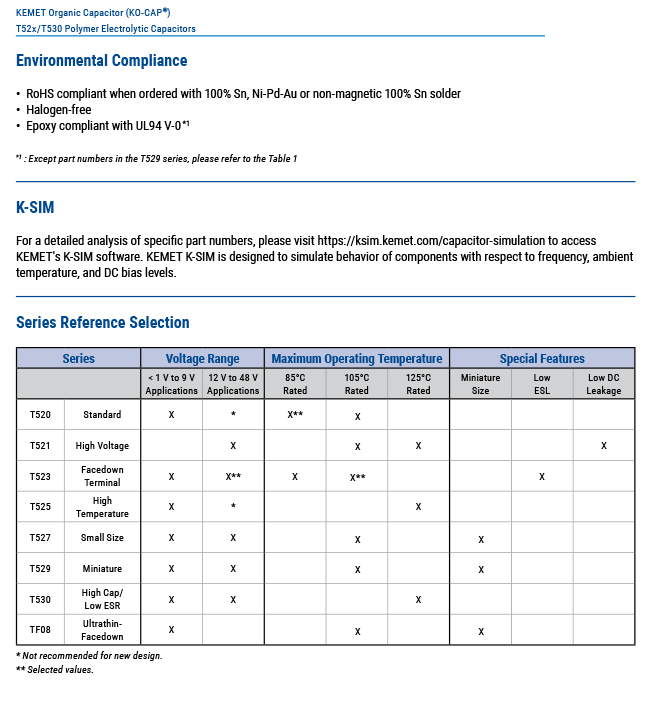

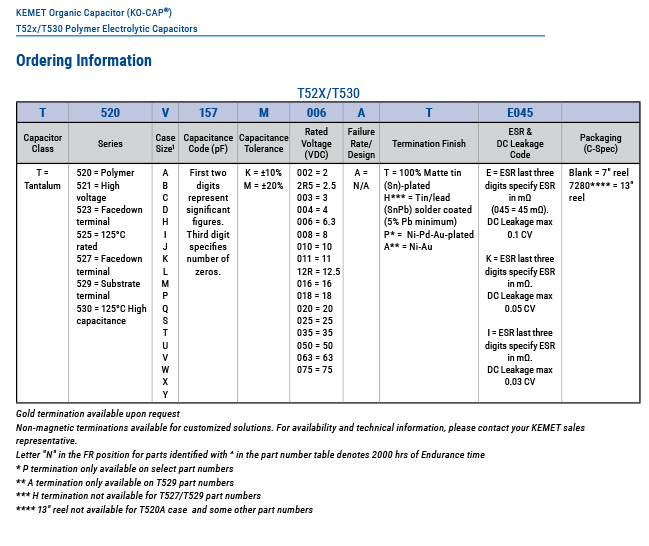

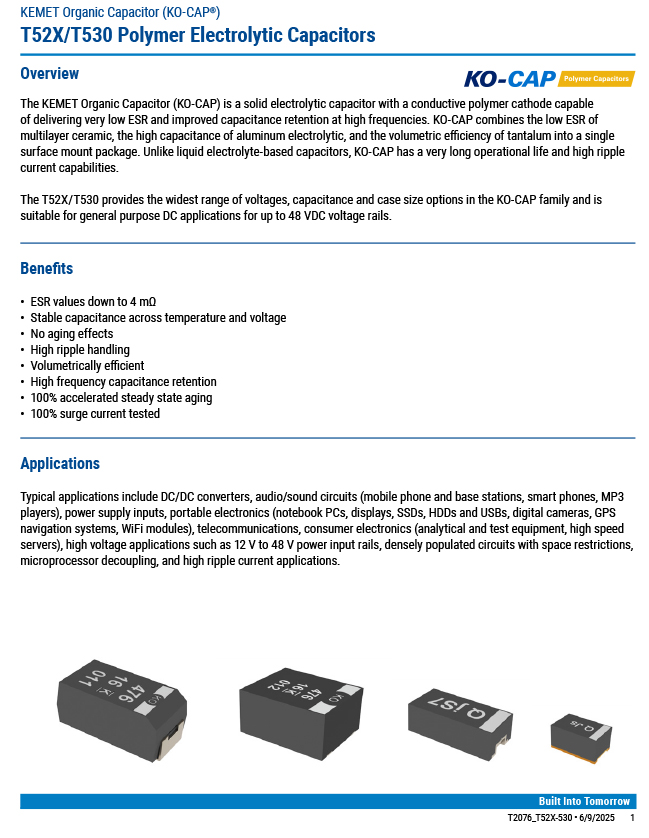

Product datasheet

For more information, please download

​
