Hot sale Original C1210C225M1RACTU CAP CER 2.2UF 100V X7R 1210 2.2 µF ±20% 100V Ceramic Capacitor X7R

Manufacturer Product Number

C1210C225M1RACTU

Description

C1210C225M1RACTU CAP CER 2.2UF 100V X7R 1210 2.2 µF ±20% 100V Ceramic Capacitor X7R 1210 (3225 Metric)

Package Condition

Original

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Electrical Parameters
As detailed in the Surface Mount Catalog F3102 for X7R,with the following specific requirements based on room temperature (25°C) parameters:
· Operating Range: -55°C to +125°C, with no-bias capacitance shift limited to the ± 15% over that range.
· Insulating Resistance (IR) measured after 2 minutes at rated voltage @25°C: Limit is 500 megohm microfarads or 10,000MW, whichever of the two is smaller.
· Capacitance and Dissipation Factor (DF) are measured under the following conditions:
1kHz and 1 Vrms if capacitance * 10µF
120Hz and 0.5 Vrms if capacitance $ 10µF
· DF limits:
50 -200 Volts ü 2.5%
16 -25 Volts ü 3.5%
6.3 / 10 Volts ü 5.0%

Soldering Process
All parts incorporate the standard barrier layer of pure nickel, with an overplate of pure tin to provide excellent solderability as well as resistance to leaching. The recommended mounting techniques are as follows:
· 0402 / 1210 case sizes ü Solder Reflow
· 0603 / 0805 / 1206 case sizes ü Solder Wave / Solder Reflow

Product Description

Type#	Description
ANSC PART#	ANSC -C1210C225M1RACTU
Category	Capacitors
Category	Ceramic Capacitors
Mfr	/
Series	SMD Comm X7R
Packaging	Tape & Reel (TR)
	Cut Tape (CT)
	/
Part Status	Active
Capacitance	2.2 µF
Tolerance	±20%
Voltage - Rated	100V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	-
Ratings	-
Applications	Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.087" (2.20mm)
Lead Spacing	-
Lead Style	-
Base Product Number	C1210C

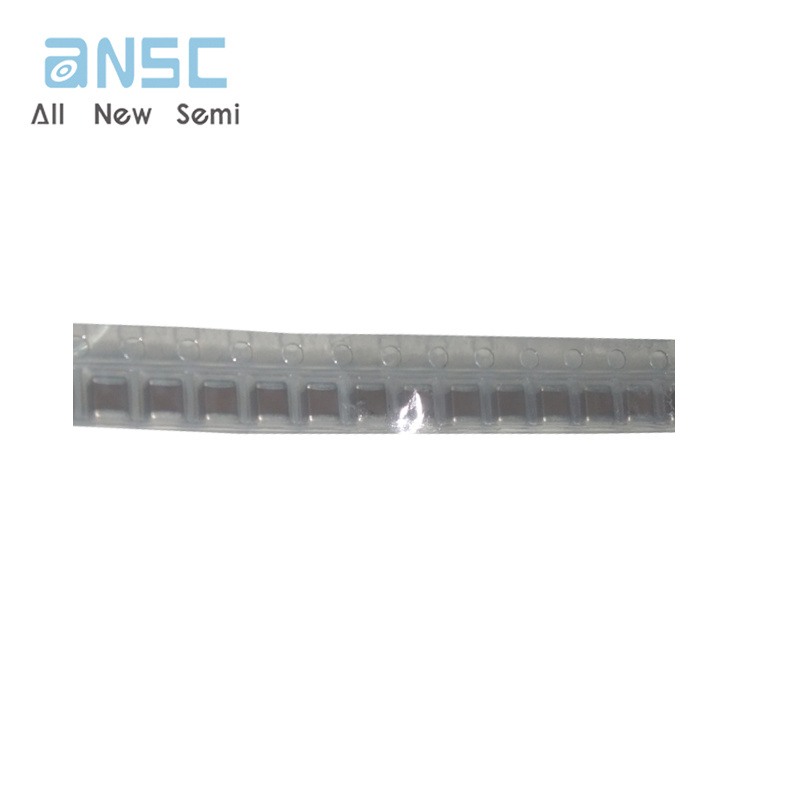

Product Photos

C1210C225M1RACTU

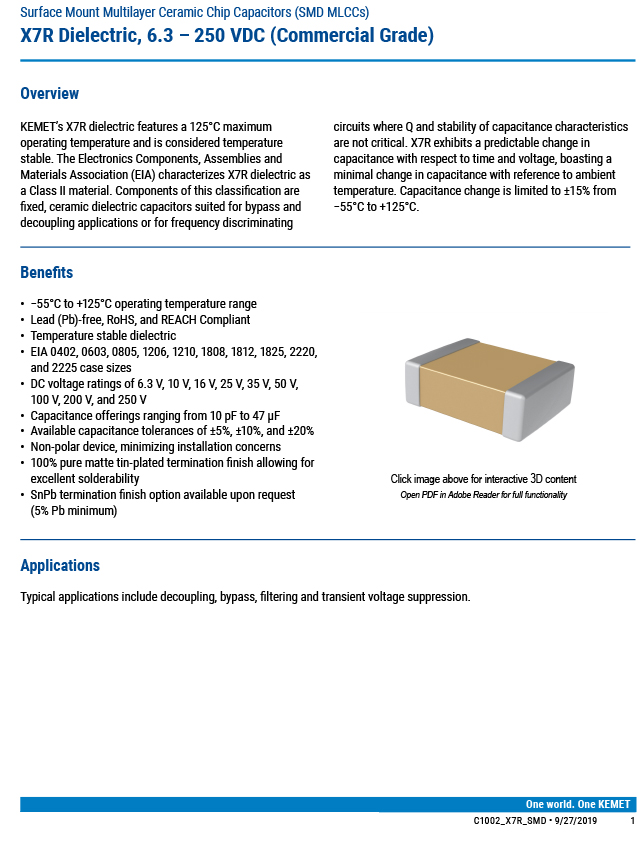

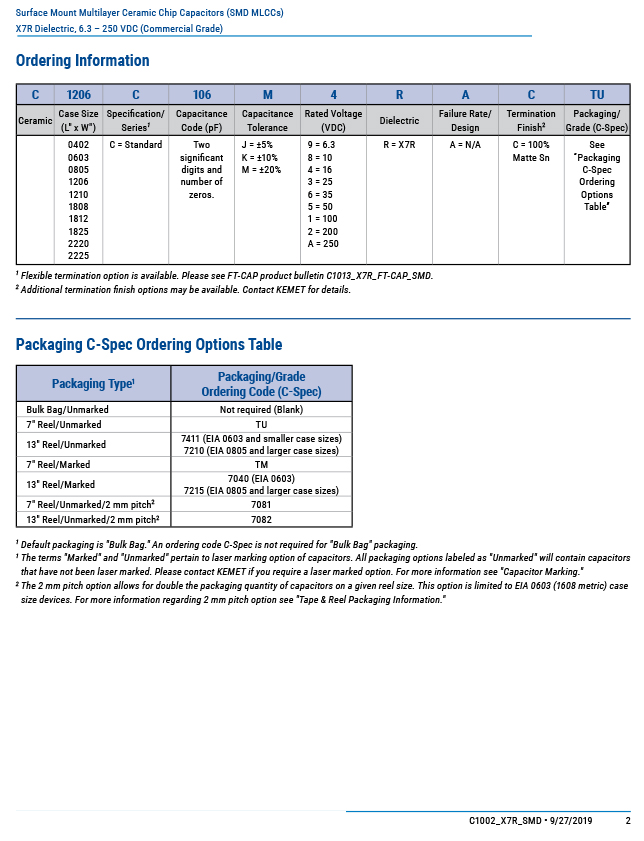

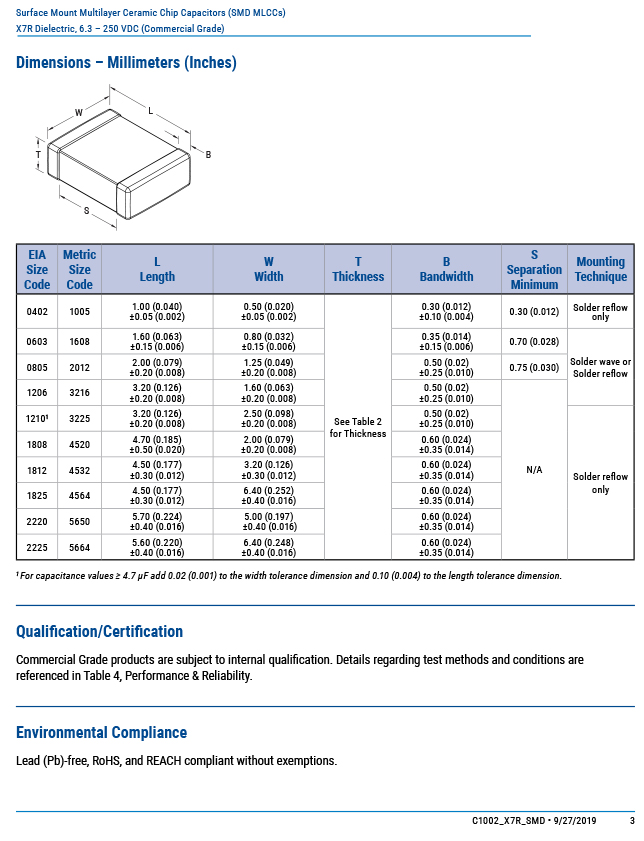

Product datasheet

For more information, please download
