You can contact me for the best price BOM distribution service electronic components EEE-FT1V331AP Aluminum Lytic 330uF 35V 20%
Manufacturer Product Number
EEE-FT1V331AP
Description
Aluminum Electrolytic Capacitors EEE-FT1V331AP
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Surface Mount Type Series: FK Type: V ■ Features ● Endurance: 2000 h to 5000 h at 105 °C ● Low impedance (40 % to 60 % less than FC series) Miniaturized (30 % to 50 % less than FC series) ● Vibration-proof product is available upon request. (ø8 mm and larger) ● AEC-Q200 qualified✽ ● RoHS directive compliant |
Product Description
| Type | Description |
| Part# | EEE-FT1V331AP |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | Original |
| Series | FT |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 552.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | EEE-FT |

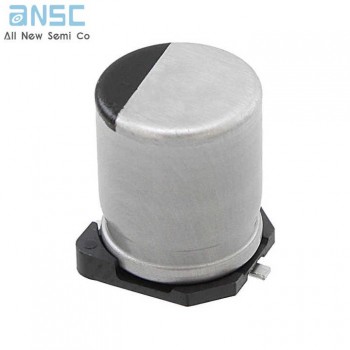

Actual image of the product
