Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original AFK226M2AF24VT-F Capacitor CAP ALUM 22UF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.3Ohm
Manufacturer
Manufacturer Product Number
AFK226M2AF24VT-F
Description
Original AFK226M2AF24VT-F Capacitor CAP ALUM 22UF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.3Ohm @ 100kHz 2000 Hrs @ 105°C
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
Product Description: AFK226M2AF24VT-F Aluminum Electrolytic Capacitor
The AFK226M2AF24VT-F is a high-performance aluminum electrolytic capacitor. This surface mount capacitor is part of the AFK_V series, known for its reliability and efficiency in various electronic applications. With a capacitance of 22 μF, this capacitor is ideal for applications requiring stable voltage regulation and filtering.
Product Features
· Capacitance: 22 μF
· Capacitor Type: Aluminum Electrolytic Capacitor
· Dielectric Material: Aluminum (Wet)
· ESR (Equivalent Series Resistance): 1.3 Ohm @ 100 kHz
· Impedance: 1.3 Ohm
· Leakage Current: 0.022 mA
· Life (Hours): 5000 hours
· Lifetime @ Temp.: 2000 Hrs @ 105°C
· Mounting Type: Surface Mount
· Number of Terminations: 2
· Operating Temperature Range: -55°C to 105°C
· Package / Case: Radial, Can - SMD
· Packing Method: Tape & Reel (TR), 15 INCH
· Part Status: Active
· Pbfree Code: Yes
· Polarization: Polar
· Rated (DC) Voltage (URdc): 100V
· Ratings: AEC-Q200
· Ripple Current: 97.5 mA
· Ripple Current @ Low Frequency: 97.5 mA @ 120 Hz
· RoHS Status: ROHS3 Compliant
· Tan Delta: 0.07
· Terminal Finish: TIN/TIN BISMUTH
· Terminal Shape: FLAT
· Tolerance: ±20%
Product Applications
The AFK226M2AF24VT-F is primarily suited for:
1. Automotive Systems: Due to its high reliability and temperature stability, this capacitor is ideal for automotive applications where electrical noise and voltage fluctuations are common. 2. Bypass and Decoupling: Its low ESR and high ripple current make it suitable for bypass and decoupling applications in electronic circuits requiring efficient filtering.
Secondary applications include:
1. Power Supplies: For filtering and stabilizing power supplies in various electronic devices. 2. Audio Equipment: In audio equipment where stable voltage regulation is crucial.
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - AFK226M2AF24VT-F |
|
Category |
Capacitors Aluminum Electrolytic Capacitors |
|
Mfr |
/ |
|
Series |
AFK_V |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Capacitance |
22 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
100 V |
|
ESR (Equivalent Series Resistance) |
1.3Ohm @ 100kHz |
|
Lifetime @ Temp. |
2000 Hrs @ 105°C |
|
Operating Temperature |
-55°C ~ 105°C |
|
Polarization |
Polar |
|
Ratings |
AEC-Q200 |
|
Applications |
Automotive, Bypass, Decoupling |
|
Ripple Current @ Low Frequency |
97.5 mA @ 120 Hz |
|
Impedance |
1.3 Ohms |
|
Lead Spacing |
- |
|
Size / Dimension |
0.315" Dia (8.00mm) |
|
Height - Seated (Max) |
0.394" (10.00mm) |
|
Surface Mount Land Size |
0.327" L x 0.327" W (8.30mm x 8.30mm) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
Radial, Can - SMD |

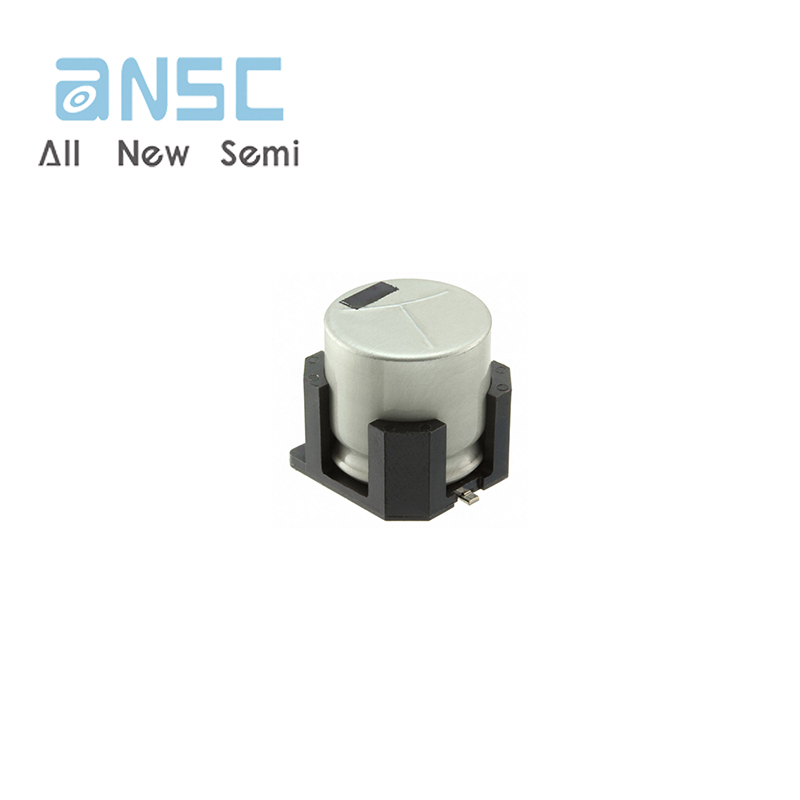

Actual image of the product

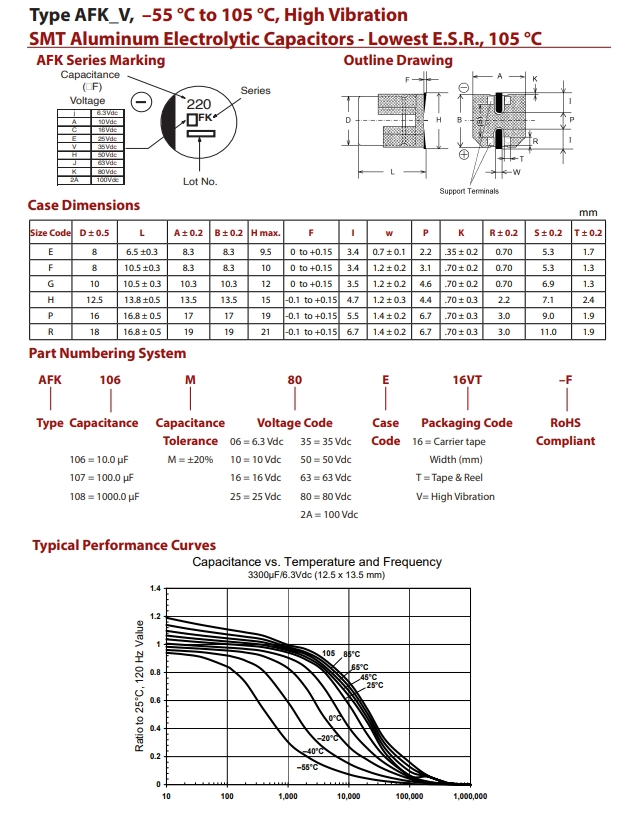

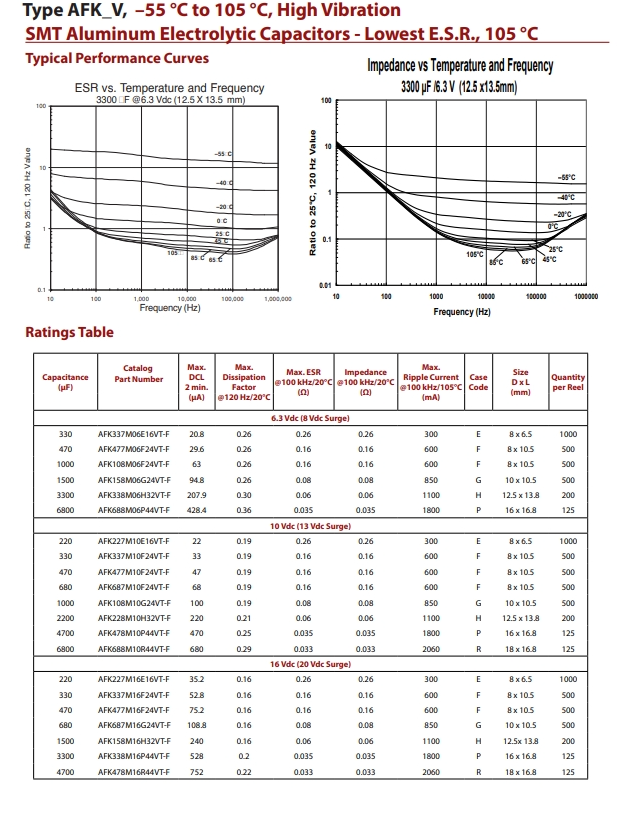

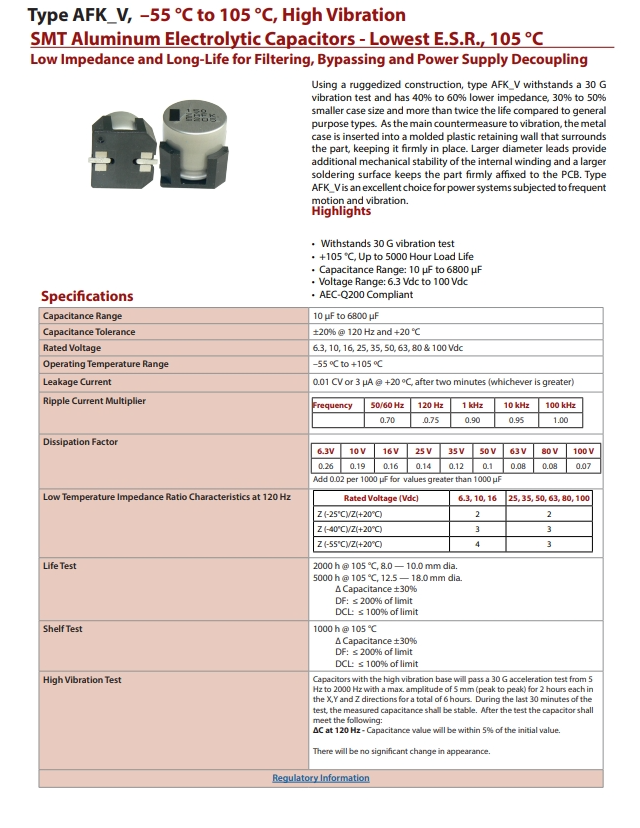

Product datasheet
For more information, please download
