Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original TPSE686M020R0150 Capacitor CAP TANT 20% 68UF Molded Tantalum Capacitors 20V 2917(7343 Metric) 150mOhm
Manufacturer
Manufacturer Product Number
TPSE686M020R0150
Description
Original TPSE686M020R0150 Capacitor CAP TANT 20% 68UF Molded Tantalum Capacitors 20V 2917(7343 Metric) 150mOhm
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Overview We set the ripple current of the capacitor to 420μA.In a simple circuit consisting of a resistor and a perfect capacitor, equivalent series resistance (ESR) determines the amount of valuable energy lost. All circuits with a resistor and a capacitor have 150mOhm as their resistance.This capacitor has a leakage current of 13.6μA.Dissipation factor is the amount of power lost by a capacitor when AC is applied through it, and this capacitor has dissipation factor 6 %.Insulating oil has a tan delta of 0.06 when it goes through an electric dielectric test to determine its quality. Product Features 420μA is the ripple current of the capacitor a leakage current of 13.6μA in this capacitor the dissipation factor is 6 % its tan delta is 0.06 Product ApplicationsTPSE686M020R0150 applications of tantalum capacitors. · Computer · General purpose · General low power DC/DC and LDO · Automotive ECU · ABS · Airbag systems · Avionics, · Industrial control units · Military / aerospace · General purpose |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - TPSE686M020R0150 |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr | / |
| Series | TPS |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 150mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.169" (4.30mm) |
| Lead Spacing | - |
| Manufacturer Size Code | E |
| Features | General Purpose |
| Failure Rate | - |

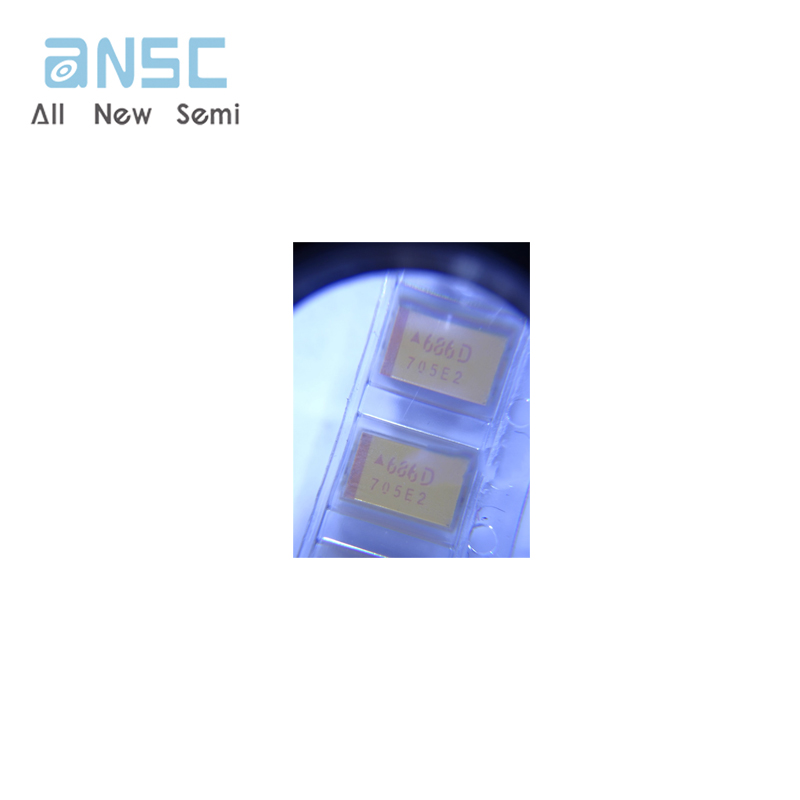

Actual image of the product

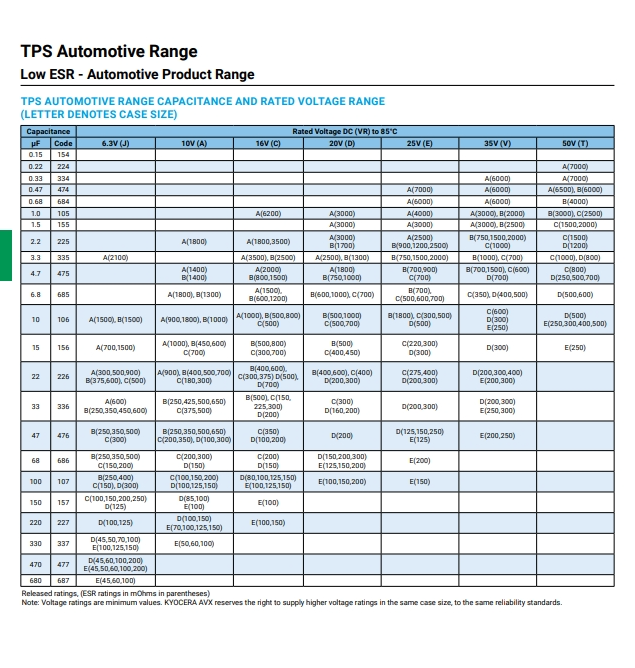

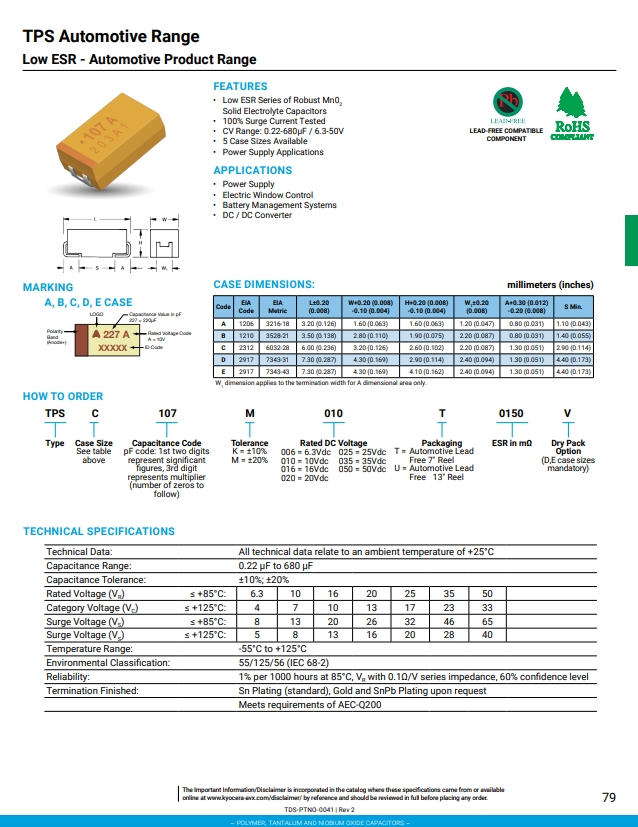

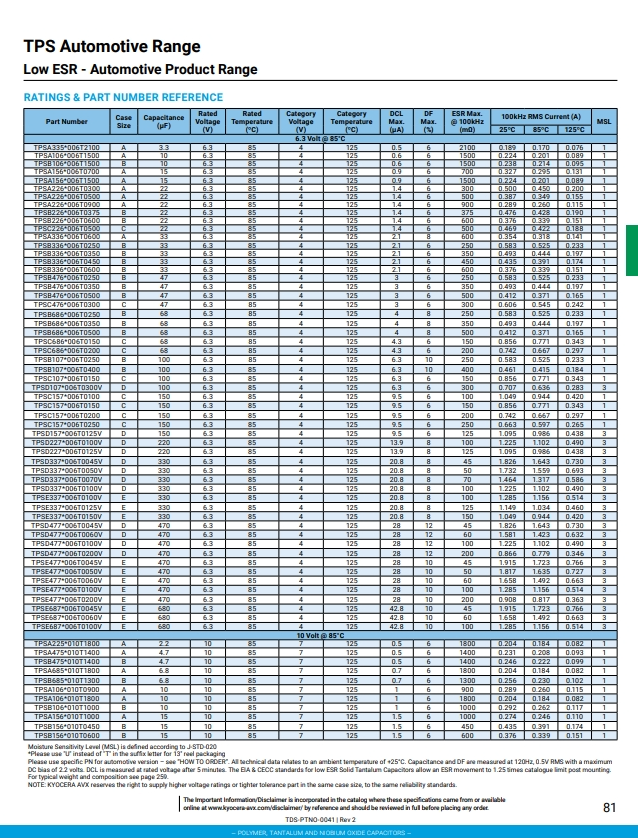

Product datasheet
For more information, please download
