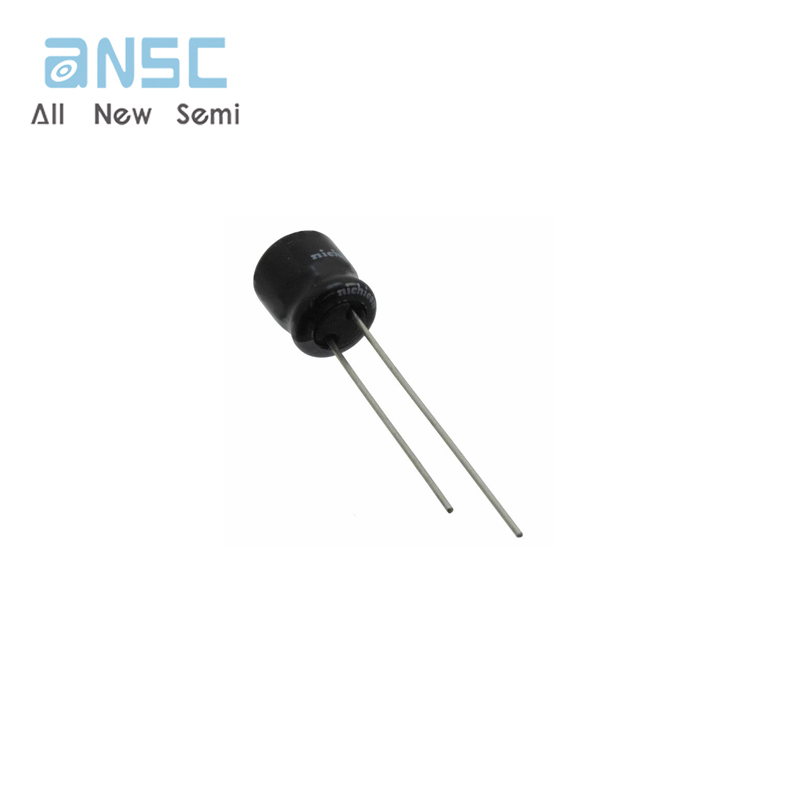

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original UST1E330MDD 33 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Manufacturer Product Number
UST1E330MDD
Description
UST1E330MDD Capacitors CAP ALUM 33UF 20% 25V RADIAL TH
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| UST1E330MDD Overview At full charge, the ripple current is 94.5mA @ 10kHz.The ripple current is 63mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.315 8.00mm.The capacitor operates at a voltage of 25V - Rated DC.For high efficiency, the operating temperature should be -55°C~105°C. UST1E330MDD Featuresthe ripple current is 94.5mA @ 10kHz. the ripple current is 63mA @ 120Hz. voltage - Rated DC of 25V an operating temperature of -55°C~105°C UST1E330MDD Applications There are a lot of Nichicon UST1E330MDD applications of aluminum electrolytic capacitors. Power supplies Computer motherboards Uninterruptible power supplies Frequency converters Computer Telecommunication Industrial systems Smoothing and filtering applications Standard and switched mode power supplies Energy storage in pulse systems |
Product Description
|
Type |
Description |
|---|---|
|
Category |
Capacitors Aluminum Electrolytic Capacitors |
|
Mfr |
- |
|
Series |
UST |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Capacitance |
33 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
25 V |
|
ESR (Equivalent Series Resistance) |
- |
|
Lifetime @ Temp. |
1000 Hrs @ 105°C |
|
Operating Temperature |
-55°C ~ 105°C |
|
Polarization |
Polar |
|
Ratings |
- |
|
Applications |
General Purpose |
|
Ripple Current @ Low Frequency |
63 mA @ 120 Hz |
|
Ripple Current @ High Frequency |
94.5 mA @ 10 kHz |
|
Lead Spacing |
0.098" (2.50mm) |
|
Size / Dimension |
0.248" Dia (6.30mm) |
|
Height - Seated (Max) |
0.315" (8.00mm) |
|
Surface Mount Land Size |
- |
|
Mounting Type |
Through Hole |
|
Package / Case |
Radial, Can |
