Professional supply Integrated circuit IC C2012X5R1A226K125AB 22µF ±10% 10V MULTILAYER CERAMIC CHIP CAPACITORS 0805 (2012Metric)
Manufacturer Product Number
C2012X5R1A226K125AB
Description
Cap Series 0805 22 uF 10 V ±10 % Tolerance X5R SMT Multilayer Ceramic Capacitor
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
■SERIES OVERVIEW
General type C series is a surface-mounted component, which multilayer dielectrics and inner electrodes are stacked alternately. The monolithic
structure ensures superior mechanical strength and high reliability. Also, outstanding frequency characteristics such as low ESR and low ESL are
provided owing to the simpler structure than other capacitors. The capacitance range is up to 100µF and the lineup has been expanding to a range of the film capacitor and electrolytic capacitor.
Product Features
• Superior mechanical strength and high reliability due to the monolithic structure
• Outstanding frequency characteristics such as low ESR and low ESL by the simple structure
• Low self-heating value and high resistance to ripple on account of the low ESR
• No polarity
Product Applications
• General electronic equipment
• Mobile devices
• Servers, PCs, tablets
• Power supply circuit
Specifications
|
Attribute |
Attribute value |
|
PART# |
C2012X5R1A226K125AB |
|
Category |
Capacitors |
|
Ceramic Capacitors |
|
|
Mfr |
/ |
|
Series |
C |
|
Package |
Tape & Reel (TR) |
|
Cut Tape (CT) |
|
|
/ |
|
|
Product Status |
Not For New Designs |
|
Capacitance |
22 µF |
|
Tolerance |
±10% |
|
Voltage - Rated |
10V |
|
Temperature Coefficient |
X5R |
|
Operating Temperature |
-55°C ~ 85°C |
|
Features |
Low ESL |
|
Ratings |
- |
|
Applications |
General Purpose |
|
Failure Rate |
- |
|
Mounting Type |
Surface Mount, MLCC |
|
Package / Case |
0805 (2012 Metric) |
|
Size / Dimension |
0.079" L x 0.049" W (2.00mm x 1.25mm) |
|
Height - Seated (Max) |
- |
|
Thickness (Max) |
0.057" (1.45mm) |
|
Lead Spacing |
- |
|
Lead Style |
- |

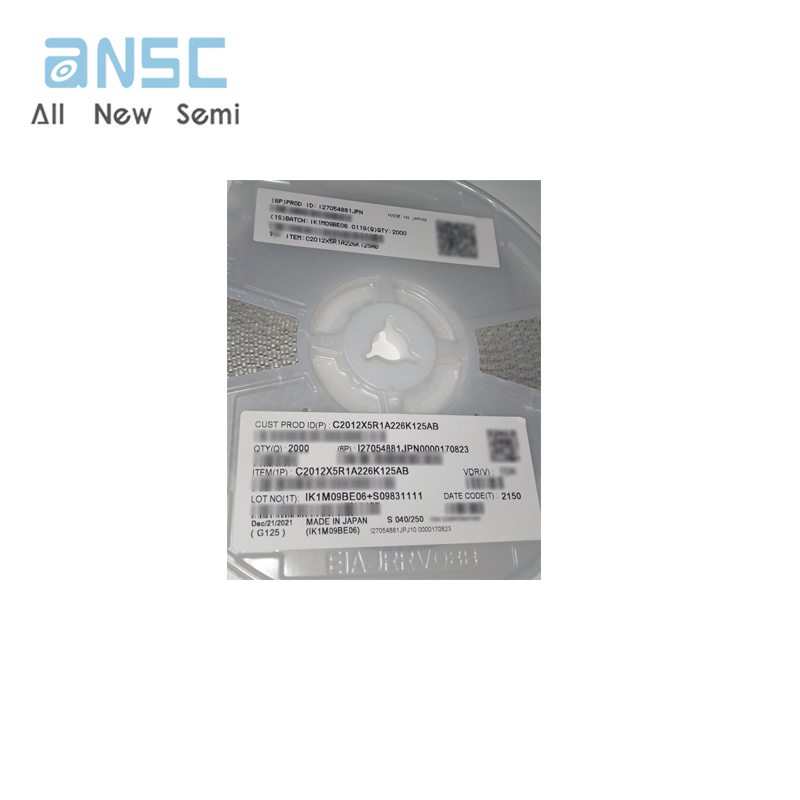

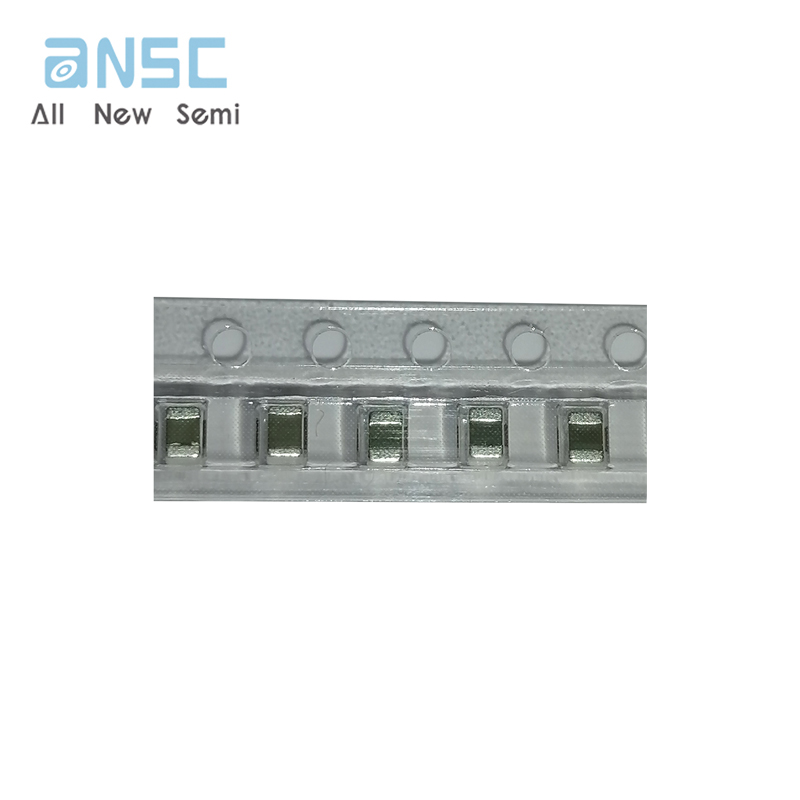

Actual image of the product
